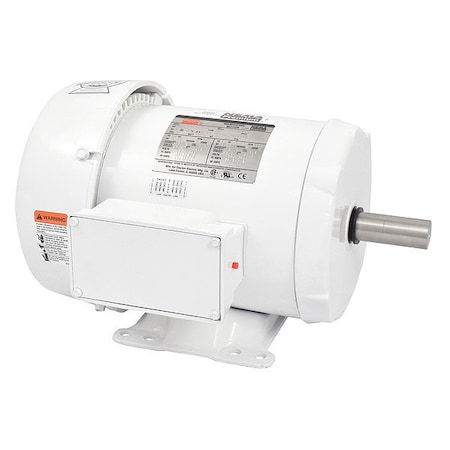

Washdown Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,755, Voltage 230/460V AC, Full Load Amps 12.5/6.2, 184T Frame, 60/50 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Epoxy Coated Rolled Steel

This motor was designed to be used in the food processing industry, as it can better protect its internal areas from moisture or debris it may be exposed to.<br /><br /> Item: Washdown Motor<br /> Motor Application: Washdown<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 5<br /> Nameplate RPM: 1755<br /> Frame: 184T<br /> NEMA Design: B<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 230/460<br /> Full Load Amps: 12.5/6.2<br /> Phase: 3<br /> Hz: 60/50<br /> Motor Mounting Position: All Angle<br /> Motor Mounting Type: Rigid Base<br /> Motor Bearings: Ball<br /> Motor Frame Material: Epoxy Coated Rolled Steel<br /> Motor Thermal Protection: None<br /> Motor Service Factor: 1.15<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 1-1/8"<br /> Shaft Length: 3"<br /> Motor Shaft Design: Keyed<br /> Body Dia.: 8-3/8"<br /> Length Less Shaft: 12-3/4"<br /> Overall Length: 15-3/4"<br /> Ins. Class: F<br /> RPM Range: 1701-1800<br /> Duty: Continuous<br /> Shaft Material: 303 Stainless Steel<br /> Conduit Box: Cast Aluminum with Buna-N Gasketed Cover<br /> Drain Plugs: (1) Shaft End, (1) Lead End, (2) In Conduit Box<br /> Endshields: Cast Aluminum<br /> Motor Efficiency Group: NEMA Premium Efficient<br /> Nominal Efficiency: 89.5%<br /> CC Number: CC030A<br /> Application: High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns<br /> Standards: UL Recognized (E47479), CSA Certified (258525), USDA Approved
