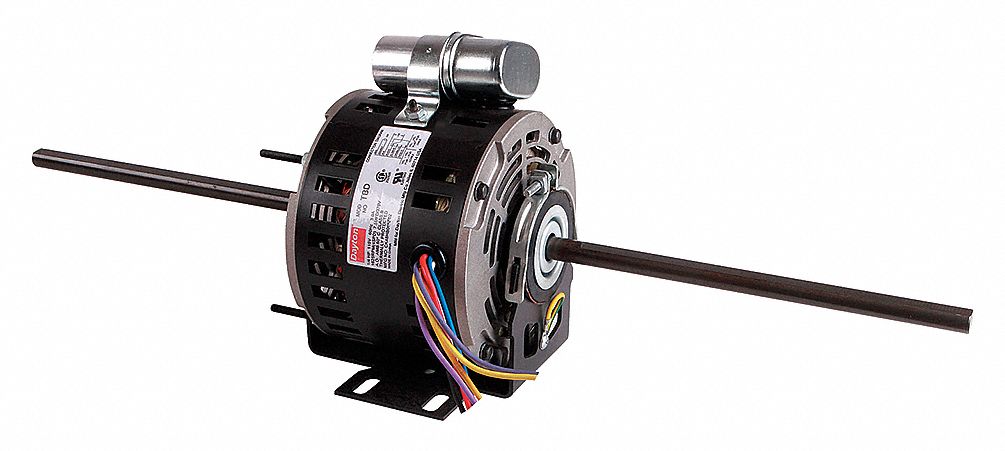

Permanent Split Capacitor Dual-Shaft Motors Enclosure: open air-over Service factor: 1.0 Rotation: CW/CCW Thermal protection: auto Bearings: sleeve Duty: continuous air-over Capacitor includedFor heating/air conditioning, fan coil units, furnace blowers, unit heaters, and other shaft-mounted fan and blower applications. Feature quick-change reversing plug.UL Recognized and CSA Certified.<br /><br /> Item: Room Air Conditioner Motor<br /> Motor Design: Permanent Split Capacitor<br /> HP: 1/10<br /> RPM Range: 1001-1100<br /> No. of Speeds: 4<br /> Voltage: 115<br /> Motor Shaft Rotation: CW/CCW<br /> Frame: 42Y<br /> Motor Enclosure Design: Open Air-Over<br /> Motor Mounting Type: Cradle Base<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 10"<br /> Motor Thermal Protection: Auto<br /> Nameplate RPM: 1075<br /> Phase: 1<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Room Air Conditioner<br /> Motor Bearings: Sleeve<br /> Capacitor Required: Yes<br /> Ins. Class: B<br /> Mounting Stud Pattern: 3-3/16" x 3-3/16"<br /> Motor Service Factor: 1.00<br /> Duty: Continuous<br /> Hz: 60<br /> Full Load Amps: 1.7<br /> Max. Ambient Temp.: 60 Degrees C<br /> Body Dia.: 5"<br /> Length Less Shaft: 5-3/8"<br /> Motor Shaft Design: Flat<br /> Stud Size: 8-32 UNC<br /> Ring to Ring Center: 5"<br /> Resilient Ring Dia.: 2-1/2"<br /> Bolt Circle Dia.: 4-11/16"<br /> Lead Length: 59"<br /> Includes: 5 MFD 370VAC Capacitor<br /> Standards: UL Recognized (E37403), CSA Certified (244617)

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 HP, Nameplate RPM 1,075, No. of Speeds 4, Voltage 115V AC, Full Load Amps 1.70, 42Y Frame, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 60 Degrees C, Duty Cycle Continuous, Lead Length 60 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal
