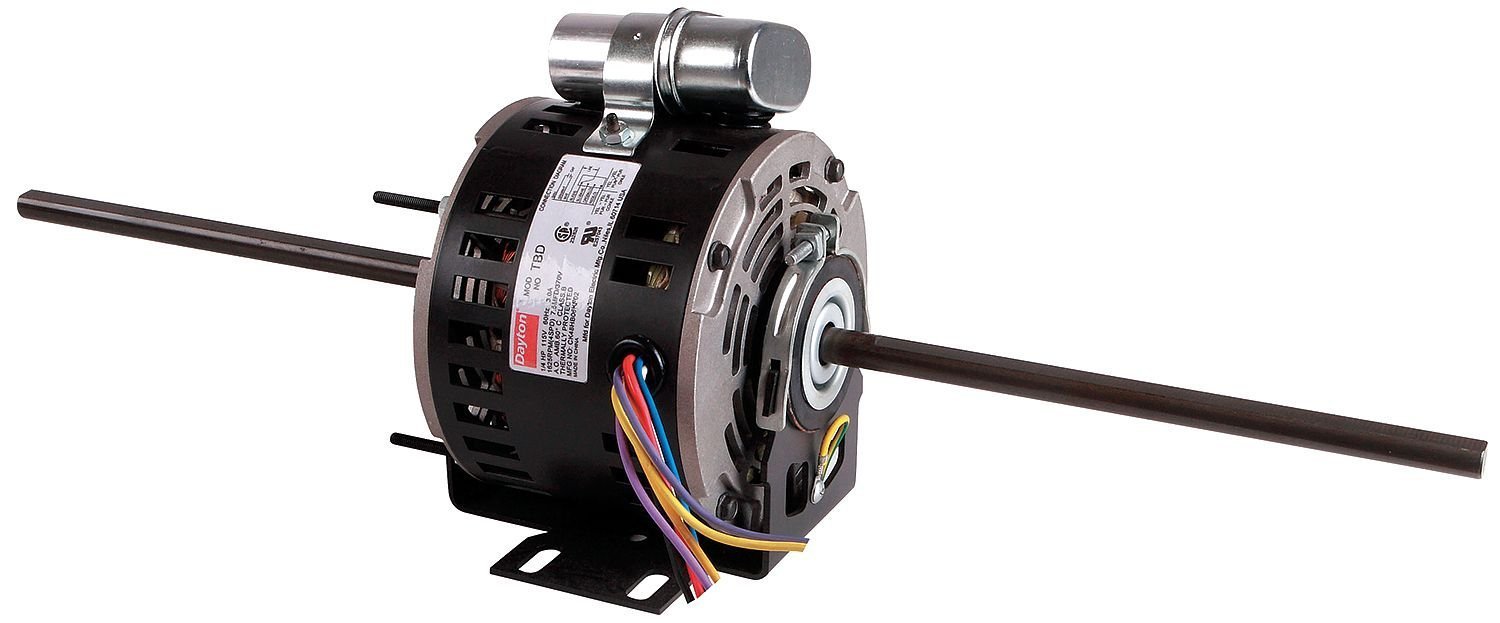

Permanent Split Capacitor Dual-Shaft Motors Enclosure: open air-over Service factor: 1.0 Rotation: CW/CCW Thermal protection: auto Bearings: sleeve Duty: continuous air-over Capacitor includedFor heating/air conditioning, fan coil units, furnace blowers, unit heaters, and other shaft-mounted fan and blower applications. Feature quick-change reversing plug.UL Recognized and CSA Certified.<br /><br /> Item: Room Air Conditioner Motor<br /> Motor Design: Permanent Split Capacitor<br /> HP: 1/15<br /> RPM Range: 1001-1100<br /> No. of Speeds: 4<br /> Voltage: 115<br /> Motor Shaft Rotation: CW/CCW<br /> Frame: 42Y<br /> Motor Enclosure Design: Open Air-Over<br /> Motor Mounting Type: Cradle Base<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 10-1/2"<br /> Motor Thermal Protection: Auto<br /> Nameplate RPM: 1050<br /> Phase: 1<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Room Air Conditioner<br /> Motor Bearings: Sleeve<br /> Capacitor Required: Yes<br /> Ins. Class: B<br /> Mounting Stud Pattern: 3-3/16" x 3-3/16"<br /> Motor Service Factor: 1.00<br /> Duty: Continuous<br /> Hz: 60<br /> Full Load Amps: 1.4<br /> Max. Ambient Temp.: 60 Degrees C<br /> Body Dia.: 5"<br /> Length Less Shaft: 5-5/32"<br /> Motor Shaft Design: Flat<br /> Stud Size: 8-32 UNC<br /> Ring to Ring Center: 4-3/4"<br /> Resilient Ring Dia.: 2-1/2"<br /> Bolt Circle Dia.: 4-11/16"<br /> Lead Length: 59"<br /> Includes: 5 MFD 370VAC Capacitor<br /> Standards: UL Recognized (E37403), CSA Certified (244617)
