Dayton

Dayton . 5UWL2

Gallery

Attributes

Brand name, Manufacturer name, Extra Product Name, BrandDayton
ManufacturerDayton DAYTON
DimensionUnitinch
GraingerSku, MPN, Part Number, PartNumber5UWL2
UPC190735352977
UnitOfMeasureEA
Voltage230
Weight99.9
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginIN
extendedLead26
extendedQty-2
height, width12
jsonUrlData924526ffbdad25e5923b
length43.5
moq, multiple, tierMinQty1, Phase - Pumps, Phase, Phase Broad, Case, NumberOfItems1
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG0779642
tierPrice11769.75
urlhttps://www.zoro.com/dayton-multi-stage-booster-pump-3-hp-240v-ac-1-phase-1-14-in-flanged-inlet-size-9-stage-5uwl2/i/G0779642/
Product Group, ProductGroupBISS

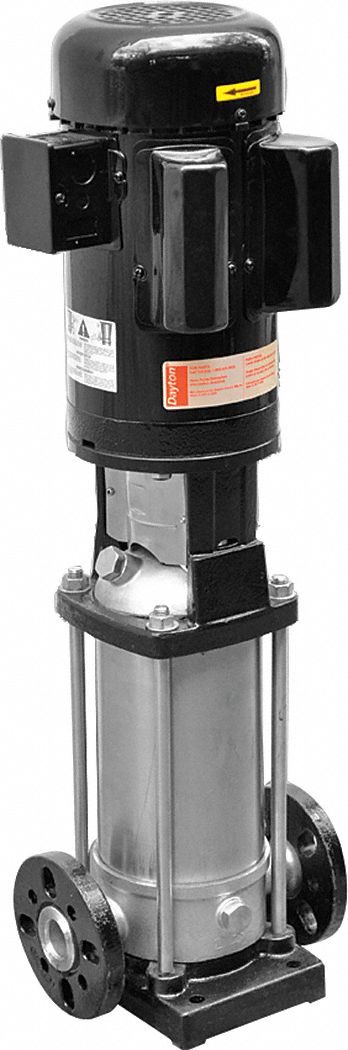

Booster Pump TypeMulti-Stage Booster Pump
ItemBooster Pump
HP - Pumps, Horsepower3 hp
Voltage - Pumps240V AC
Inlet Size - Pumps, Outlet Size - Pumps1-1/4 in Flanged
Number of Stages - Pumps, GPM @ 120 PSI, Stages, Number of Stages9
Max Pressure - Pumps, Max Pressure, Shut Off Pressure (Maximum)127 psi
Housing Material - Pumps, GPM @ 80 PSI, Impeller Material, Pump Housing MaterialStainless Steel
Motor Enclosure - PumpsTotally Enclosed Fan-Cooled
GPM @ 100 PSI25
HP3
Motor Ambient Temp Rating50 Degrees C
Motor RPM, Maximum RPM3,450 RPM
Suction Lift, Suction Lift (Maximum)0 ft
Motor Enclosure, Motor Enclosure BroadTEFC
GPM @ 40 PSI42
Max Liquid Temp, Max Case Pressure362 psi
Manufacturers Warranty Length, Manufacturer Warranty Length1 yr
Amps12.5
Best Efficiency GPM @ PSI30 @ 93
Impeller Type, Impeller DesignClosed
Motor TypeCapacitor-Start
Duty, Duty CycleContinuous
Inlet, Outlet1-1/4" FNPT
Wetted Materials, Seal Material, Wetted MaterialEPDM, Silicon Carbide, Stainless Steel
Length, Length (Straight Wireway)9 7/8 in
IncludesManual
GPM @ 10 PSI54
Hz60
Agency Compliancec UL us
Width8 1/4 in
Pump Mounting PositionHorizontal
Housing MaterialStainless steel
Bearing TypeBall
Frame56c
Max Dia Solids5/64 in
Height31 15/16 in
GPM @ 60 PSI35
Overall Length9.88 in
Overall Height31.94 in
Overall Width8.25 in
StandardscULus Listed
Flow Rate @ 100 psi, Flow Rate @ 10 psi25 gpm
Mounting OrientationVertical
Discharge Type, Intake TypeFlange
Pump Housing Material and Motor Enclosure TypeStainless Steel , Totally Enclosed Fan Cooled
Motor Frame Designation56C
Case Pressure (Maximum)245 psi
Pumping ApplicationCity Water Mains, Cooling Water Systems, Irrigation
Intake and Discharge Size1 1/4 in , 1 1/4 in
Discharge Flange Size, Compatible Intake Pipe Size, Intake Size, Compatible Discharge Pipe Size1 1/4 in
Frequency60 Hz
For Use With SystemsNon-Potable
For Use With Potable SystemsNo
Compatible with Media TypeNon-Abrasive Liquids, Water
Phase and Motor EnclosureSingle Phase Totally Enclosed Fan Cooled
Flow Rate @ 60 psi42 gpm
Solid Diameter (Maximum)0.07 in
Flow Rate @ 70 psi38.5 gpm
Nameplate Voltage, Nominal Voltage230V AC
Best Efficiency Pressure93 psi
Phase and Pump Housing MaterialSingle Phase Stainless Steel
Motor Ambient Temperature (Maximum)104 Degrees F
Flow Rate @ 90 psi30 gpm
Maximum Media Temperature362 Degrees F
Flow Rate @ 80 psi35 gpm
Motor Ambient Temperature (Minimum)40 Degrees F
Flow Rate @ 120 psi9 gpm
AsinB01N9ZIQEM
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161
Feature<b>Price For:</b> Each <b>Voltage</b>: 230 <b>GPM @ 120 PSI</b>: 9 <b>Impeller Type</b>: Closed <b>Outlet</b>: 1-1/4" FNPT <b>GPM @ 80 PSI</b>: 35 <b>Motor Ambient Temp. Rating</b>: 40 Degrees C <b>Bearing Type</b>: Ball <b>Frame</b>: 56C <b>Inlet</b>: 1-1/4" FNPT <b>Includes</b>: Manual <b>Max. Case Pressure</b>: 362 psi <b>Stages</b>: 9 <b>Height</b>: 31-15/16" <b>Item</b>: Vertical Multi-Stage Booster Pump <b>Phase</b>: 1 <b>Max. Dia. Solids</b>: 5/64"
Label, Man, Publisher, StudioDAYTON
ProductTypeNameELECTRONIC_COMPONENT
TitleBooster Pump, 3 HP, 1 Ph, 9 Stages

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG0779642111 @ $1769.75
Grainger5UWL211
Raptor SuppliesAE6TBL111 @ $2937.35
sustainablesupply.comC17403311-211 @ $2530.53
grainger.caGGM5UWL2111 @ $1980.17
