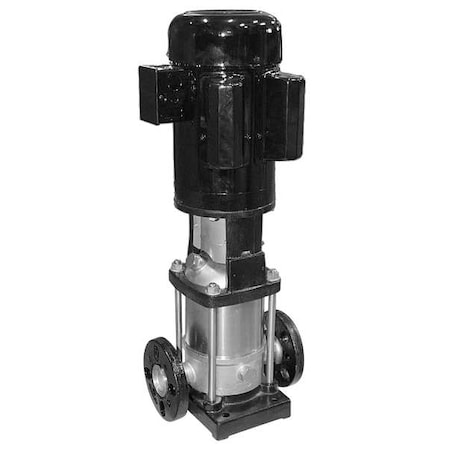

Multi-Stage Booster Pump, 2, 120/208 to 240V AC, 1 Phase, 1 1/4 in Flanged Inlet Size, 5 Stage

Dayton . 5UWL1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
DimensionUnitinch
GraingerSku, MPN5UWL1
Extra Product NameMulti-Stage Booster Pump, 2, 120/208 to 240V AC, 1 Phase, 1 1/4 in Flanged Inlet Size, 5 Stage
Voltage115/208-230
WeightUnitlbs
countryOfOrigin, Country of Origin (subject to change)India
extendedLead26
extendedQty-2
height26.5
height_AttribHeight
length9.875
length_AttribLength
moq, multiple, tierMinQty1, Phase - Pumps, Phase1
qtyInStock0
SKUG2732721
tierPrice11469.28
urlhttps://www.zoro.com/dayton-pump-2-hp-120208-240vac-1-ph-5-stage-5uwl1/i/G2732721/
width8.25
width_AttribWidth
Booster Pump Type, ItemMulti-Stage Booster Pump
HP - Pumps, HP2
Voltage - Pumps120/208 to 240V AC
Inlet Size - Pumps, Outlet Size - Pumps1 1/4 in Flanged
Number of Stages - Pumps, Stages5
Max Pressure - Pumps, Max Pressure70 psi
Housing Material - Pumps, Impeller Material, Housing MaterialStainless Steel
Motor Enclosure - PumpsTotally Enclosed Fan-Cooled
Pump Mounting PositionHorizontal
Hz60
Motor RPM3450
Max Dia Solids5/64"
GPM @ 60 PSI14
Width8-1/4"
Motor EnclosureTEFC
Agency Compliancec UL us
Bearing TypeBall
Max Liquid Temp248 Degrees F
Motor Ambient Temp Rating40 Degrees C
DutyContinuous
Max Case Pressure362 psi
Frame56c
Impeller TypeClosed
Height26-1/2"
GPM @ 40 PSI35
Length9-7/8"
Wetted MaterialsStainless Steel, Silicon Carbide, EPDM
Amps16.6/9.4-8.3
Inlet, Outlet1-1/4" FNPT
IncludesManual
Motor TypeCapacitor-Start
Manufacturers Warranty Length1 yr.
Best Efficiency GPM @ PSI30 @ 50
Seal MaterialSilicon Carbide, Stainless Steel, EPDM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2732721111 @ $1469.28
