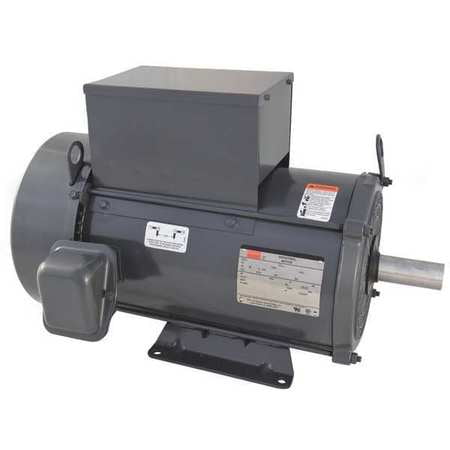

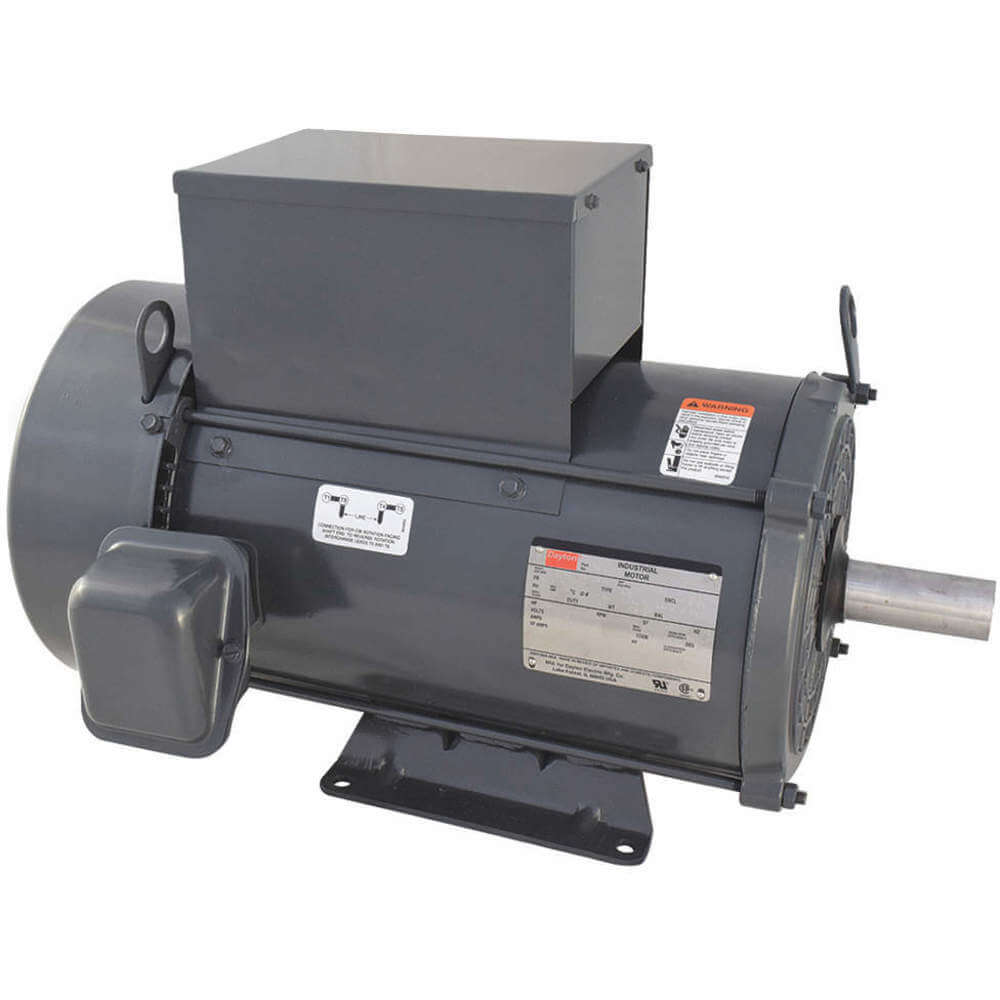

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 HP, Nameplate RPM 1,730, No. of Speeds 1, Voltage 230V AC, Full Load Amps 38.0, 215T Frame, Hz 60, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated No, Motor Shaft Design Keyed

Capacitor-Start Base-Mount Motors Max. ambient: 40°C Rotation: CW/CCW Bearing: ballUL Recognized and CSA Certified.Totally Enclosed Fan-Cooled MotorsFor use in dirty, dusty, and nonhazardous environments. Can be used in place of open dripproof motors.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Capacitor-Start/Run<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 10<br /> Nameplate RPM: 1730<br /> Frame: 215T<br /> Voltage: 230<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 38.0<br /> No. of Speeds: 1<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: All Angle<br /> Motor Thermal Protection: None<br /> Ins. Class: F<br /> Motor Service Factor: 1.00<br /> Motor Bearings: Ball<br /> Motor Frame Material: Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 1-3/8"<br /> Shaft Length: 3-3/8"<br /> Length Less Shaft: 18-15/32"<br /> Overall Length: 22-1/16"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 1701-1800<br /> Standards: UL Recognized (E47479), CSA Certified (258525)<br /> Duty: Continuous<br /> Motor Efficiency Group: Energy Efficient<br /> Nominal Efficiency: 86.9%<br /> Inverter Rated: No<br /> Includes: Conduit Box<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800<br />
