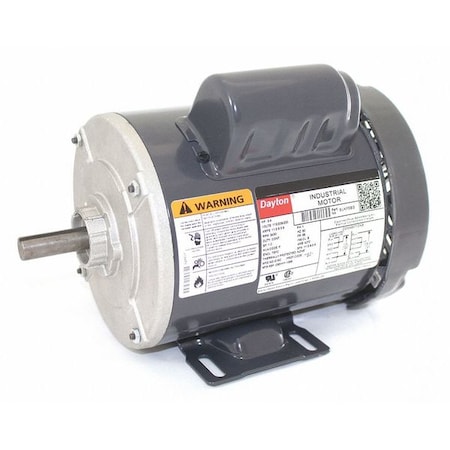

Capacitor-Start General Purpose Motor, 3/4 HP, 115/208-230 Voltage, 56 Frame, 3450 Nameplate RPM

Dayton . 5UKF5BG

Gallery

Attributes

Brand name, Manufacturer nameDayton
ManufacturerDayton CAI - DAYTON
DimensionUnitinch
GraingerSku5UKF5
Extra Product NameCapacitor-Start General Purpose Motor, 3/4 HP, 115/208-230 Voltage, 56 Frame, 3450 Nameplate RPM
Voltage115/208-230 230.0
WeightUnitlbs
countryOfOrigin, Country of Origin (subject to change)Mexico
diameter, height, width0.625
extendedLead26
extendedQty-2
height_Attrib, width_AttribShaft Dia.
length11.8125
length_AttribOverall Length
moq, multiple, tierMinQty1, No of Speeds, Phase, PackageQuantity1
MPN, Keyword, PartNumber, Part_number5UKF5BG
qtyInStock0
SKUG2251252
tierPrice1251.17
urlhttps://www.zoro.com/dayton-gp-mtr-cs-tefc-34-hp-3450-rpm-56-5ukf5bg/i/G2251252/
ItemGeneral Purpose Motor
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Mounting TypeRigid Base
HP3/4
RPM Range, RPM Group3001-3600
Frame56
Motor Thermal ProtectionNone
Motor Service Factor1.00
Voltage Compatibility115, 120, 208, 230, 240, 115/208-230, 115/230, 120/240, 208-230, 208-240
Motor ApplicationGeneral Application
Nameplate RPM3450
Motor Frame Material, Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor DesignCapacitor-Start
StandardsUL Recognized (E47479), CSA Certified (258501)
Full Load Amps11.5/5.6-5.6
Shaft Dia5/8"
Max Ambient Temp40 Degrees C
Hz60
Motor BearingsBall
DutyContinuous
Motor Efficiency GroupStandard Efficient
Ins ClassB
Overall Length11-13/16"
Footnotes51
Length Less Shaft9-15/16"
Manufacturers Warranty Length1 yr.
Shaft Length1-7/8"
Nominal Efficiency65.10%
IncludesConduit Box, Shaft Key
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
AsinB07J2BS1XZ
BrandCAI - DAYTON
ClassificationId6372405011
DisplayNameFan Motors
Height2.0 398 60 895
Horsepower0.75
Identifier0696334136913 696334136913
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameDayton 3/4 HP General Purpose Motor,Capacitor-Start,3450 Nameplate RPM,Voltage 115/208-230,Frame 56
Item_type_keywordelectric-fan-motors
Length2.0
Linkhttps://m.media-amazon.com/images/I/41DPshk0VfL._SL75_.jpg https://m.media-amazon.com/images/I/41DPshk0VfL.jpg https://m.media-amazon.com/images/I/61qzSYZzTsL.jpg
MaterialAlloy Steel
ProductTypeELECTRIC_MOTOR
Product_descriptionCapacitor-Start Base-Mount Motors Max. ambient: 40°C Rotation: CW/CCW Bearing: ballUL Recognized and CSA Certified.Totally Enclosed Fan-Cooled MotorsFor use in dirty, dusty, and nonhazardous environments. Can be used in place of open dripproof motors.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 3/4<br /> Nameplate RPM: 3450<br /> Frame: 56<br /> Voltage: 115/208-230<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 11.5/5.6-5.6<br /> No. of Speeds: 1<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: All Angle<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Motor Service Factor: 1.00<br /> Motor Bearings: Ball<br /> Motor Frame Material: Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Length Less Shaft: 9-15/16"<br /> Overall Length: 11-13/16"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 3001-3600<br /> Standards: UL Recognized (E47479), CSA Certified (258501)<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 65.10%<br /> Includes: Conduit Box, Shaft Key<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 3001-3600
Product_site_launch_date2018-10-05T04:38:55.126Z
Speed3450.0
Typeean upc
Unithorsepower inches rpm volts
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width1125 2.0 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2251252111 @ $251.17
