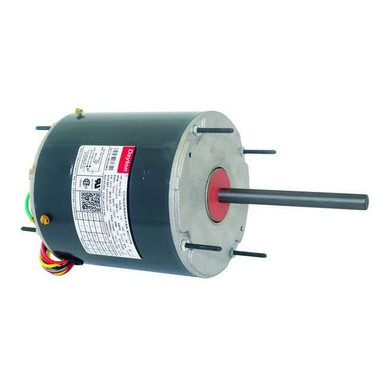

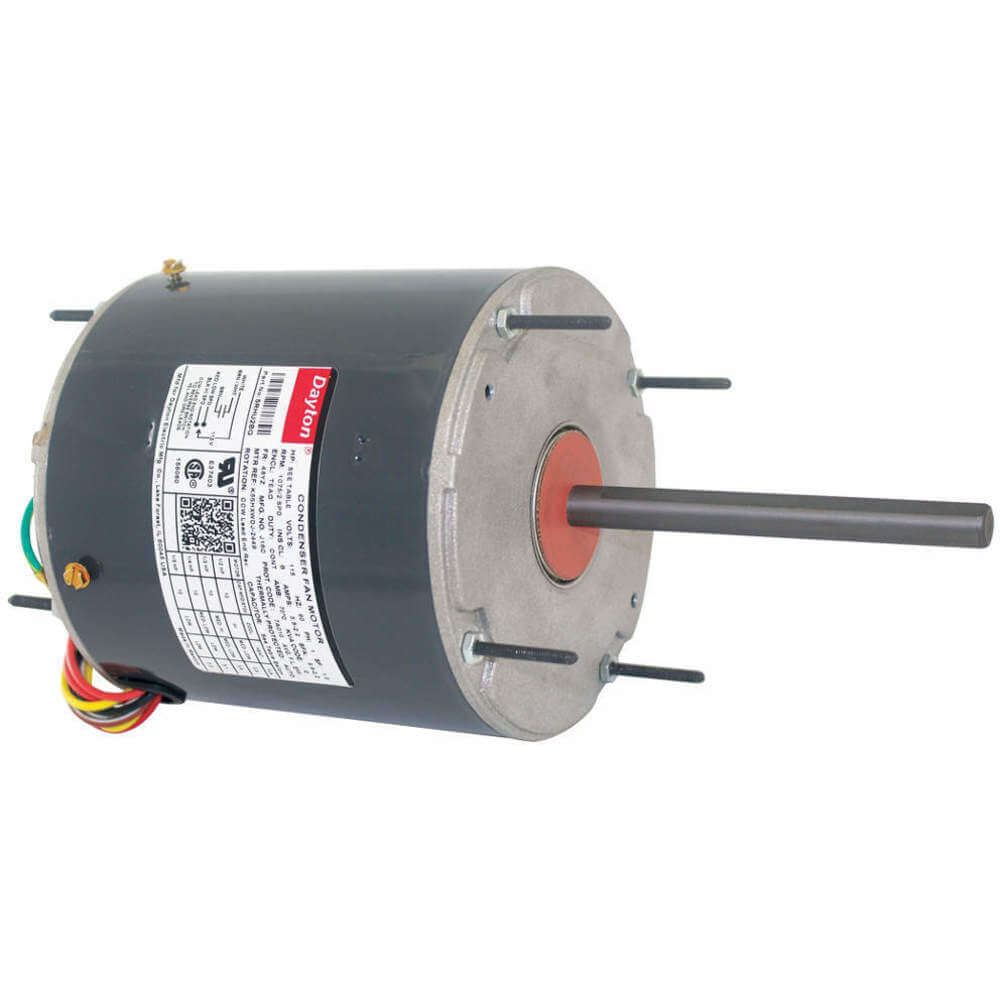

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 to 1/5 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 115V AC, 5.8-2.2 Full Load Amps, 48YZ Frame, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 5 in, Lead Length 48 in

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 to 1/5 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 115V AC, 5.8-2.2 Full Load Amps, 48YZ Frame, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 5 in, Lead Length 48 in

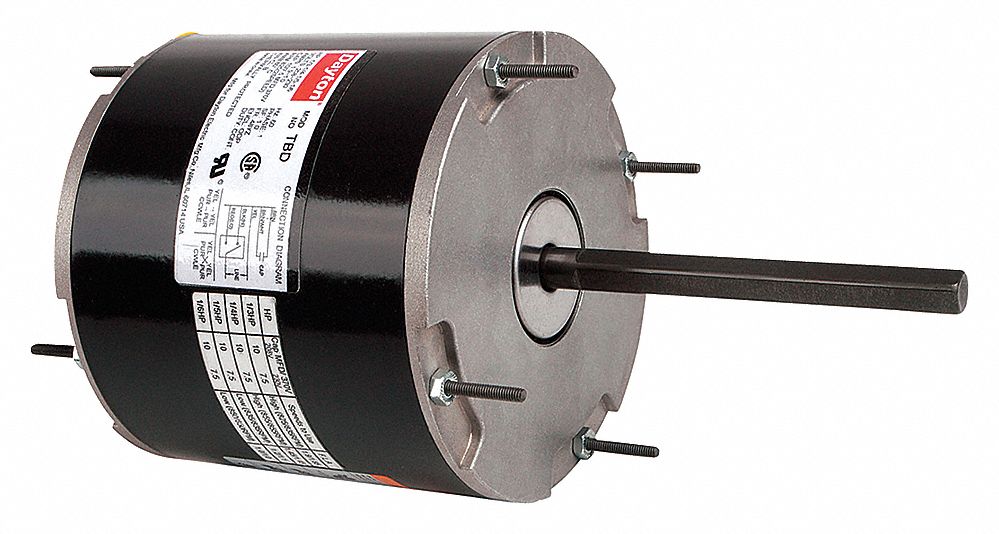

Multi-HP PSC 2-Speed Condenser Fan Motors NEMA frame: 48YZ (5-5/8" body dia.) Enclosure: totally enclosed air-over Mounting: stud Service factor: 1.0 Insulation: Class B Max. ambient: 70°C Thermal protection: auto Rotation: CW/CCW Duty: continuous air-over Bearings: ballMultiple-horsepower design eliminates the need to select speed or change capacitor size during installation. Totally enclosed construction allows all-angle mounting. Energy-efficient PSC design with high-efficiency rating ensures performance in elevated temperatures. Feature quick-change reversing plug.UL Recognized and CSA Certified.<br /><br /> Item: Condenser Fan Motor<br /> Motor Design: Permanent Split Capacitor<br /> Phase: 1<br /> HP: 1/2 to 1/5<br /> RPM Range: 1001-1100<br /> No. of Speeds: 2<br /> Voltage: 115<br /> Motor Shaft Rotation: CW/CCW<br /> Frame: 48YZ<br /> Motor Enclosure Design: Totally Enclosed Air-Over<br /> Motor Mounting Type: Stud<br /> Motor Mounting Position: All Angle<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 5"<br /> Motor Thermal Protection: Auto<br /> Max. Ambient Temp.: 70 Degrees C<br /> Nameplate RPM: 1075<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Condenser Fan<br /> Hz: 60<br /> Full Load Amps: 5.8-2.2<br /> Ins. Class: B<br /> Motor Service Factor: 1.00<br /> Motor Bearings: Ball<br /> Overall Length: 10-13/16"<br /> Length Less Shaft: 5-13/16"<br /> Body Dia.: 5-5/8"<br /> Bolt Circle Dia.: 5-1/8"<br /> Stud Quantity: 4<br /> Mounting Stud Pattern: 3-5/8" x 3-5/8"<br /> Stud Size: 8-32UNC-2A x 1-1/4"<br /> Nominal Efficiency: 70.60%<br /> Lead Length: 48"<br /> Motor Shaft Design: Double-Flat<br /> Features: Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs<br /> Duty: Continuous<br /> Capacitor Required: 2MDV7<br /> Application: Replaces OEM Condenser Fan Motors<br /> Standards: UL Recognized (E37403), CSA Certified (258501)<br />
