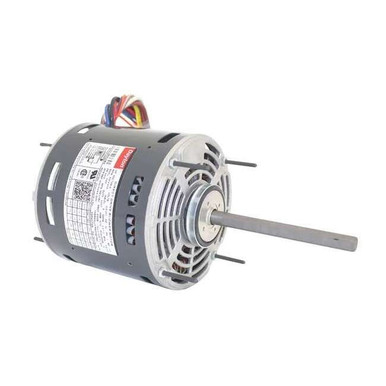

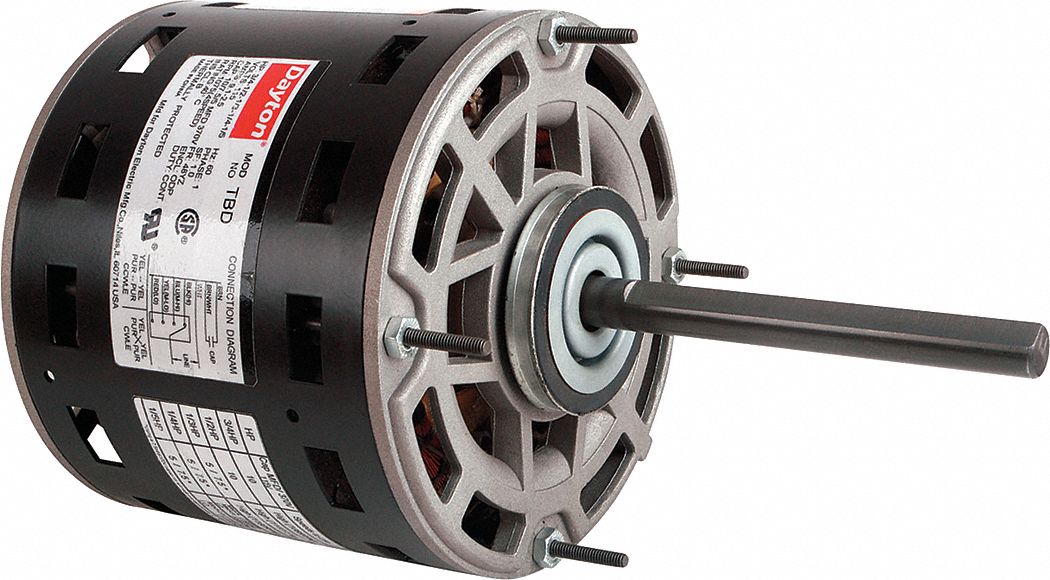

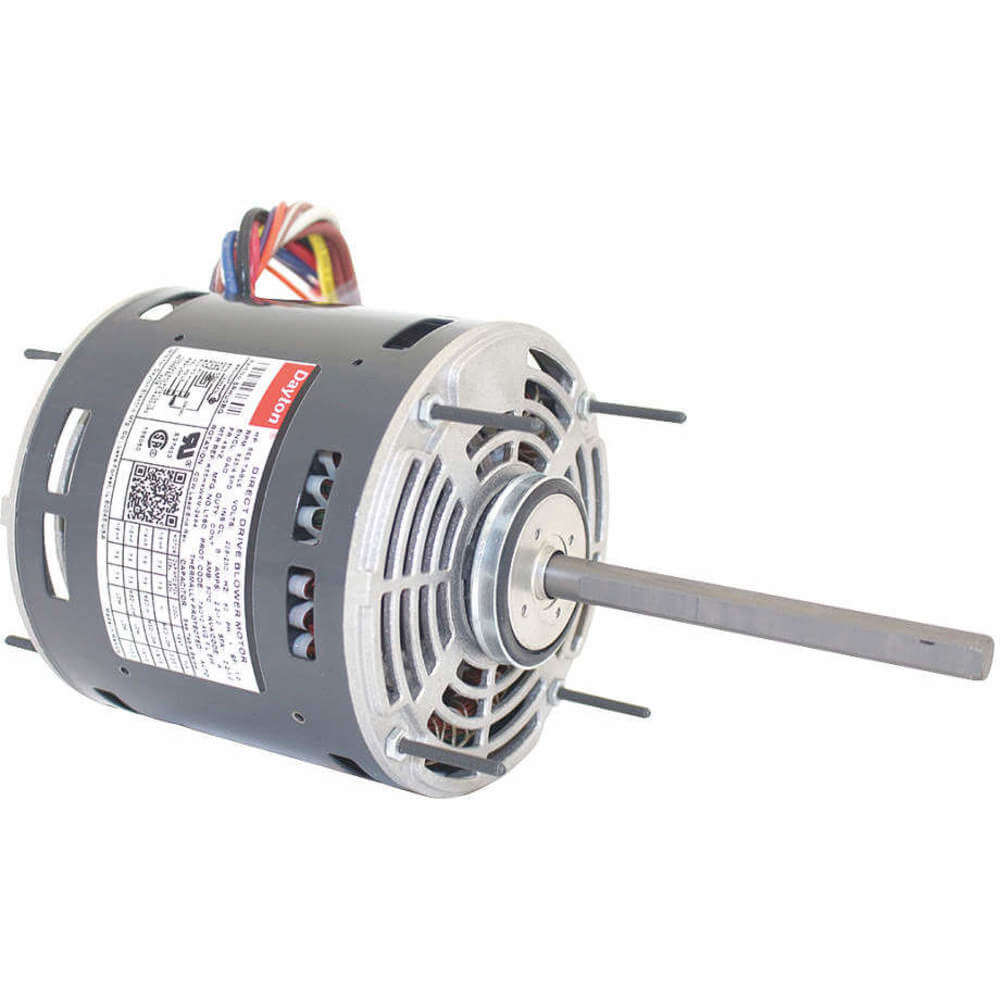

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 to 1/5 HP, Nameplate RPM 825, No. of Speeds 4, Voltage 208-230V AC, Full Load Amps 3.9-1.4, 48YZ Frame, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 60 Degrees C, Duty Cycle Continuous, Lead Length 36 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle

Multi-HP PSC Direct-Drive/Fan Multi-Speed Motors NEMA frame: 48YZ (5-5/8" body dia.) Enclosure: open air-over Mounting: ring/stud/band Service factor: 1.0 Insulation: Class B Thermal protection: auto Shaft orientation: all-angle Rotation: CW/CCW Duty: continuousEnergy-efficient motors operate at multiple horsepowers, reducing inventory needs and expense. Feature quick-change reversing plug.UL Recognized and CSA Certified.<br /><br /> Item: Direct Drive Blower Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Direct Drive Fan/Blower<br /> Motor Design: Permanent Split Capacitor<br /> Motor Enclosure Design: Open Air-Over<br /> HP: 1/2 to 1/5<br /> Nameplate RPM: 825<br /> Voltage: 208-230<br /> Full Load Amps: 3.9-1.4<br /> Hz: 60<br /> Phase: 1<br /> Frame: 48YZ<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temp.: 60 Degrees C<br /> Ins. Class: B<br /> Duty: Continuous<br /> No. of Speeds: 4<br /> Motor Mounting Type: Stud<br /> Motor Mounting Position: All Angle<br /> Motor Bearings: Ball<br /> Motor Thermal Protection: Auto<br /> Motor Shaft Rotation: CW/CCW<br /> Nominal Efficiency: 53.3%<br /> Body Dia.: 5-5/8"<br /> Length Less Shaft: 6-5/8"<br /> Overall Length: 13-3/16"<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 6"<br /> Motor Shaft Design: Double-Flat<br /> Capacitor Required: 2MDV7<br /> Resilient Ring Dia.: 2-1/4"<br /> Ring to Ring Center: 6-5/8"<br /> Mounting Stud Pattern: 3-5/8" x 3-5/8"<br /> Bolt Circle Dia.: 5-1/8"<br /> RPM Range: 0-1000<br /> Standards: UL Recognized (E37403), CSA Certified (258501)<br /> Application: Blowers, Fans and Air Circulators<br />
