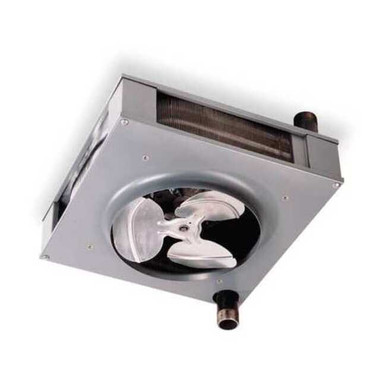

Product Type Suspended Vertical Hydronic Wall & Ceiling Unit Heater, Air Flow Direction Vertical, Heating Method Steam, Water, Output @ 2 PSI Steam 124,400 BtuH, Output @ 200 F Water 83,700 BtuH, Air Flow 1.790 cfm, Fan Phase 1, Overall Height 12 3/4 in, Overall Width 25 1/4 in, Overall Depth 25 1/4 in, Amperage 2.3 A, Coil Type Rectangular, Connection Size 1 1/2 in, Connection Type Threaded Male NPT, Fan Diameter 16 3/4 in, Fan Guard Type No Guard, Flow Rate 8.63 gpm, Frequency 60 Hz

Manufactured coil is submersion tested at 375 psi to assure coil is leak-free. Air ports are stamped into the top plate for easy conversion of low-output units. For use in spot heating, assembly lines, warehouses, manufacturing facilities, garages, high bays, and any large open areas. Fan guard is sold separately. Heater is ETL rated to 75 psi saturated steam at 325°F.<br /><br /> Item: Hydronic Unit Heater<br /> Heater Type: Water/Steam<br /> Output @ 2 PSI Steam: 124,400 BtuH<br /> Output @ 200 F Water: 83,700 BtuH<br /> Air Flow: 1790 cfm<br /> Motor HP: 1/6<br /> Amps: 2.3<br /> Inlet/Outlet NPT: 1-1/2"<br /> Height: 12-3/4"<br /> Width: 25-1/4"<br /> Depth: 25-1/4"<br /> Air Flow Direction: Vertical<br /> Heater Voltage: 120VAC<br /> Hz: 60<br /> Phase: 1<br /> Max. Operating PSI: 75<br /> Max. Operating Temp.: 320 Degrees F<br /> Motor Enclosure: Totally Enclosed<br /> Mounting Height: 16 ft.<br /> Standards: ETL Certified
