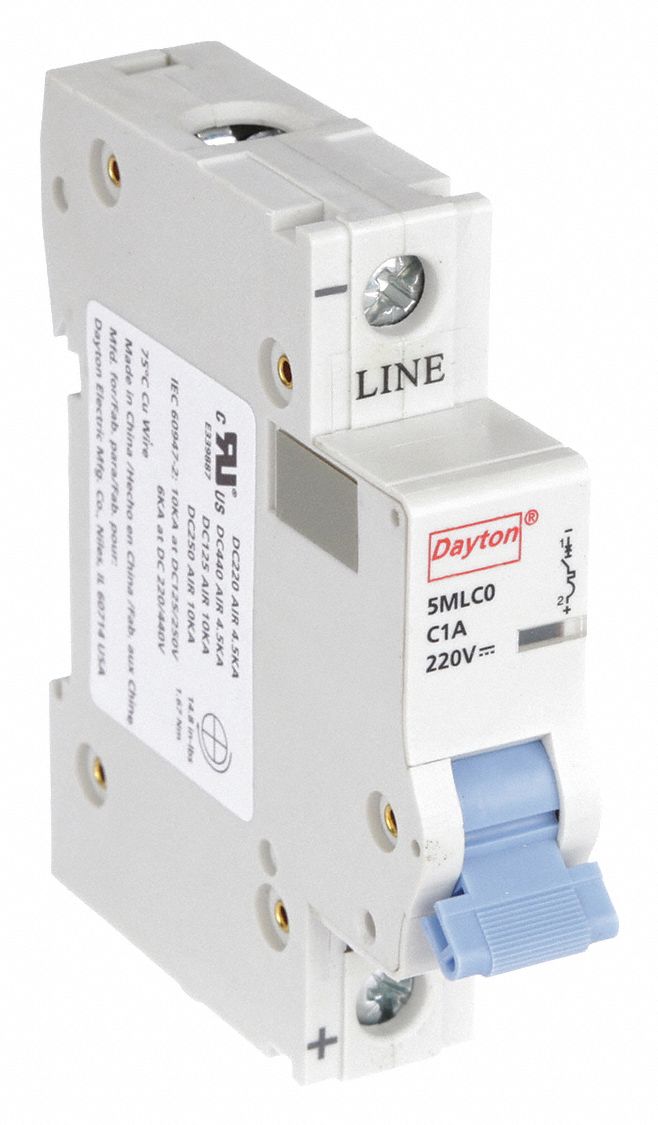

IEC Supplementary Protector, Amps 1 A, AC Voltage Rating Not Rated, Max. AIR Rating 10kA at 440V DC, Series NDB2Z-63 C1/1, Curve Type C, DC Voltage Rating 220V DC, Number of Poles 1, Phase 1, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1077, Terminal Connection Screw Clamp, Trip Type Thermal Magnetic, Application Supplemental Protection, Min. Wire Size 14 AWG, Max. Wire Size 4 AWG, Length 3.21 in, Width 0.71 in, Depth 2.91 in

This miniature circuit breaker provides supplementary protection within equipment. It must be used in conjunction with branch circuit protection when connecting to external devices. The C Curve trips 7 to 10 times the amp rating for AC, 7 to 14 times for DC.<br /><br /> Item: IEC Supplementary Protector<br /> Amps: 1<br /> Number of Poles: 1<br /> Curve Type: C<br /> AC Voltage Rating: Not Rated<br /> DC Voltage Rating: 220VDC<br /> Max. AIR Rating: 10 kA<br /> Trip Type: Thermal Magnetic<br /> Terminal Connection: Screw Clamp<br /> Mounting: DIN Rail<br /> Application: Supplemental Protection<br /> Min. Wire Size: 14 AWG<br /> Max. Wire Size: 4 AWG<br /> Length: 3.21"<br /> Width: 0.71"<br /> Depth: 2.91"<br /> Standards: UL Listed, CSA,TUV,CE<br /> Series: NDB2Z-63 C1/1
