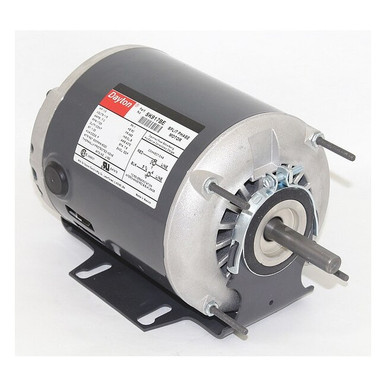

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 7.0, 48Z Frame, Hz 60, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Rolled Steel

Use this motor in clean, dry, and nonhazardous applications, including fans, blowers, pumps, printing equipment, and other business machines.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Split-Phase<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 1/3<br /> Nameplate RPM: 1725<br /> Frame: 48Z<br /> Voltage: 115<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 7.0<br /> No. of Speeds: 1<br /> Motor Mounting Type: Cradle Base<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Motor Service Factor: 1.35<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 1-7/8"<br /> Length Less Shaft: 9-15/16"<br /> Overall Length: 9-13/16"<br /> Motor Shaft Design: Flat<br /> RPM Range: 1701-1800<br /> Standards: UL (E47479), CSA (156060)<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 54.3%<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800
