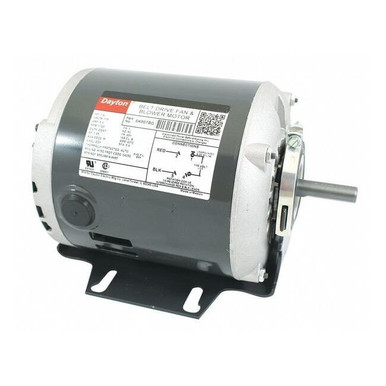

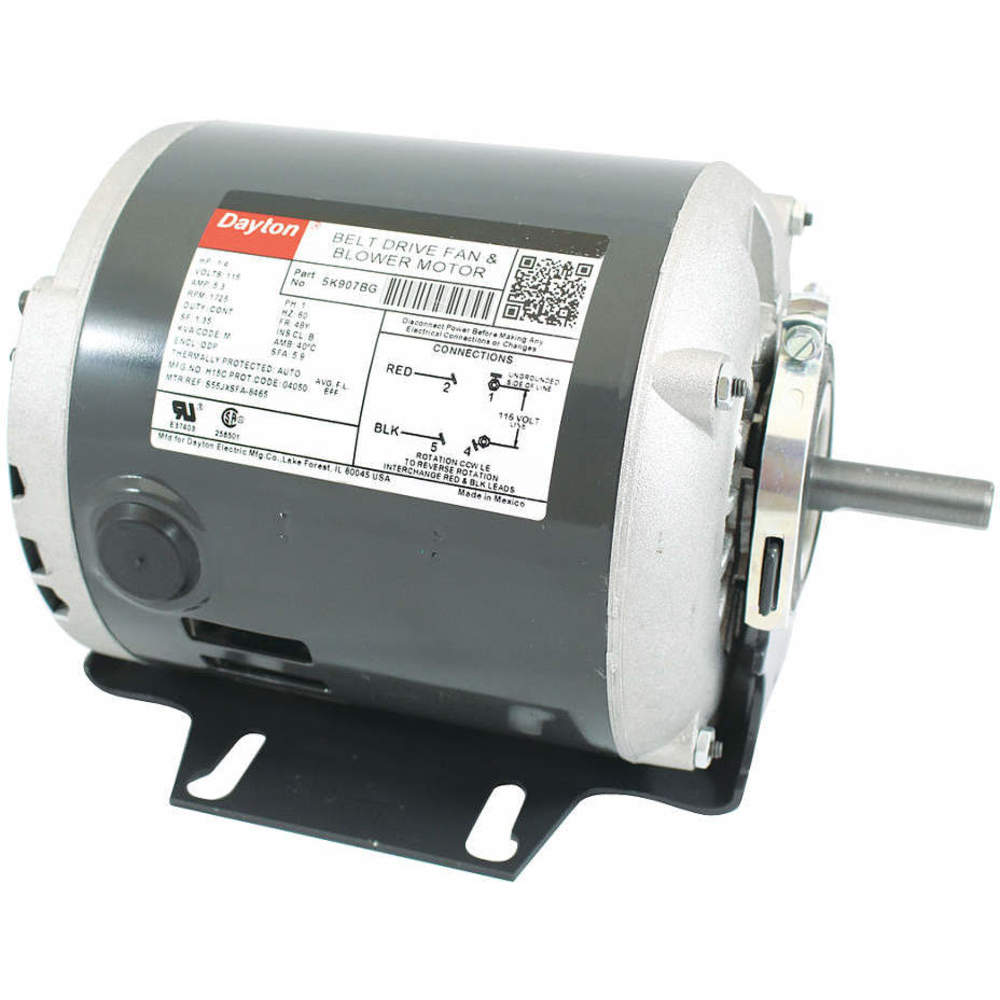

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 5.3 Full Load Amps, 48 Frame, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in, Shaft Length 1 1/2 in

This motor is for use in fans, blowers, whole-house fans, air circulators, and air coolers where a quiet running motor is required.<br /><br /> Item: Belt Drive Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Belt Drive Fan/Blower<br /> Motor Design: Split-Phase<br /> HP: 1/4<br /> No. of Speeds: 1<br /> Nameplate RPM: 1725<br /> Voltage: 115<br /> Frame: 48<br /> Motor Enclosure Design: Open Dripproof<br /> Motor Mounting Type: Cradle Base<br /> Motor Mounting Position: All Angle<br /> Hz: 60<br /> Full Load Amps: 5.3<br /> Motor Thermal Protection: Auto<br /> Ins. Class: B<br /> Motor Service Factor: 1.35<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Motor Shaft Design: Flat<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 1-1/2"<br /> Overall Length: 8-15/16"<br /> Body Dia.: 5-5/8"<br /> Resilient Ring Dia.: 2-1/2"<br /> Duty: Continuous<br /> RPM Range: 1701-1800<br /> Phase: 1<br /> Includes: 5/8" diameter bushing with shaft key<br />
