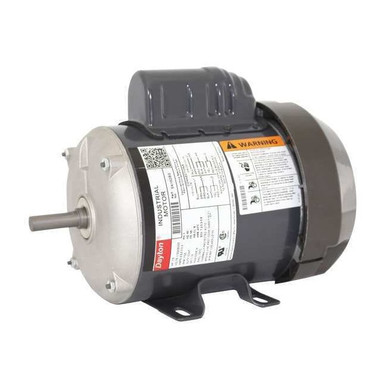

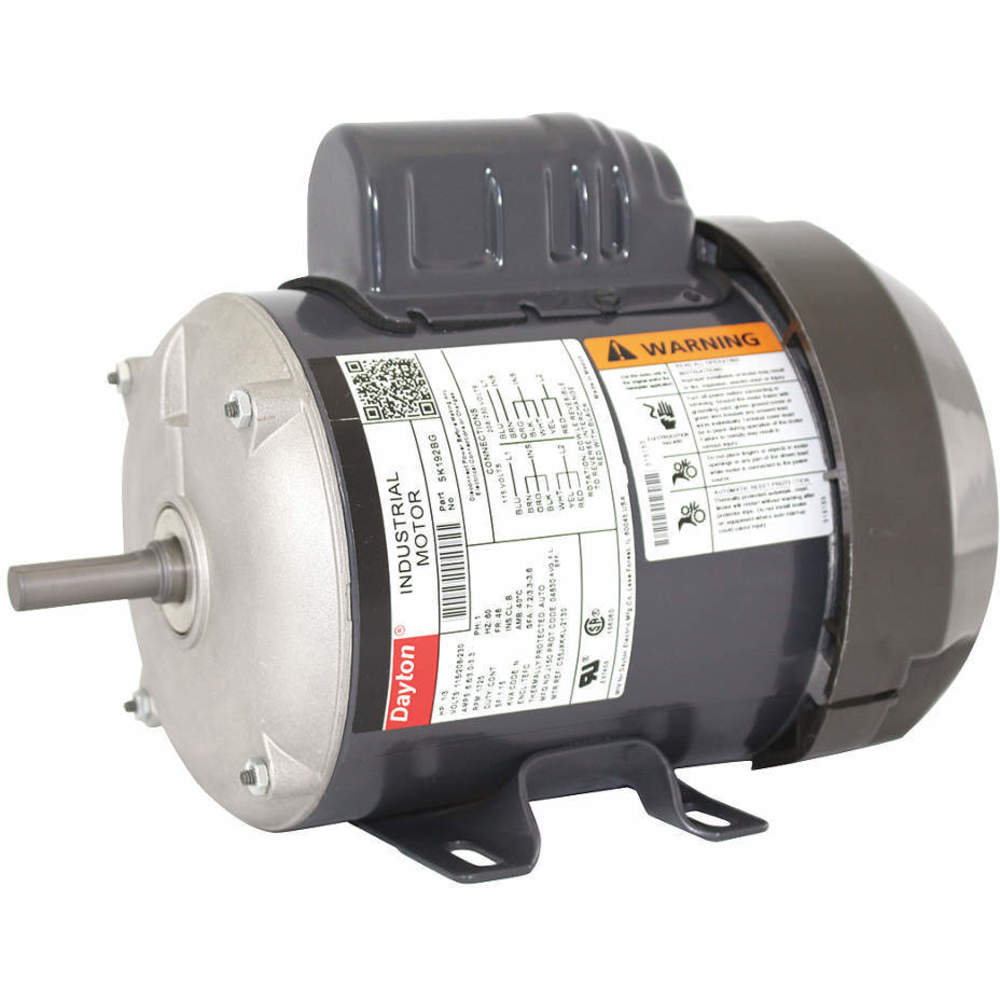

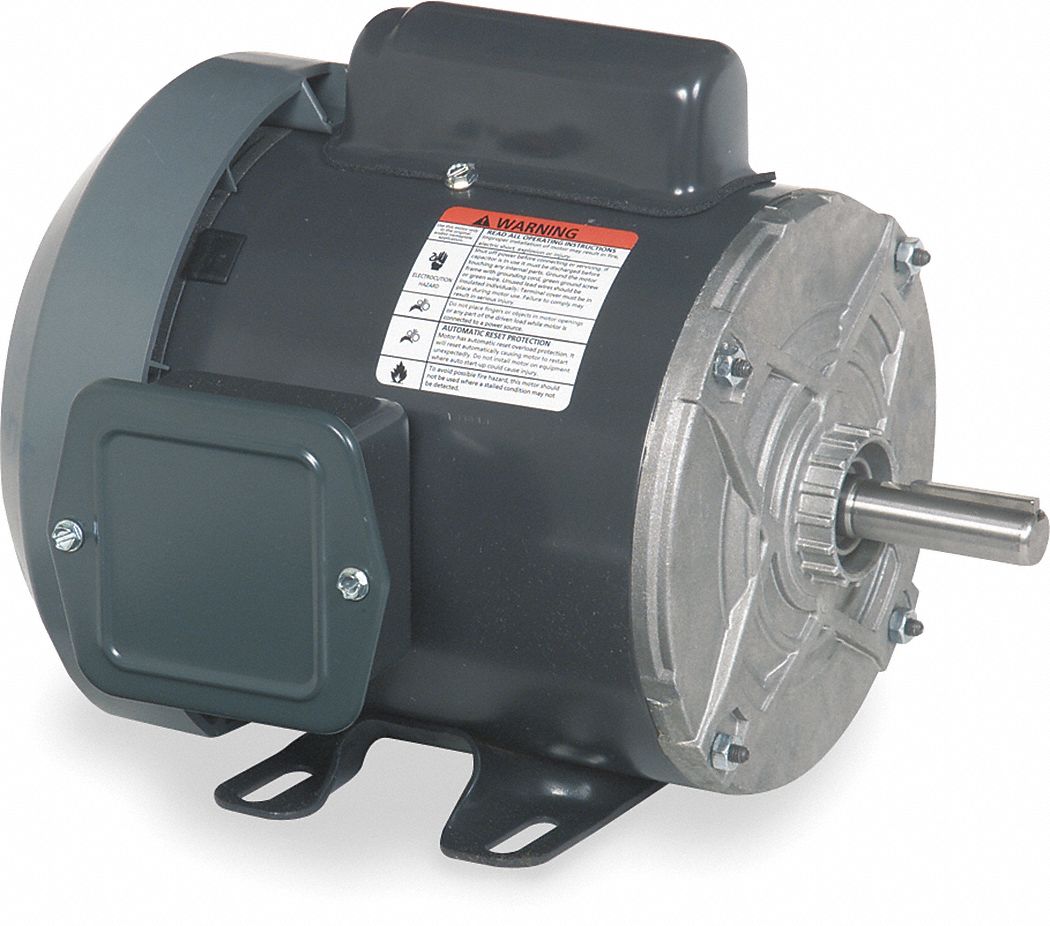

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.6/3.3-3.0, 48 Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Flat WARNING: Cancer - www.P65Warnings.ca.gov - Nickel (Metallic)

Capacitor-Start Base-Mount Motors Max. ambient: 40°C Rotation: CW/CCW Bearing: ballUL Recognized and CSA Certified.Totally Enclosed Fan-Cooled MotorsFor use in dirty, dusty, and nonhazardous environments. Can be used in place of open dripproof motors.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 1/3<br /> Nameplate RPM: 1725<br /> Frame: 48<br /> Voltage: 115/208-230<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 6.6/3.0-3.3<br /> No. of Speeds: 1<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: All Angle<br /> Motor Thermal Protection: Auto<br /> Ins. Class: B<br /> Motor Service Factor: 1.15<br /> Motor Bearings: Ball<br /> Motor Frame Material: Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 1-11/16"<br /> Length Less Shaft: 8-19/32"<br /> Overall Length: 10-1/4"<br /> Motor Shaft Design: Flat<br /> RPM Range: 1701-1800<br /> Standards: UL Compopnent Recognition - E47479, CSA Certification - 258501<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 71.6%<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800<br />
