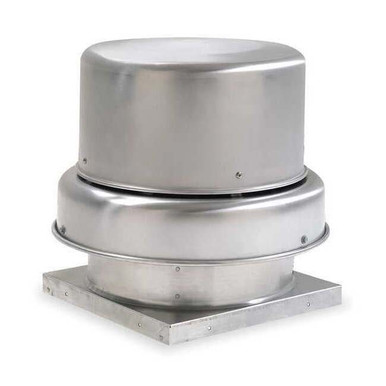

Centrifugal Downblast Roof Exhaust Fan, Drive Type Direct Drive, Assembly Assembled, Wheel Diameter 11 in, Base Diameter Not Applicable, Base Length 22 in, Base Width 22 in, Base Shape Square, Nameplate Voltage 115V AC, Phase 1, Motor Horsepower 1/6 hp, Exhaust Airflow @ 0.000 in SP 966 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, For Air Type Clean Air, Includes Drive Package Yes, Includes Motor Yes, Mounting Location Roof, Maximum Static Pressure 1/2 in wc

Dayton . 5DVR9

Gallery

Attributes

Brand name, Manufacturer name, BrandDayton
ManufacturerDayton DAYTON Dayton Electric Manufacturing Co.
CategoryId, CategoryIdL35111
CategoryIdL130
CategoryIdL24579
CategoryL1Heating & Cooling
CategoryL2Roof Ventilators
CategoryL3Direct Drive Centrifugal Exhaust Ventilators
DimensionUnitinch
GraingerSku, MPN, Part Number, Keyword, PartNumber, Part_number, Sku5DVR9
UPC, EAN, EANList, UPCList190735343128
UnitOfMeasureEA
Weight43 0.01 43.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height28
jsonUrlData924526ffbdad25e5923b
length, width30.5
moq, multiple, tierMinQty1, Number of Speeds, Phase, Case, Item_package_quantity, NumberOfItems, PackageQuantity1
qtyInStock27
qtyInStockOverride-2
SKUG3085056
tierPrice1639.99
urlhttps://www.zoro.com/dayton-downblast-vent-direct-drive-11-in-max-bhp-009-hp-5dvr9/i/G3085056/
Product GroupBISS
Base Size - Roof Ventilators22 in x 22 in
Base Width, Base Length22"
Dimension D4 3/8 in
Base Height1 3/4 in
Base Square Size - Roof Ventilators22" x 22"
Dimension B, Overall Dia, Overall Width, Overall Length, Overall Diameter24 3/8 in
Dimension C, Overall Height23 3/4 in
Shaft Dia Wheel End, Propeller Shaft Diameter1/2 in
Wheel Dia, Wheel Diameter11 in
Dimension A22 in
Cutout Length17.5 in
Housing Width, Housing Length24.4 in
Cutout Size17.5 in L x 17.5 in W
Base DiameterNot Applicable
Base Dimension22 in Square
Damper Size15 x 15 in
Item - Roof VentilatorsDownblast Ventilator
Drive Package With Motor Included, Speed Controllable, Drive Package Included, Includes Drive PackageYes
Duty Rating - Roof VentilatorsStandard
Drive Type - Roof VentilatorsDirect Drive
Mounting Location - Roof Ventilators, Mounting LocationRoof
Voltage - Roof Ventilators, Nameplate Voltage115V AC
Motor HP - Roof Ventilators, Motor Horsepower1/6 hp
CFM @ 0 000-In SP966
Housing MaterialSpun Aluminum
Speed Control, Compatible Speed Control48C172
Recommended 8 In Fixed Curb Item No4HX39
CFM @ 0 500-In SP507
RPM1140
Agency ComplianceAMCA Sound & Air, CSA Certified Motor, UL/cUL 705
Adj 12 3/8"H Roof Curb Stock No2ZV82
Wheel TypeBackward Inclined
Sones @ 0 250-In SP @ 5 Ft5.7
Assembled/UnassembledAssembled
Adj 6 3/8"H Roof Curb Stock No4c453
Sones @ 0 125-In SP @ 5 Ft6.0
CFM @ 0 250-In SP805
IncludesNEMA 1 Junction Box
Max Operating Amps2.2
CFM @ 0 375-In SP702
Wheel MaterialAluminum
CFM @ 0 125-In SP883
Motor HP1/6
Drive TypeDirect-Drive
ItemCentrifugal Downblast Roof Exhaust Fan
Hz60
Motor Voltage115
Max Inlet Temp130 Degrees
Recommended 12 In Fixed Curb Item No2RB76
Max BHP1.56 hp
MaterialAluminum Blade with Aluminum Housing
ApplicationIndustrial and Commercial Applications
Exhaust Airflow @ 0 250 in SP805 cfm
Exhaust Airflow @ 0 000 in SP, Airflow @ 0 000 in SP966 cfm
Motor Speed, Maximum Fan Speed1,140 RPM
For High-Static Pressure ApplicationsNo
Maximum Inlet Air Temperature130 Degrees F
Housing Material FabricationSpun
Frequency60 Hz
Brake Horsepower9/100 hp
Motor EnclosureOpen Air Over
Compatible Curb Manufacturer Part Number2RB76, 2ZV82, 4C453, 4C670, 4HX39, 4HX47
For Air TypeClean Air
Mount TypeRoof Curb
Spark Resistant Construction TypeA
Current2.2 A
Exhaust Airflow @ 0 125 in SP883 cfm
Mounting OrientationVertical
Electrical ConnectionPower Cord
Exhaust Airflow @ 0 500 in SP - Range, Exhaust Airflow @ 0 000 in SP - Range, Airflow @ 0 000 in SP - Range0 to 1,999 cfm
Maximum Static Pressure1/2 in wc
Motor EfficiencyStandard-Efficiency Motors
Safety FeaturesBirdscreen, Windband
Exhaust Airflow @ 0 375 in SP702 cfm
Sound Level4.1 sones @ 0.500 in SP and 5 ft, 5.1 sones @ 0.375 in SP and 5 ft, 5.7 sones @ 0.250 in SP and 5 ft, 6.0 sones @ 0.125 in SP and 5 ft, 6.6 sones @ 0.000 in SP and 5 ft
Base ShapeSquare
ASIN, AsinB007ICAC0Q
Amount772.99
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 256346011 720590011
ClassificationId511376
CurrencyCodeUSD
DisplayNameRoof Vents
FeatureAssembled/Unassembled: Assembled
Height1007 28.0 28.00 500 75
Identifier0190735343128 190735343128
IdentifierTypeEAN UPC
IsAutographed, IsMemorabilia0 false
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleDownblast Vent, Direct Drive, 11 In
Item_type_keywordroof-vents
Label, Publisher, StudioDAYTON Dayton Dayton Electric Manufacturing Co.
Length30.5 30.50
Linkhttps://m.media-amazon.com/images/I/41UXXD7qiQL._SL75_.jpg https://m.media-amazon.com/images/I/41UXXD7qiQL.jpg https://m.media-amazon.com/images/I/61k1hylzG-L.jpg
ManDAYTON
ProductGroupBISS BISS Basic Home Improvement
ProductTypeMECHANICAL_COMPONENTS
ProductTypeNameELECTRONIC_COMPONENT MECHANICAL_COMPONENTS
Product_site_launch_date2018-08-13T19:34:09.483Z
Typeean upc
URLhttp://ecx.images-amazon.com/images/I/31kHYMHO9YL._SL75_.jpg http://ecx.images-amazon.com/images/I/41UXXD7qiQL._SL75_.jpg https://m.media-amazon.com/images/I/41UXXD7qiQL._SL75_.jpg
Unitinches
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width1000 30.5 30.50 497 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG308505612711 @ $639.99
Grainger5DVR911
Raptor SuppliesAE3KZU111 @ $1050.48
AmazonTPB007ICAC0Q111 @ $709.18
sustainablesupply.comC11389971-211 @ $823.90
grainger.caGFN5DVR9111 @ $486.46
simsupply.comZO-G308505612211 @ $757.44
