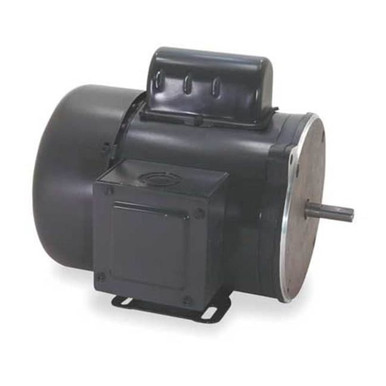

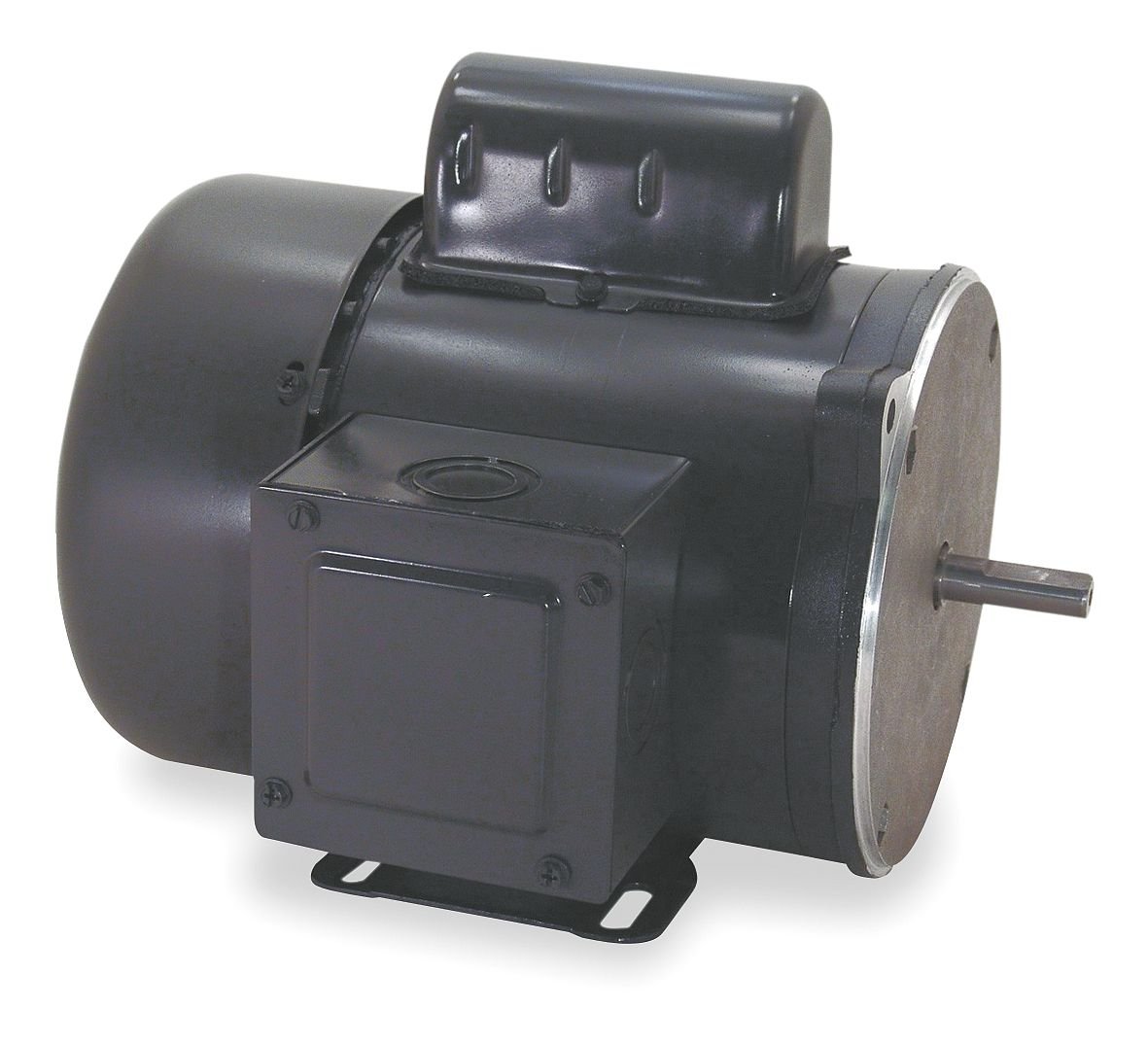

DAYTON . 5K044

Auger Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.0/4.0 A, 56YZ Frame, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel WARNING: Cancer - www.P65Warnings.ca.gov - Nickel (Metallic)

For use in high-torque installations, such as conveyors, silo unloaders, barn cleaners, compressors, and manure pumps, this motor is designed to be durable and powerful. The high-torque design enables it to start under heavy load conditions. A capacitor cover, gasketed conduit box, and rubber boot over the manual protector reset button help seal the motor against weather and contaminants. Shaft slinger included. The totally enclosed, fan-cooled motor design also helps keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.<br /><br /> Item - Farm Duty Motors: Auger Drive Motor<br /> Motor Application: Farm Duty<br /> Motor Sub Application: Auger<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 1/2<br /> Nameplate RPM: 1725<br /> Frame: 56YZ<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 115/230<br /> Full Load Amps: 8.0/4.0<br /> Phase: 1<br /> Hz: 60/50<br /> Motor Mounting Type: Face/Base<br /> Motor Mounting Position: Horizontal<br /> Motor Bearings: Ball<br /> Motor Thermal Protection: Manual<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temperature: 40 Degrees C<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 1-3/4"<br /> Motor Shaft Design: Flat<br /> Ins. Class: B<br /> RPM Range: 1701-1800<br /> Item: Auger Drive Motor<br />
