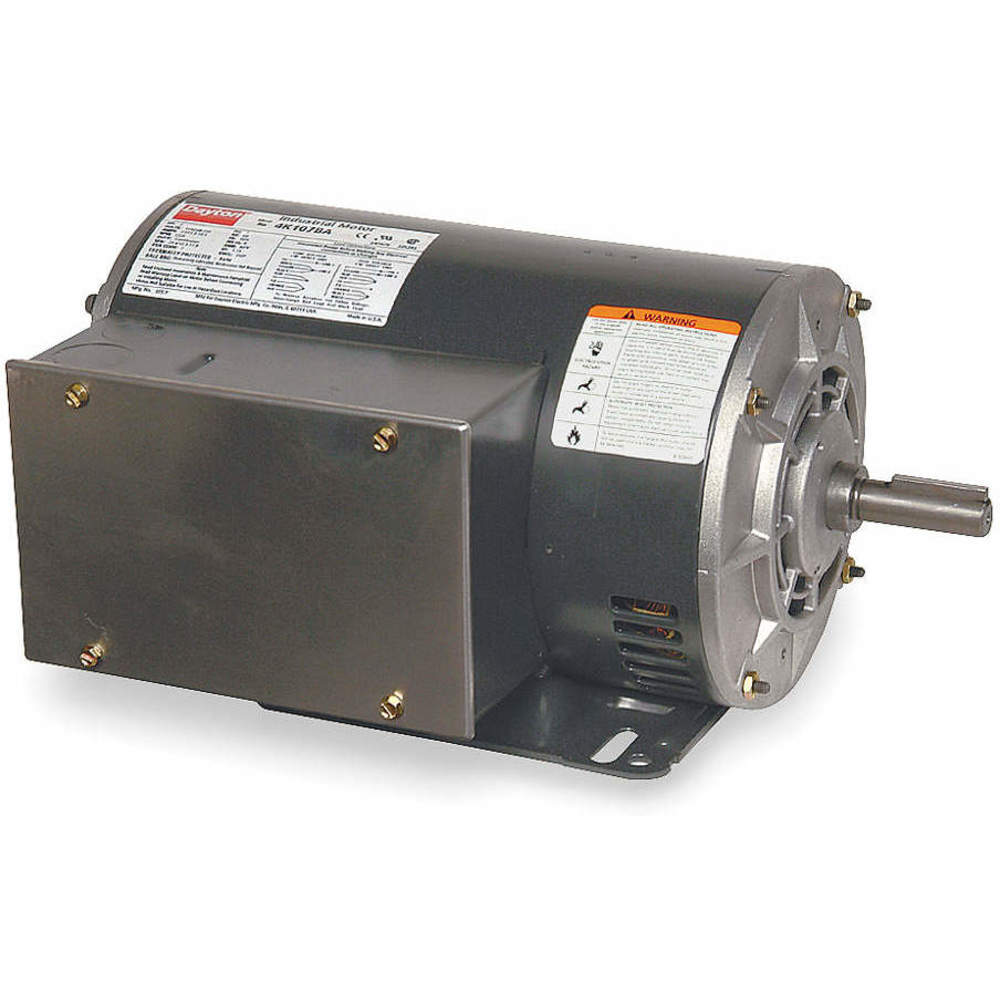

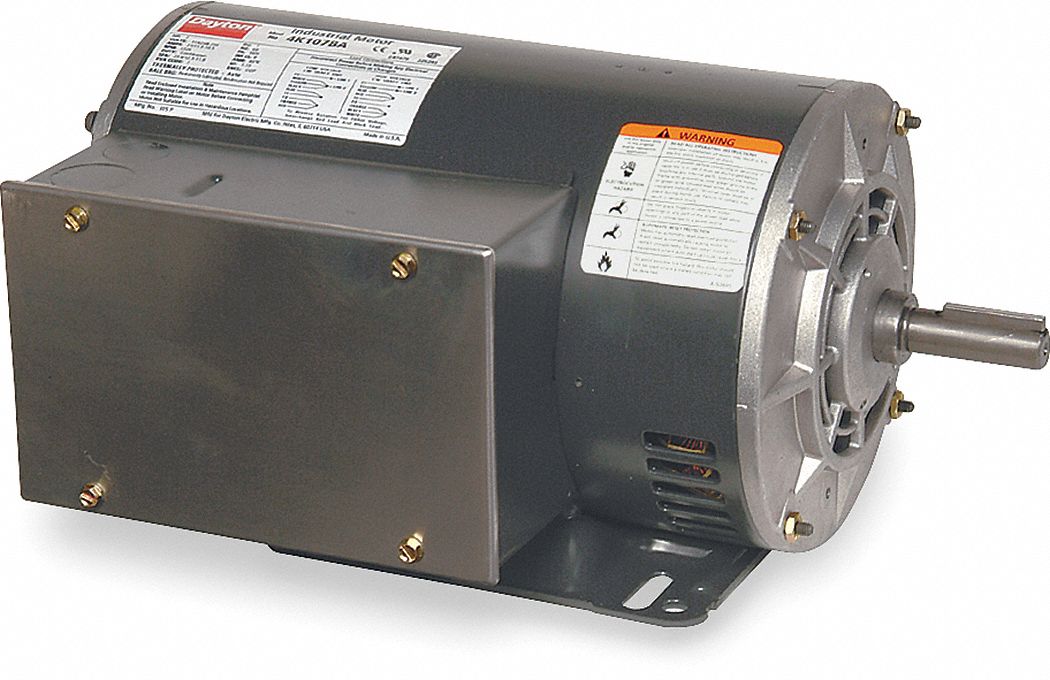

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 25.0/12.5, 145T Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed, Motor Frame Material Steel

Featuring a side-mounted conduit box, this motor is for use in clean, dry, nonhazardous environments.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Capacitor-Start/Run<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 3<br /> Nameplate RPM: 3480<br /> Frame: 145T<br /> Voltage: 115/230<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 25.0/12.5<br /> No. of Speeds: 1<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: All Angle<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Motor Service Factor: 1.15<br /> Motor Bearings: Ball<br /> Motor Frame Material: Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 7/8"<br /> Shaft Length: 2-1/4"<br /> Length Less Shaft: 10-3/4"<br /> Overall Length: 12-1/2"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 3001-3600<br /> Standards: UL, CSA, CE<br /> Duty: Continuous<br /> Motor Efficiency Group: Energy Efficient<br /> Nominal Efficiency: 83.0%<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 3001-3600<br />
