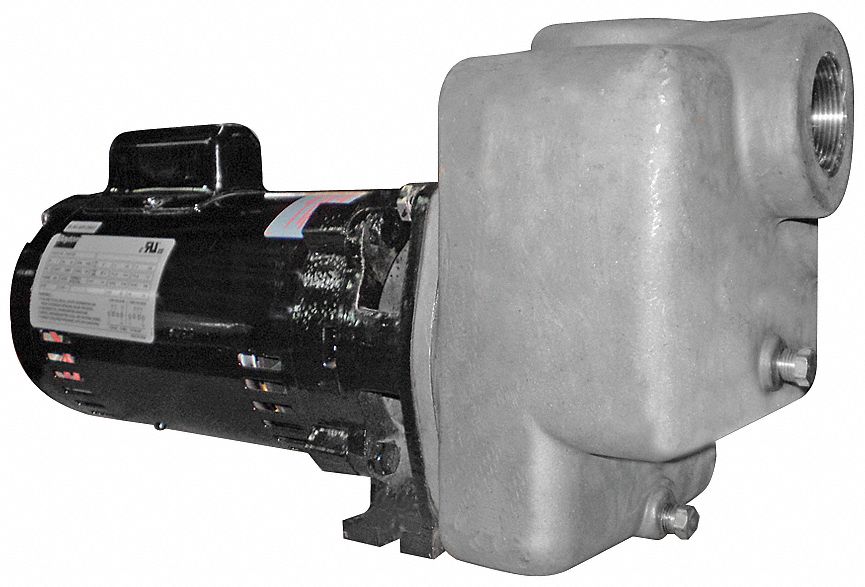

DAYTON . 5GUP2

<p><b>Specifications: </b><ul><li>Item:-Centrifugal Pump</li><li>HP:-1</li><li>Phase:-1</li><li>Voltage:-115/230</li><li>Amps:-14.4/7.2</li><li>Housing Material:-Stainless Steel</li><li>Impeller Material:-Stainless Steel</li><li>Wetted Materials:-Stainless Steel, Viton, Carbon, Ceramic</li><li>Hz:-60</li><li>RPM:-3450</li><li>Inlet:-1-1/2" NPT</li><li>Outlet:-1-1/2" NPT</li><li>Motor Enclosure:-ODP</li><li>NEMA/IEC Frame:-56J</li><li>Motor Type:-Capacitor Start Induction Run</li><li>Service Factor:-1.4</li><li>Volute Material:-Stainless Steel</li><li>Shaft Material:-Stainless Steel</li><li>Screw Material:-Zinc Plated</li><li>Seal Type:-Mechanical</li><li>Seal Material:-Carbon Ceramic-Viton</li><li>Seal Application:-Nonflammable and Nonabrasive Liquids Compatible with Seal Component Materials Up to 200 F</li><li>Max. Head:-90 ft.</li><li>Suction Lift:-20 ft.</li><li>Max. GPM @ Head:-76 gpm @ 10 ft.</li><li>Best Efficiency GPM @ Head:-45 gpm @ 66 ft.</li><li>Min. GPM @ Head:-23 gpm @ 80 ft.</li><li>Best Efficiency Range GPM @ Head:-39-51 gpm @ 70-58 ft.</li><li>Max. Liquid Temp.:-200 Degrees F</li><li>Max. Specific Gravity:-1</li><li>Max. Case Pressure:-165 psi</li><li>Max. Fluid Viscosity:-100 SSU</li><li>Inlet Pressure:-100 psi</li><li>Impeller Type:-Semi Open</li><li>Bearing Type:-Ball</li><li>Duty:-Continuous</li><li>Max. Dia. Solids:-1/8"</li><li>Port Rotation:-No</li><li>Dr</li><li>UNSPSC:-40151503</li></ul></p>

Centrifugal Pump, Phase Single, Pump Housing Material Stainless Steel, Horsepower 1 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 40 ft of Head (Maximum) 67 gpm, Flow Rate @ 60 ft of Head (Maximum) 49 gpm, Flow Rate @ 80 ft of Head (Maximum) 23 gpm, Maximum Feet of Head 90 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 76 gpm, Flow Rate @ 10 ft of Head (Maximum) 76 gpm WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Nickel (Metallic)
