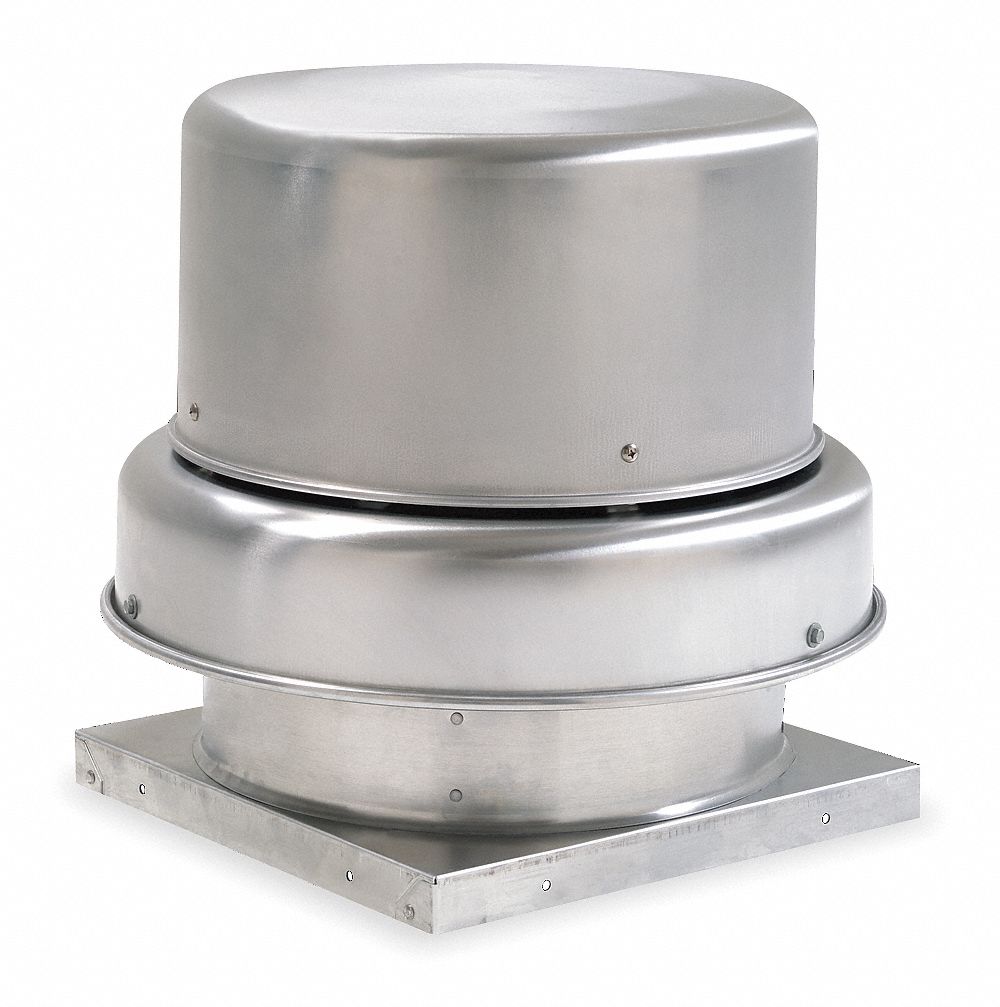

DOWNBLAST EXHAUST VENT, 8-1/4 IN.

DAYTON . 5DVR7-17CC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDAYTON
DimensionUnitinch
Extra Product NameDOWNBLAST EXHAUST VENT, 8-1/4 IN.
UNSPSC40101502
Weight23.8
WeightUnitlbs
height16.75
height_AttribOverall Height
length, width21.8
length_AttribHousing Length
moq, multiple, tierMinQty1, Phase1
MPN5DVR7-17CC
originalCurrency{'currency': 'CAD', 'tierPrice1': '692.13'}
qtyInStock0
SKUWWG16D531
tierPrice1502.35210678
width_AttribHousing Width
ItemCentrifugal Downblast Roof Exhaust Fan
AssemblyFully Assembled
Base DiameterNot Applicable
Base Width, Base Length17 in
Nameplate Voltage115V AC
Motor Horsepower1/20 hp
For High-Static Pressure Applications, High-Efficiency MotorNo
For Air TypeClean Air
Includes Motor, Includes Drive PackageYes
Maximum Static Pressure1/2 in wc
Wheel Material, Housing MaterialAluminum
Number of Speeds3
Overall Diameter, Overall Length, Overall Width21 3/4 in
Airflow @ 0 000 in SP, Exhaust Airflow @ 0 000 in SP495 cfm
Base Height1 3/4 in
Compatible Curb Grainger Part Number, Compatible Curb Manufacturer Part Number2ZV82, 5EFJ2
Compatible Damper Grainger Part Number3TZ50
Current2.0/1.6/1.3 A
Cutout Size12 in L x 12 in W
Electrical ConnectionPower Cord
Exhaust Airflow @ 0 250 in SP379 cfm
FeaturesFresh Outside Air is Drawn in Under the Motor Cover to Maximize Motor Life, NEMA 1 Junction Box Located in Motor Enclosure, Optional NEMA 1 and 4 Disconnects Available
Housing Length, Housing Width21.8 in
Maximum Ambient Temperature, Maximum Inlet Air Temperature130 Degrees F
Motor TypeShaded Pole
Power SourceElectric Corded
Safety FeaturesBirdscreen, Windband
Drive TypeDirect Drive
Wheel Diameter8 in
Base ShapeSquare
Mounting LocationRoof
Exhaust Airflow @ 0 500 in SP237 cfm
StandardsAMCA Sound and Air, CSA, UL/cUL 705
Overall Height16 3/4 in
ApplicationIndustrial and Commercial Applications
Brake Horsepower1/50 hp
Compatible Speed Control48C172
Cutout Length12 in
Damper Size9 1/2 x 9 1/2 in
Exhaust Airflow @ 0 125 in SP439 cfm
Exhaust Airflow @ 0 375 in SP314 cfm
Frequency60 Hz
Housing Material FabricationSpun
IncludesNEMA 1 Junction Box
Maximum Fan Speed, Motor Speed1,550 RPM
Mount TypeRoof Curb
Propeller Shaft Diameter1/2 in
