Dayton

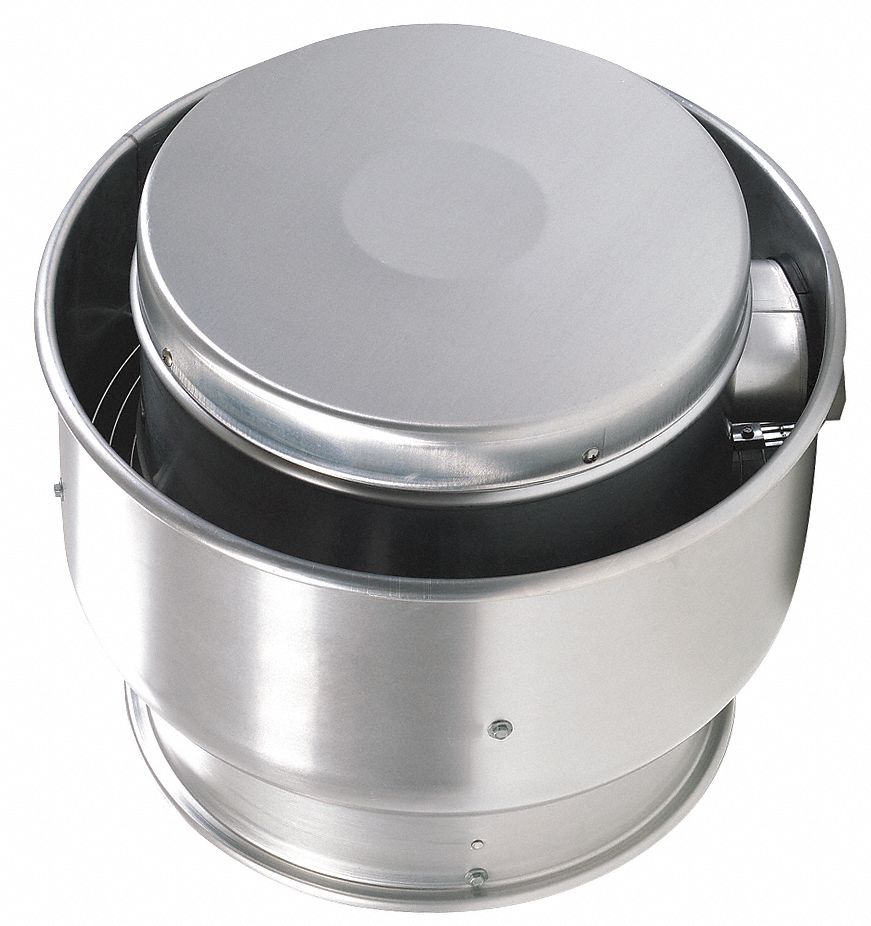

This ventilator is designed for use in restaurants and schools, and in commercial and industrial applications, to exhaust contaminated air from kitchen range hoods. A 1-pc. rolled aluminum windband is fully welded to the base, which creates a virtually leakproof seal between the ventilator and the mounting surface. The motor, the drive frame, and the blower wheel are isolated from the mounting base by the use of independent neoprene studs; the elimination of metal-to-metal contact greatly reduces overall noise. The motor compartment is isolated from the contaminated air stream, and is cooled by outside air pulled in through an oversized breather tube by the spinning action of the wheel.<br /><br /> Item: Upblast Ventilator<br /> Drive Package With Motor Included: No<br /> Drive Type - Roof Ventilators: Belt Drive<br /> Duty Rating - Roof Ventilators: Standard<br /> Base Square Size - Roof Ventilators: 22-1/8" x 22-1/8"<br /> Number of Speeds: 1<br /> Mounting Location - Roof Ventilators: Wall<br /> CFM Range: 2515 to 3996 @ 0.0" SP<br /> Wheel Dia.: 16-1/2"<br /> Item - Roof Ventilators: Upblast Ventilator<br /> RPM Range: 875 to 1390<br /> Base Height: 1-3/4"<br /> Motor HP Range: 1/4 to 1<br /> Overall Height: 28-7/8"<br /> Overall Dia.: 28-7/8"<br /> Shaft Dia. Sheave End: 3/4"<br /> Shaft Dia. Wheel End: 3/4"<br /> Max. Inlet Temp.: 300 Degrees<br /> Housing Material: Spun Aluminum<br /> Wheel Material: Aluminum<br /> Wheel Type: Backward Inclined Centrifugal<br /> Includes: NEMA 1 Junction Box, Mounting Plate<br /> Standards: UL/cUL 762, AMCA Sound & Air<br /> Dimension A: 22-1/8"<br /> Dimension B: 28-7/8"<br /> Dimension C: 26-3/8"<br /> Dimension D: 19-3/8"<br /> Dimension E: 19-3/8"
