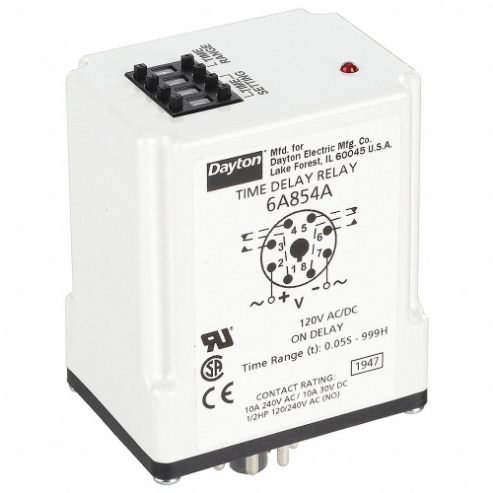

This programmable time delay relay offers an easy and accurate way to any time delay between 50ms and 999 hours with an On Delay function. Programming is accomplished by using a pushbutton thumbwheel to select one of seven built-in time ranges and to digitally set the time delay required. An LED indicates timing mode and time-out condition.<br /><br /> Item - Relay: Single Function Timing Relay<br /> Function - Timing Relay: On Delay<br /> Coil Volts: 12VDC<br /> AC Contact Rating - Relay: 10A @ 240V<br /> DC Contact Rating - Relay: 10A @ 30V<br /> Base Type - Plug In Relay: Octal<br /> Number of Pins - Relay: 8<br /> Mounting - Relay: Plug In<br /> Contact Form - Relay: DPDT<br /> Power Consumption - Relay: 3.0W<br /> Adjustment Method - Timer: Push Button, Rotary Knob<br /> Min. Time Setting - Timer: 0.05 sec.<br /> Max. Time Setting - Timer: 41 day 15 hr.<br /> Status Indicator: LED<br /> Contact Material: Silver Nickel<br /> Body Height - Relay: 2.90"<br /> Body Width - Relay: 2.40"<br /> Body Depth - Relay: 1.70"<br /> Overall Height - Relay: 3.00"<br /> Electrical Connection: Socket<br /> Socket: 5X852, 1EGP3, 1EGP5<br /> Hz - Electrical: 50 Hz, 60 Hz<br /> Standards: UR, CSA, CE<br />
