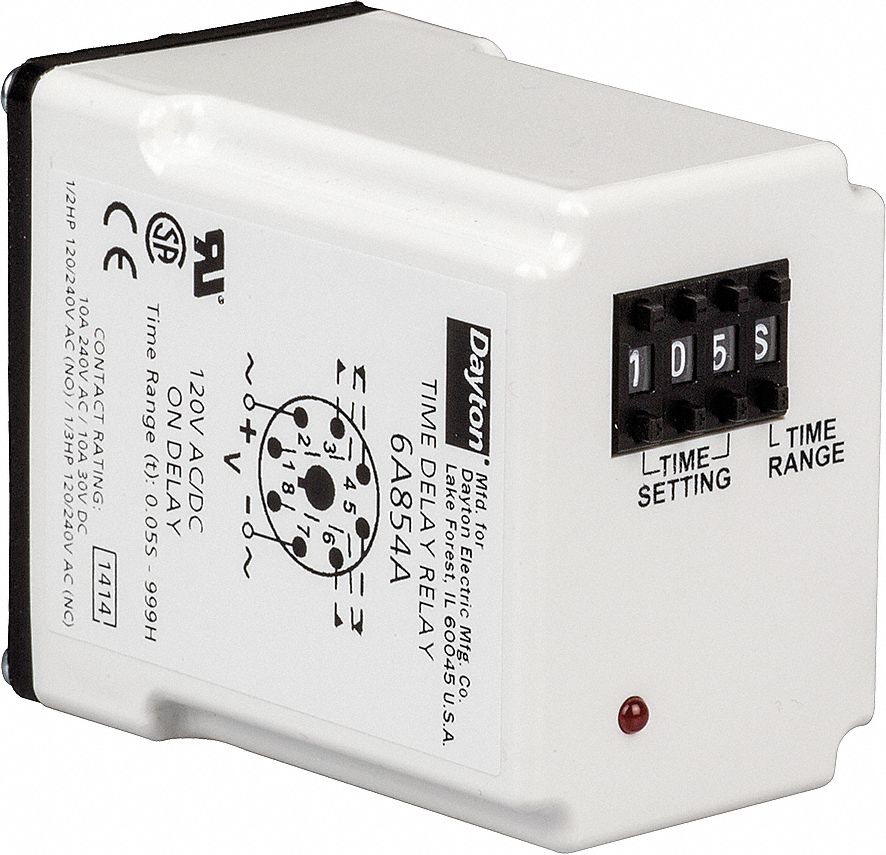

DAYTON . 5DPZ6

This programmable time delay relay offers an easy and accurate way to any time delay between 50ms and 999 hours with an On Delay function. Programming is accomplished by using a pushbutton thumbwheel to select one of seven built-in time ranges and to digitally set the time delay required. An LED indicates timing mode and time-out condition.<br /><br /> Item - Relay: Single Function Timing Relay<br /> Function - Timing Relay: On Delay<br /> Coil Volts: 240VAC<br /> AC Contact Rating - Relay: 10A @ 240V<br /> DC Contact Rating - Relay: 10A @ 30V<br /> Base Type - Plug In Relay: Octal<br /> Number of Pins - Relay: 8<br /> Mounting - Relay: Plug In<br /> Contact Form - Relay: DPDT<br /> Power Consumption - Relay: 3.0VA<br /> Adjustment Method - Timer: Push Button, Rotary Knob<br /> Min. Time Setting - Timer: 0.05 sec.<br /> Max. Time Setting - Timer: 41 day 15 hr.<br /> Status Indicator: LED<br /> Contact Material: Silver Nickel<br /> Body Height - Relay: 2.90"<br /> Body Width - Relay: 2.40"<br /> Body Depth - Relay: 1.70"<br /> Overall Height - Relay: 3.00"<br /> Electrical Connection: Socket<br /> Socket: 5X852, 1EGP3, 1EGP5<br /> Hz - Electrical: 50 Hz, 60 Hz<br /> Standards: UR, CSA, CE<br />
