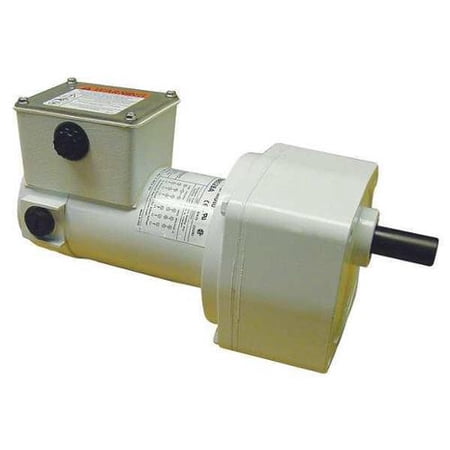

DC Gearmotor, Voltage 90VDC, Single Output Shaft, Nameplate RPM 250, Max. Torque 45.0 in.-lb., Overhung Load 201 lb., Input HP 1/4, Gear Ratio 10:1, Full Load Amps 2.30, Insulation Class F, TENV Enclosure, None Thermal Protection, All Position Except Shaft Up Mounting, Motor Type Permanent Magnet DC, White Epoxy Finish, For Washdown, Replacement Brushes Mfr. No. M1900010.47 Brush Assembly (2 Required Per Gearmotor) <br /> <b>Features</b> <ul> <li>Application : For Washdown</li> <li>Finish : White Epoxy</li> <li>Full Load Amps : 2.30</li> <li>Item : DC Gearmotor</li> <li>Max. Torque : 45.0 in.-lb.</li> <li>Nameplate RPM : 250</li> <li>Shaft Dia. (Dimension U) : 3/4&quot;</li> <li>Thermal Protection : None</li> <li>Bearings : Roller on Case, Ball on Motor</li> <li>Dimension X : 3-9/20&quot;</li> <li>Dimension XH : 11.84&quot;</li> <li>Dimension XL : 13.84&quot;</li> <li>Enclosure : TENV</li> <li>Gear Ratio : 10:1</li> <li>Height (Dimension O) : 4&quot;</li> <li>Housing Material : Die Cast Aluminum</li> <li>Input HP : 1/4</li> <li>Insulation Class : F</li> <li>Motor Type : Permanent Magnet DC</li> <li>Mounting : All Position Except Shaft Up</li> <li>No Load RPM : 256</li> <li>Overall Length : 13-7/8&quot;</li> <li>Rotation : Reversible</li> <li>Shaft Length (Dimension V) : 1-7/8&quot;</li> <li>Shaft Orientation : Parallel</li> <li>Voltage : 90VDC</li> <li>Starting Torque : 851 in.-lb.</li> <li>Seals : Lip Type, Stainless Steel with Spring</li> <li>Standards : UL Recognized, CSA, CE</li> <li>Brushes : Externally Replaceable</li> <li>Gear Case : Die Cast Aluminum</li> <li>Gear Material : Hardened Steel</li> <li>Lubrication : Permanent Heavy Duty Gear Oil</li> <li>Shaft : Single Output</li> <li>Reversible Shaft Output : No</li> <li>Replacement Brushes : Mfr. No. M1900010.47 Brush Assembly (2 Required Per Gearmotor)</li> <li>Length Less Shaft : 12&quot;</li> <li>Max. Ambient Temp. : 40 Degrees C</li> <li>Keyway Size : 3/16&quot; Square x 1&quot;</li> <li>Overhung Load : 201 lb.</li> <li>Gear Type : Helical and Spur</li> </ul>
