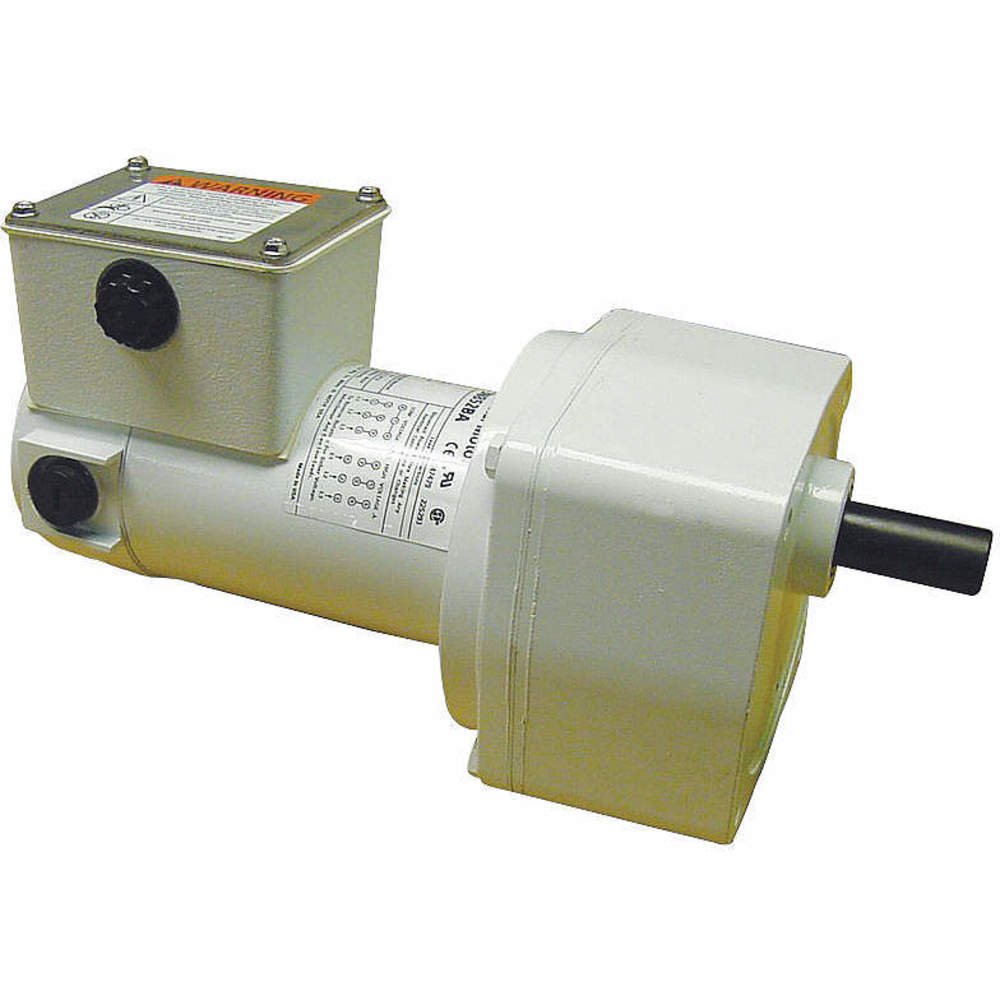

Dayton 5CJC4 | Dc Gearmotor 83 Rpm 90v Tenv | Raptor Supplies Worldwide

DC Gearmotor, Voltage 90VDC, Shaft Orientation Parallel, Reversible Shaft Output No, Shaft Single Output, Nameplate RPM 83, No Load RPM 94, Max. Torque 155 in.-lb., Starting Torque 2310 in.-lb., Overhung Load 267 lb., Input HP 1/4, Gear Ratio 29:1, Full Load Amps 2.70, Insulation Class F, Enclosure TENV, Thermal Protection None, Max. Ambient Temp. 40 Degrees C, Rotation Reversible, Mounting All Position Except Shaft Up, Motor Type Permanent Magnet DC, Motor Frame 32, Length Less Shaft 12", Overall Length 13-7/8", Keyway Size 3/16" Square x 1", Bearings Roller on Case, Ball on Motor, Lubrication Permanent Heavy Duty Gear Oil, Brushes Externally Replaceable, Finish White Epoxy, Gear Material Hardened Steel, Gear Type Helical and Spur, Gear Case Die Cast Aluminum, Seals Lip Type, Stainless Steel with Spring, Housing Material Die Cast Aluminum, Application For Washdown, Standards UL Recognized, CSA, CE, Replacement Brushes Mfr. No. M1900010.47 Brush Assembly (2 Required Per Gearmotor), RPM
