DAYTON . 5AE80

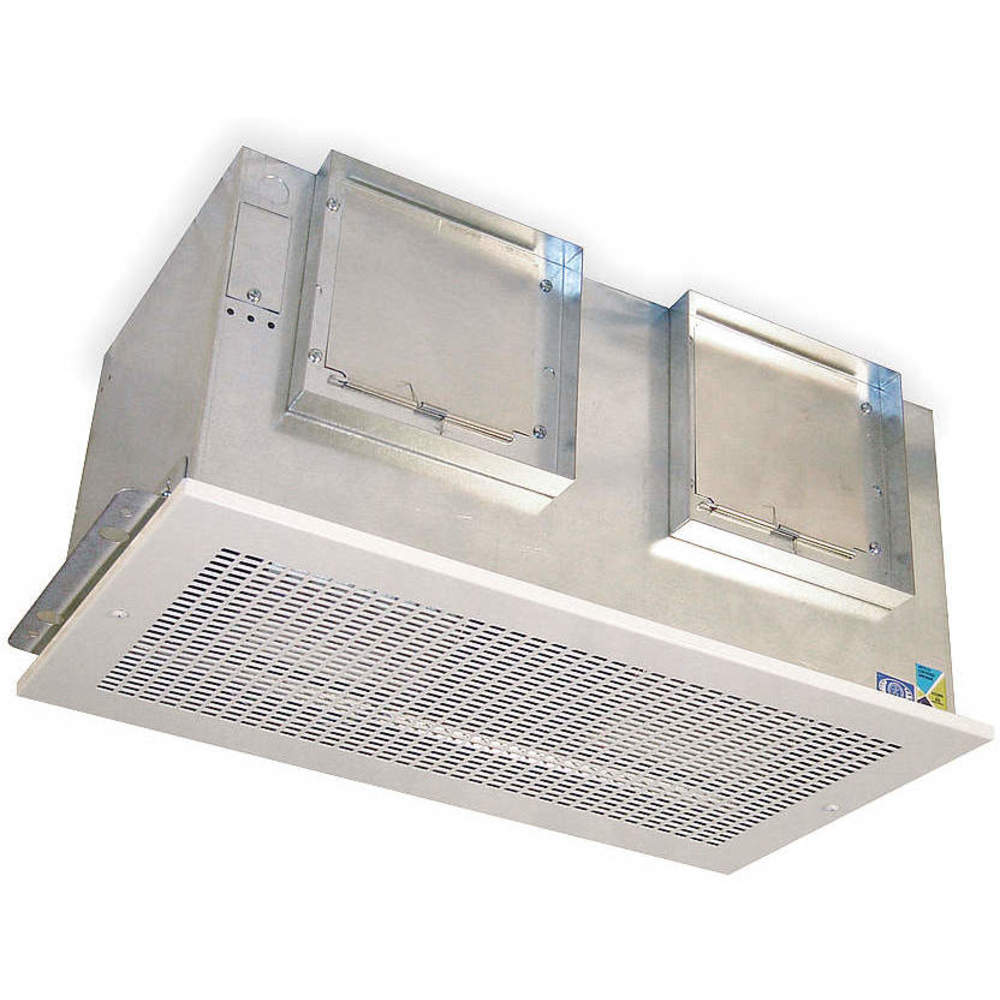

Acoustic insulation absorbs sound for quiet, high-performance ventilation of bathrooms, meeting rooms, utility rooms, and offices. Grille and spring-loaded backdraft damper operates rattle-free. Exhaust outlet can be rotated from horizontal to vertical discharge. External electrical access reduces installation time. Steel housing with electrical junction box and disconnect. Thermally protected motor. Power assembly is removable. UL and C-UL Listed for above tub/shower when connected to a GFCI branch-protected circuit.<br /><br /> Item: Ceiling Ventilator<br /> Singlewide / Doublewide: Doublewide<br /> Insulated: Yes<br /> CFM @ 0.000-In. SP: 1455<br /> CFM @ 0.100-In. SP: 1414<br /> CFM @ 0.125-In. SP: 1404<br /> CFM @ 0.250-In. SP: 1353<br /> CFM @ 0.375-In. SP: 1307<br /> CFM @ 0.500-In. SP: 1262<br /> CFM @ 0.625-In. SP: 1218<br /> CFM @ 0.750-In. SP: 1174<br /> Sones @ 0.000-In. SP @ 5 Ft.: 9.7<br /> Sones @ 0.100-In. SP @ 5 Ft.: 9.7<br /> Sones @ 0.125-In. SP @ 5 Ft.: 9.7<br /> Sones @ 0.250-In. SP @ 5 Ft.: 9.6<br /> Voltage: 115VAC<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 7.40<br /> Number of Speeds: 1<br /> Watts: 786<br /> Motor RPM: 1450<br /> Motor Type: Shaded Pole<br /> Motor Enclosure: Open Dripproof<br /> Motor Insulation: Class B<br /> Max. Inlet Temp.: 104 Degrees F<br /> Housing Height: 14-1/2"<br /> Housing Width: 14-3/8"<br /> Housing Length: 23-3/4"<br /> Discharge Height: 8"<br /> Discharge Width: 18-3/4"<br /> Grille Length: 25"<br /> Grille Width: 16-3/8"<br /> Grille Material: Aluminum<br /> Grille Color: White<br /> Mounting Position: Ceiling, Horizontal or Vertical<br /> Housing Material: Galvanized Steel<br /> Wheel Material: Polypropylene<br /> Speed Control: 48C173<br /> Standards: UL/cUL 507, AMCA Air and Sound, CSA Certified Motor<br /> For Use With: General Ventilation Applications<br /> Includes: Backdraft Damper, Hardware and Mounting Brackets<br /> Recommended Accessories: 48C173<br />
