Dayton

Dayton . 56MW64

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku, MPN56MW64
UPCNone
UnitOfMeasureEA
Weight65
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height33.7
jsonUrlData924526ffbdad25e5923b
length, width32.4
moq, multiple, tierMinQty1, Number of Speeds1
qtyInStock14
qtyInStockOverride-2
SKUG7795843
tierPrice1751.54
urlhttps://www.zoro.com/dayton-upblast-ventilator-14-34-dia-wheel-56mw64/i/G7795843/
Item - Roof VentilatorsUpblast Ventilator
Drive Package With Motor Included, Includes Motor, For High-Static Pressure Applications, Includes Drive PackageNo
Duty Rating - Roof VentilatorsStandard
Drive Type - Roof VentilatorsBelt Drive
Mounting Location - Roof VentilatorsRoof, Wall
Base Size - Roof Ventilators26 in x 26 in

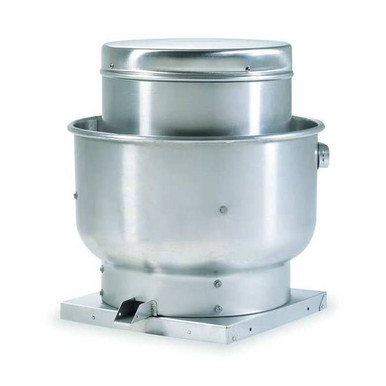

ItemCentrifugal Upblast Roof Exhaust Fan
CFM Range998 to 3125 @ 0.0 in SP
Wheel Dia, Wheel Diameter14 3/4 in
Wheel MaterialAluminum
Base ShapeSquare
Mounting OrientationHorizontal, Vertical
Maximum Motor Speed, For Fan Speed (Motor Sold Separately)1,390 RPM
For Airflow (Dependent on Motor)998 cfm to 3,125 cfm
Base DiameterNot Applicable
Base Dimension26 in Square
ApplicationIndustrial and Commercial Buildings, Restaurants, Schools
Maximum Airflow3,125 cfm
Cutout Length21.5 in
Maximum Static Pressure1 3/4 in wc
Minimum Motor Horsepower1/4 hp
Maximum Ambient Temperature300 Degrees F
For Air TypeKitchen Air
Minimum Airflow998 cfm
Wheel & Housing MaterialAluminum / Aluminum
For Motor Horsepower (Motor Sold Separately)1/4 hp to 1 hp
Maximum Motor Horsepower1 hp
Cutout Size21.5 in L x 21.5 in W
AssemblyUnassembled
Maximum Noise Level @ 5 Feet14.2 sones
Grease CapacityStandard Grease
Maximum Inlet Air Temperature400 Degrees F
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG779584311411 @ $751.54
grainger.caGFN56MW6411
simsupply.comZO-G77958431711 @ $889.97
