Dayton

Dayton . 56MW62

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku, MPN56MW62
UnitOfMeasureEA
Weight65
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height33.8
jsonUrlData924526ffbdad25e5923b
length, width32.6
moq, multiple, tierMinQty1, Number of Speeds1
qtyInStock16
qtyInStockOverride-2
SKUG7795773
tierPrice11086.05
urlhttps://www.zoro.com/dayton-sq-alu-26l-26w-roofwall-exhst-fan-56mw62/i/G7795773/
Item - Roof VentilatorsUpblast Ventilator
Drive Package With Motor Included, Includes Motor, Includes Drive PackageNo
Duty Rating - Roof VentilatorsStandard
Drive Type - Roof VentilatorsBelt Drive
Mounting Location - Roof VentilatorsRoof, Wall
Base Size - Roof Ventilators26 in x 26 in

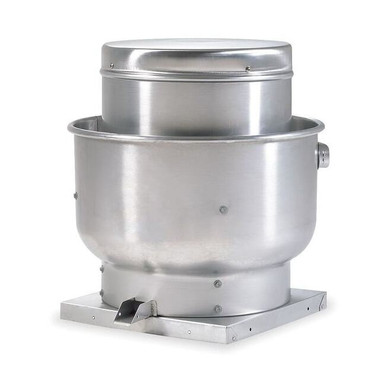

ItemCentrifugal Upblast Roof Exhaust Fan
Wheel MaterialAluminum
Wheel Dia16 in
CFM Range1093 to 2722 @ 0.0 in SP
Minimum Motor Horsepower1/4 hp
Minimum Motor Speed1,065 RPM
Maximum Inlet Air Temperature400 Degrees F
Wheel & Housing MaterialAluminum / Aluminum
Cutout Length26 in
ApplicationIndustrial and Commercial Buildings, Restaurants, Schools
AssemblyUnassembled
For Airflow (Dependent on Motor)1,093 cfm to 2,722 cfm
For Motor Horsepower (Motor Sold Separately)1/4 hp to 1 hp
Maximum Noise Level @ 5 Feet14.4 sones
Base DiameterNot Applicable
Maximum Motor Speed1,690 RPM
Base Dimension26 in Square
For High-Static Pressure ApplicationsYes
For Fan Speed (Motor Sold Separately)1,065 RPM to 1,690 RPM
Minimum Airflow1,093 cfm
For Air TypeKitchen Air
Maximum Motor Horsepower1 hp
Cutout Size26 in L x 26 in W
Maximum Static Pressure2 1/4 in wc
Maximum Airflow2,722 cfm
Base ShapeSquare
Wheel Diameter16 1/2 in
Grease CapacityStandard Grease
Maximum Ambient Temperature300 Degrees F
Mounting OrientationHorizontal, Vertical
Country of Origin (subject to change)United States
