Dayton

Dayton . 55FG73

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku, MPN55FG73
UPC700202002504
UnitOfMeasureEA
Weight380
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
extendedLead20
height39
jsonUrlData924526ffbdad25e5923b
length57.5
moq, multiple, tierMinQty1, Phase1
perItemShipping150.00
qtyInStock, qtyInStockOverride0
qtySourceqtyInStockOverride
SKUG3723658
tierPrice12856.0
urlhttps://www.zoro.com/dayton-gas-unit-heater-ng-350-000-5-600-cfm-direct-propeller-34-in-55fg73/i/G3723658/
width48.5
Promotion RestrictionNot eligible for promotion
BtuH Input350,000
Gas TypeNG
Combustion TypeField Convertible
BtuH Output290,500
Gas Connection, Mounting Hole Diameter, Gas Connection Size3/4 in
Fan TypePropeller
Air Flow5,600 cfm
Height, Overall Height34 in

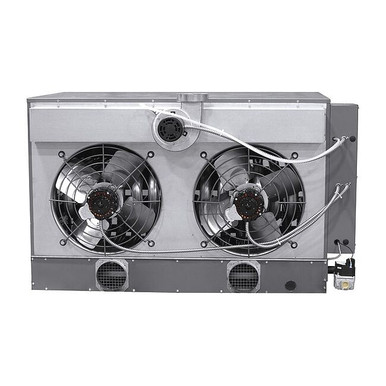

ItemGas Wall and Ceiling Unit Heater
Full Load Amps, Maximum Amperage13.8 A
Ignition System, Ignition TypeDirect Spark
Air Temp Rise, Air Temperature Rise47 Degrees F
Heater Voltage115 V AC
Vent, Vent TypePower
O C Mounting, Off Center Mounting48 5/8 in
Primary Heat Exchanger Material20 ga Aluminized Steel
Indoor Air Discharge Height24 1/2 in
Installation Height8 to 20 ft
Width, Overall Width55 1/4 in
StandardsETL, ETLc Certified
Flue Dia, Flue Diameter6 in
Drive TypeDirect
Hz60
Indoor Air Discharge Width48 3/4 in
Depth, Overall Depth44 3/4 in
Burner Air Inlet Size5 in
Manufacturers Warranty Length10 yr on Heat Exchanger, Burners, And Flue Collector. All Other Parts are 1 yr
Heating MethodFan Forced
Heating Capacity Output, Heat Output290,500 BtuH
FeaturesPower Vented Propeller Style Commercial Tubular Unit Heater Suitable For Standard or Separated Combustion Applications
Profile TypeStandard
Fuel Type, Combustion TypeNatural Gas, Field Convertible
Mounting Height8 ft to 20 ft
Motor TypePSC
Frequency60 Hz
Heating Capacity Input350,000 BtuH
Air Flow DirectionHorizontal
Heat Exchanger Gauge20 ga
Thermostat IncludedNo
Motor Speed1,050 RPM
Gas Connection TypeNPT, Male
Fan Diameter18 in
Overall Dimensions - H x W x D34 in x 55 1/4 in x 44 3/4 in
Thermal Efficiency Rating83%
IncludesAdjustable Louvers
Mounting LocationCeiling
Heat Exchanger MaterialAluminized Steel
Product TypeStandard-Profile Unit Heater
Fuel TypeNatural Gas
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3723658111 @ $2856.00
simsupply.comZO-G372365811711 @ $3287.24
Grainger55FG73111 @ $2841.74
