Dayton

Dayton . 55MJ91

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku, MPN55MJ91
UnitOfMeasureEA
Voltage230
Weight409
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
extendedLead10
extendedQty-2
height28
jsonUrlData924526ffbdad25e5923b
length68
moq, multiple, tierMinQty1, Phase1
perItemShipping250.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG8681604
tierPrice14946.15
urlhttps://www.zoro.com/dayton-floor-drill-press-belt-drive-1-hp-230-v-16-in-swing-variable-speed-55mj91/i/G8681604/
width31

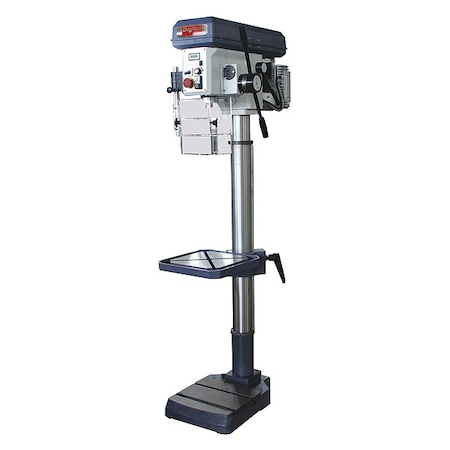

ItemFloor Drill Press
Drive TypeBelt
Swing16 in
Motor HP, Horsepower1 hp
Chuck Size, Chuck Capacity5/8 in
Number of Speeds, Number of Spindle Speeds, Speed ControlVariable
Capacity Steel, Drilling Capacity in Steel1 1/16 in
Spindle Speed80 to 3500 rpm
Power Down Feed Included, Table Slot, Guard IncludedYes
Overall Height, Maximum Overall Height68 in
Amps AC4.4
Hz60
Capacity Cast Iron1 3/16 in
Spindle Taper3MT
Max Spindle To Base, Maximum Spindle-to-Base Height50 in
Corded/Cordless, Power SourceCorded
IncludesChuck with Key, Power Feed
Overall Depth28 in
Base Size13-3/4 in x 20-3/4 in
Spindle to Table, Maximum Spindle-to-Table Height36 1/2 in
Table Work Surface14-1/4 in x 13-1/4 in
Number of T-Slots2
Table Slot Size14 mm
Spindle Travel4 1/4 in
Column Dia, Column Diameter3 5/8 in
Overall Width18 in
Tilting AngleNon-Tilting
Quill Dia, Quill Diameter2 in
Table ShapeRectangular
Spindle Speed Range80 RPM - 3,500 RPM
Table Length14 1/4 in
Table Width13 1/4 in
Maximum Spindle Speed3,500 RPM
Speed Range80 to 3,500 RPM
Minimum Spindle Speed80 RPM
Current4.4 A
Drill Press TypeFloor Stand
Drill Spindle Travel4 in - 5 in
Motor Voltage230V AC ; Single-Phase
Drill Press ApplicationBoring, Countersinking, Drilling, Reaming, Tapping
Spindle-to-Column Distance8 in
Number of Pieces3
Base Height13 3/4 in
Base Length20 3/4 in
Chuck StyleKeyed
Primary Material ApplicationMetal
Coolant SystemNo
Nominal Voltage230V AC
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG8681604111 @ $4946.15
Grainger55MJ9111
