Dayton

Dayton . 54ZW33

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku, MPN54ZW33
UPCNone
UnitOfMeasureEA
Voltage240
Weight346
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario, Number of Pieces7
countryOfOriginCN
extendedLead5
height15.2
jsonUrlData924526ffbdad25e5923b
length57.7
moq, multiple, tierMinQty11
perItemShipping150.00
qtyInStock, qtyInStockOverride0
qtySourceqtyInStockOverride
SKUG9661533
tierPrice12257.0
urlhttps://www.zoro.com/dayton-floor-drill-press-belt-drive-1-12-hp-240-v-20-in-swing-16-speed-54zw33/i/G9661533/
width28.6

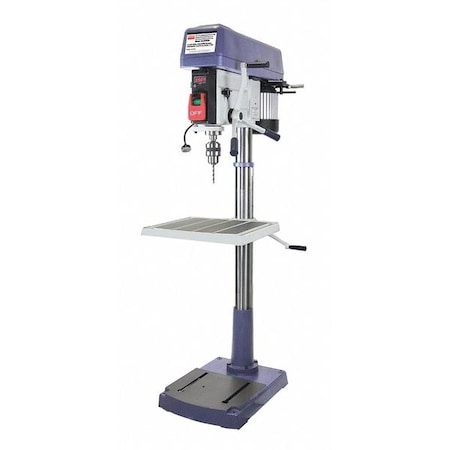

ItemFloor Drill Press
Drive TypeBelt
Swing20 in
Motor HP, Horsepower1 1/2 hp
Chuck Size, Chuck Capacity5/8 in
Number of Speeds, Number of Spindle Speeds16
Capacity Steel, Drilling Capacity in Steel3/4 in
Spindle Speed120 to 3605 rpm
Amps AC4.5
Overall Width20 1/2 in
Spindle to Table, Maximum Spindle-to-Table Height26 in
Table Work Surface19-1/4 in x 18-3/8 in
Corded/Banded, Corded/Cordless, Power SourceCorded
Overall Height, Maximum Overall Height70 in
Base Size24-1/2 in x 17 in
Spindle Travel6 in
Table Slot Size14 mm
Tilting Angle, Table Tilt45 Degrees
Power Down Feed Included, Coolant System, Guard Included, Radial ArmNo
Overall Depth34 1/2 in
Drilling Capacity WoodNot Specified
IncludesChuck Key Holder, Chuck with Key, Depth Stop Gauge, LED Readout for Spindle Speeds, Manual Spindle Reversing Switch, V-Belts
Column Dia3 11/32 in
Phase, Number of T-Slots3
Quill Dia, Quill Diameter2 7/16 in
Hz60
Capacity Cast Iron1 in
Spindle Taper3MT
Max Spindle To Base, Maximum Spindle-to-Base Height43 in
Spindle Speed Range120 RPM - 3,605 RPM
Speed ControlFixed
Table Width18 3/8 in
Drill Press ApplicationBoring, Countersinking, Drilling, Reaming
Maximum Spindle Speed3,605 RPM
Spindle-to-Column Distance10 in
Motor Voltage230V AC ; Three-Phase
Primary Material ApplicationMetal, Wood
Column Diameter3 3/8 in
Speed Range120 to 3,605 RPM
Table Length19 1/4 in
Speed AdjustmentStep Pulley
Current4.5 A
Base Height24 1/2 in
Reversible, Table SlotYes
Table ShapeRectangular
Drill Spindle Travel6 in - 7 in
Base Length17 in
Minimum Spindle Speed120 RPM
Drill Press TypeFloor Stand
Chuck StyleKeyed
Nominal Voltage230V AC
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9661533111 @ $2257.00
Grainger54ZW3311
