Dayton

Dayton . 54ZW32

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku, MPN54ZW32
UPCNone
UnitOfMeasureEA
Voltage120/240
Weight289
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginCN
height15.2
jsonUrlData924526ffbdad25e5923b
length58
moq, multiple, tierMinQty1, Phase1
perItemShipping174.00
qtyInStock19
qtyInStockOverride-2
SKUG9661488
tierPrice12492.46
urlhttps://www.zoro.com/dayton-floor-drill-press-belt-drive-1-12-hp-120240-v-20-in-swing-16-speed-54zw32/i/G9661488/
width28.6

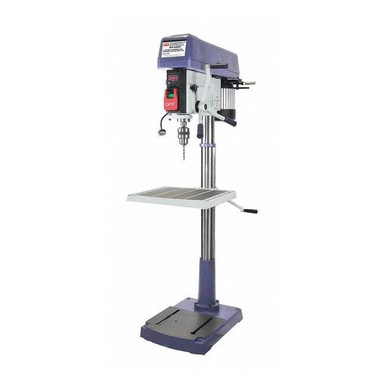

ItemFloor Drill Press
Drive TypeBelt
Swing20 in
Motor HP, Horsepower1 1/2 hp
Chuck Size, Chuck Capacity5/8 in
Number of Speeds, Number of Spindle Speeds16
Capacity Steel, Drilling Capacity in Steel3/4 in
Spindle Speed120 to 3605 rpm
IncludesChuck Key Holder, Chuck with Key, Depth Stop Gauge, LED Readout for Spindle Speeds, V-Belts
Hz60
Amps AC14.2/7.1
Spindle to Table, Maximum Spindle-to-Table Height26 in
Table Work Surface19-1/4 in x 18-3/8 in
Spindle Travel6 in
Max Spindle To Base, Maximum Spindle-to-Base Height43 in
Corded/Banded, Corded/Cordless, Power SourceCorded
Power Down Feed Included, Radial Arm, Guard Included, Coolant SystemNo
Drilling Capacity WoodNot Specified
Overall Width20 1/2 in
Tilting Angle, Table Tilt45 Degrees
Table Slot Size14 mm
Column Dia3 11/32 in
Overall Height, Maximum Overall Height70 in
Base Size24-1/2 in x 17 in
Spindle Taper3MT
Capacity Cast Iron1 in
Number of T-Slots3
Quill Dia, Quill Diameter2 7/16 in
Overall Depth34 1/2 in
Speed ControlFixed
Maximum Spindle Speed3,605 RPM
Speed AdjustmentStep Pulley
Spindle Speed Range120 RPM - 3,605 RPM
Table Length19 1/4 in
Drill Press TypeFloor Stand
Chuck StyleKeyed
Table SlotYes
Motor Voltage115/230V AC ; Single-Phase
Table Width18 3/8 in
Spindle-to-Column Distance10 in
Minimum Spindle Speed120 RPM
Drill Press ApplicationBoring, Countersinking, Drilling, Reaming
Column Diameter3 3/8 in
Speed Range120 to 3,605 RPM
Base Length17 in
Current14.2/7.1 A
Drill Spindle Travel6 in - 7 in
Number of Pieces6
Table ShapeRectangular
Primary Material ApplicationMetal, Wood
Base Height24 1/2 in
Nominal Voltage115/230V AC
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG966148811911 @ $2492.46
simsupply.comZO-G966148811011 @ $2891.15
Grainger54ZW3211
