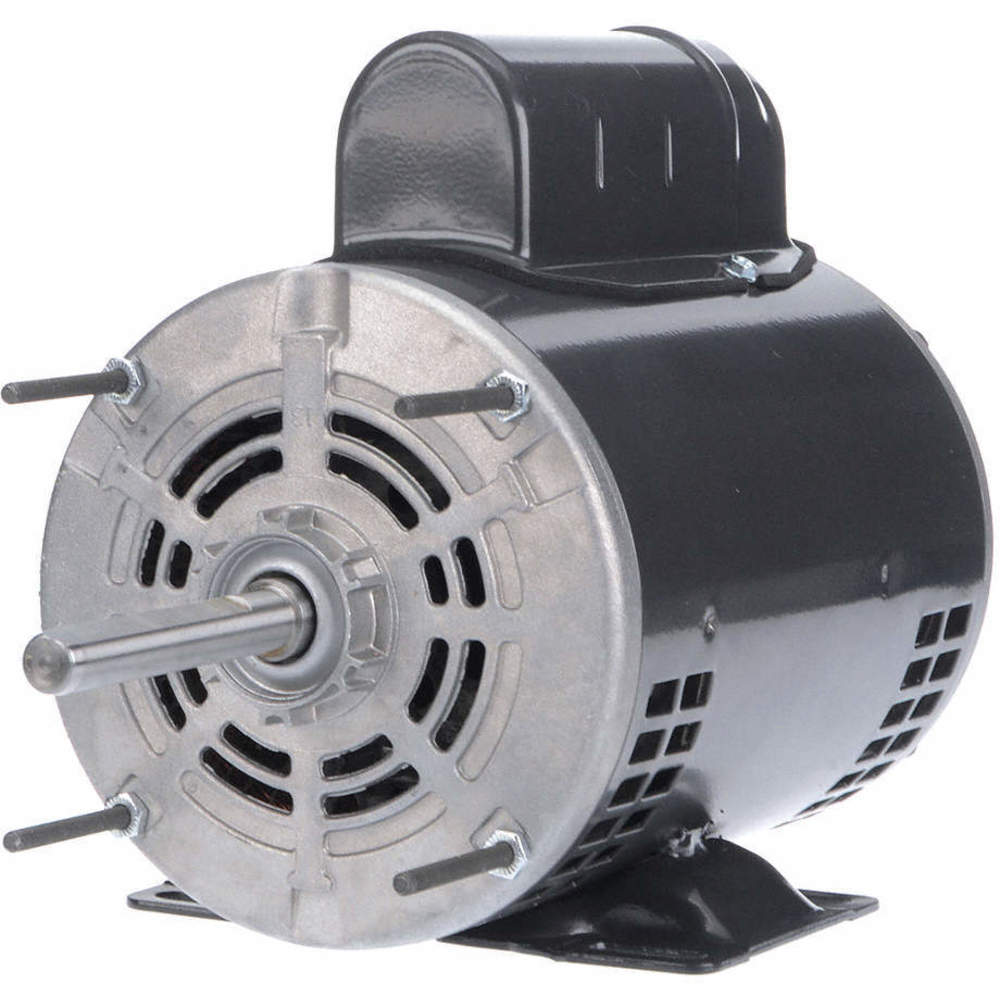

MOTOR,PSC,3/4 HP,1725,115/230V,48Z,

DAYTON . 4YU29

Gallery

Attributes

Brand name, Manufacturer nameDAYTON
ManufacturerDAYTON CAI - DAYTON Dayton Dayton Electric Manufacturing Co.
DimensionUnitinch
Extra Product NameMOTOR,PSC,3/4 HP,1725,115/230V,48Z,
UNSPSC26101602
Voltage115/230 230.0
Weight24.2 0.0551155655000 1.56 2.01 25.0 25.00
WeightUnitlbs
diameter, height, width5.625
height_Attrib, width_AttribBody Dia.
length8.875
length_AttribLength Less Shaft
moq, multiple, Number of Shafts, Phase, No of Speeds, Case, Item_package_quantity, NumberOfItems, PackageQuantity1
MPN, Part Number, Model, ModelNumber, Model_number, Mpns, PartNumber, Part_number, StrippedMpns4YU29
originalCurrency{'currency': 'CAD'}
qtyInStock0
SKUWWG4YU29
Product GroupBISS
ItemDirect Drive Blower Motor
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignPermanent Split Capacitor
Nameplate RPM1,725
Frame48Z
Usable @ 208V, Usable @ 200VNo
Motor Thermal ProtectionAuto
Motor Service Factor1.00
Motor Shaft RotationCW/CCW
Duty CycleContinuous
Motor Mounting TypeRigid Base
Shaft Length3"
Motor Shaft DesignFlat
Length Less Shaft8-7/8"
Body Dia5-5/8"
Mounting Stud Pattern3 5/8 in x 3 5/8 in
Mounting Stud LocationShaft End
StandardsCSA Certified Motor
IncludesCapacitor
Motor ApplicationHVAC/R
HP3/4
Full Load Amps7.0/3.5
Replacement ForMfr. No. 4HZ45, 4HZ47
Hz60
Ins ClassB
Max Ambient Temp40 Degrees C
Motor Enclosure DesignOpen Air-Over
Motor Mounting PositionAll Angle
Shaft Dia1/2"
Motor BearingsBall
Conduit Box PositionF3
Mounting Holes(4) #10-32
Stud Quantity4
Bolt Circle Dia5-1/8"
Stud Size#10-32
Capacitor RequiredIncluded
ASINB000LEUUN2 B07HLVR6GR
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount293.99 302.99 327.50
AsinB000LEUUN2 B01BG9VH5U B07HLVR6GR
BindingMisc.
BrandCAI - DAYTON Dayton
Bullet_point1-Speed; Ball Bearings; 48Z Frame; 5 5/8" Diameter Motor 3/4 hp 1725 RPM, 7.0/3.5 amps, 115/230 Volts 60 hz. Auto Overload Protection; Rigid Base; 4 studs shaft end CSA Certified; UL Rated; 1 Year Manufacture Warranty Shaft 1/2" x 3"; Rotation = Reversible; SF = 1.0
CatTools & Home Improvement
CatId228013
CatTree228013 3753381 468240 495266
ClassificationId16310161 6372405011
CurrencyCodeUSD
DisplayNameCategories Fan Motors
EAN, EANList, UPC, UPCList663001342588
Feature3/4 hp 1725 RPM, 7.0/3.5 amps, 115/230 Volts 60 hz.
Height1083 18 2.0 2.00 21.0 481 64 72 9.6 9.60
Horsepower0.75
Identifier0663001342588 0696334099850 663001342588 696334099850
IdentifierTypeEAN UPC
IsBrandQueryTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_nameDayton 3/4 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1725 Nameplate RPM, 115/230 Voltage Motor, PSC, 3/4 HP, 1725, 115/230V, 48Z, OAO
Item_package_weight2.01
Item_type_keywordelectric-fan-motors industrial-products
Item_weight1.56 25.0
Keyword115 B-4-7
Label, Publisher, StudioCAI - DAYTON DAYTON Dayton Dayton Electric Manufacturing Co.
Length14.1 14.10 18.0 2.0 2.00 21
Linkhttps://m.media-amazon.com/images/I/51336VrepFL._SL75_.jpg https://m.media-amazon.com/images/I/51336VrepFL.jpg https://m.media-amazon.com/images/I/71p9j+quyTL.jpg https://www.amazon.com/gp/bestsellers/hi https://www.amazon.com/gp/bestsellers/hi/6372405011
ManDayton
Material, MaterialTypeOao
ProductCategoryId16412031 6372405011 biss_display_on_website home_improvement_display_on_website
ProductGroupBISS BISS Basic Home Improvement
ProductTypeELECTRIC_MOTOR
ProductTypeNameELECTRIC_MOTOR HOME_LIGHTING_ACCESSORY LAB_SUPPLY MECHANICAL_COMPONENTS
Product_descriptionContinuous Duty, Open Air Over, Class B Insulation. Replacement Motor for 306487, 4HZ45, 4HZ47 Dayton Ventilators. Permanent split capacitor motors include capacitor; designed specifically as replacement motors for Dayton ventilators.<br /><br /> Item: Direct Drive Blower Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Direct Drive Fan/Blower<br /> Motor Design: Permanent Split Capacitor<br /> Motor Enclosure Design: Open Air-Over<br /> HP: 3/4<br /> Nameplate RPM: 1725<br /> Voltage: 115/230<br /> Full Load Amps: 7.0/3.5<br /> Hz: 60<br /> Phase: 1<br /> Frame: 48Z<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temp.: 40 Degrees C<br /> Ins. Class: B<br /> Duty: Continuous<br /> No. of Speeds: 1<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: All Angle<br /> Motor Bearings: Ball<br /> Motor Thermal Protection: Auto<br /> Motor Shaft Rotation: CW/CCW<br /> Replacement For: Mfr. No. 4HZ45, 4HZ47<br /> Body Dia.: 5-5/8"<br /> Length Less Shaft: 8-7/8"<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 3"<br /> Motor Shaft Design: Flat<br /> Capacitor Required: Included<br /> Mounting Stud Location: Shaft End<br /> Mounting Stud Pattern: 3-5/8" x 3-5/8"<br /> Stud Size: #10-32<br /> Bolt Circle Dia.: 5-1/8"<br /> RPM Range: 1701-1800<br /> Standards: CSA Certified Motor<br /> Application: Replacement Motor for Mfr. No. 4HZ45, 4HZ47
Product_site_launch_date2016-06-06T15:24:56.158Z 2018-09-24T03:08:36.653Z
Rank1042852 1147696 1170420 1211109 1254727 1280502 1363939 1431366 1498 150 1561885 2221 2356 2951 3101 3385 3466 3886 3975 4236 4753 4835 4877 616879 809576 811479 867105 974290
Sku4YU29 AT45DB081E-MHN2B-T DAYTON 4YU29 DAYTON 7HR98 DAYTON MH29XL8549G HARRINGTON NER003HD-20 / 460V MAX163CCNG SXT1148FA48-48.000MT
Speed1725.0
Supplier_declared_dg_hz_regulationunknown
TitleDayton 3/4 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1725 Nameplate RPM, 115/230 Voltage Dayton 4YU29 - Motor PSC 3/4 HP 1725 115/230V 48Z OAO Dayton 4YU29 AC Motor, 3/4HP, 115V, 1725RPM, 1PH, 7.0A Electric Fan Motors Motor, PSC, 3/4 HP, 1725, 115/230V, 48Z, OAO Tools & Home Improvement
Typeean upc
URLhttp://ecx.images-amazon.com/images/I/31iC5MBMdoL._SL75_.jpg http://ecx.images-amazon.com/images/I/51336VrepFL._SL75_.jpg https://m.media-amazon.com/images/I/51336VrepFL._SL75_.jpg
Unithorsepower inches pounds rpm volts
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website home_improvement_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width1125 18 18.0 2.0 2.00 500 75 8.3 8.30

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caWWG4YU2911
Raptor SuppliesAE2PFV111 @ $491.29
AmazonTPB000LEUUN2111 @ $219.06
AmazonSCB000LEUUN211
sustainablesupply.comC30189021Add to Cart11 @ $398.38
emotorpro.com4YU291-211 @ $462.85

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Motor, PSC, 3/4 HP, 1725, 115/230V, 48Z, OAO
Brand: Dayton
Continuous Duty, Open Air Over, Class B Insulation. Replacement Motor for 306487, 4HZ45, 4HZ47 Dayton Ventilators.
Details
  • 3/4 hp 1725 RPM, 7.0/3.5 amps, 115/230 Volts 60 hz.
  • 1-Speed; Ball Bearings; 48Z Frame; 5 5/8" Diameter Motor
  • Shaft 1/2" x 3"; Rotation = Reversible; SF = 1.0
  • Auto Overload Protection; Rigid Base; 4 studs shaft end
  • CSA Certified; UL Rated; 1 Year Manufacture Warranty
Listing
Product groupHome Improvement
Product typeHOME_LIGHTING_ACCESSORY
Part number4YU29
LabelDayton
ManufacturerDayton
Catalog
Feature3/4 hp 1725 RPM, 7.0/3.5 amps, 115/230 Volts 60 hz.
CategoryTools & Home Improvement
MPN4YU29
UPC663001342588
EAN663001342588
Product groupHome Improvement
Product typeHOME_LIGHTING_ACCESSORY
ManufacturerDayton
View on Amazon (paid link)
Dayton 4YU29 AC Motor, 3/4HP, 115V, 1725RPM, 1PH, 7.0A
Brand: Dayton
Catalog
CategoryTools & Home Improvement
MPN4YU29
Product groupBISS
Product typeLAB_SUPPLY
ManufacturerDayton
View on Amazon (paid link)
Dayton 3/4 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1725 Nameplate RPM, 115/230 Voltage
Brand: CAI - DAYTON
Permanent split capacitor motors include capacitor; designed specifically as replacement motors for Dayton ventilators.<br /><br /> Item: Direct Drive Blower Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Direct Drive Fan/Blower<br /> Motor Design: Permanent Split Capacitor<br /> Motor Enclosure Design: Open Air-Over<br /> HP: 3/4<br /> Nameplate RPM: 1725<br /> Voltage: 115/230<br /> Full Load Amps: 7.0/3.5<br /> Hz: 60<br /> Phase: 1<br /> Frame: 48Z<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temp.: 40 Degrees C<br /> Ins. Class: B<br /> Duty: Continuous<br /> No. of Speeds: 1<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: All Angle<br /> Motor Bearings: Ball<br /> Motor Thermal Protection: Auto<br /> Motor Shaft Rotation: CW/CCW<br /> Replacement For: Mfr. No. 4HZ45, 4HZ47<br /> Body Dia.: 5-5/8"<br /> Length Less Shaft: 8-7/8"<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 3"<br /> Motor Shaft Design: Flat<br /> Capacitor Required: Included<br /> Mounting Stud Location: Shaft End<br /> Mounting Stud Pattern: 3-5/8" x 3-5/8"<br /> Stud Size: #10-32<br /> Bolt Circle Dia.: 5-1/8"<br /> RPM Range: 1701-1800<br /> Standards: CSA Certified Motor<br /> Application: Replacement Motor for Mfr. No. 4HZ45, 4HZ47
Listing
Product groupBISS
Product typeMECHANICAL_COMPONENTS
Part number4YU29
LabelCAI - DAYTON
ManufacturerCAI - DAYTON
View on Amazon (paid link)
