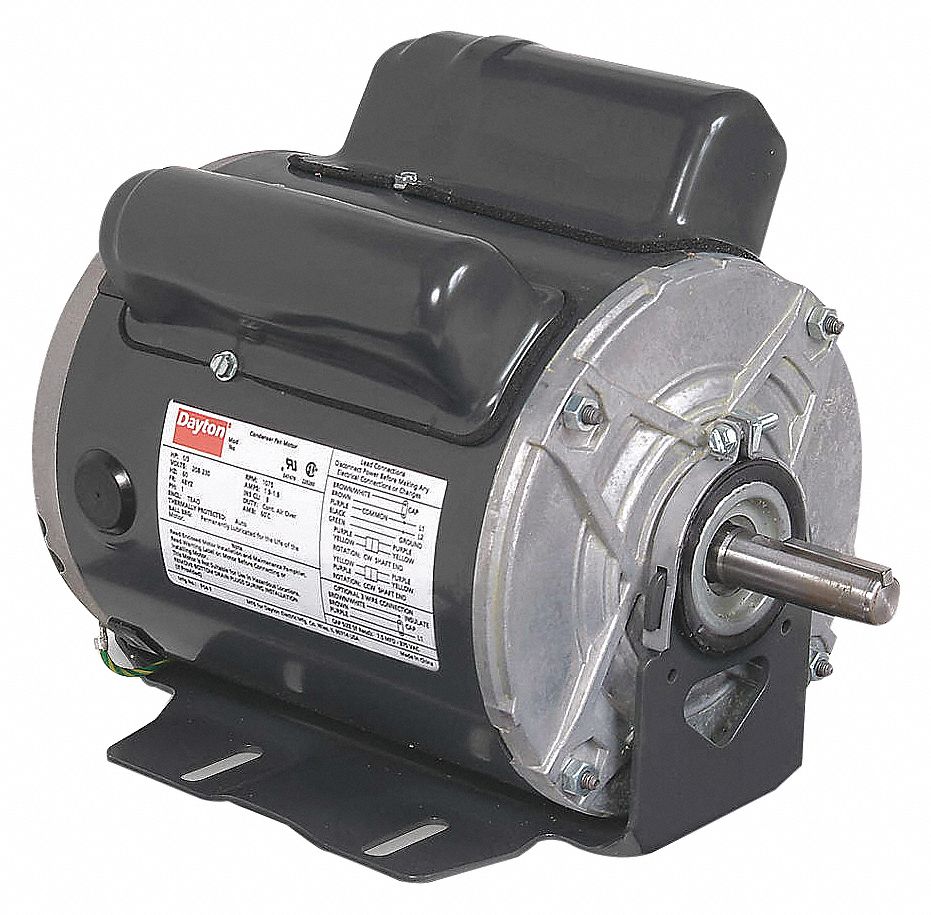

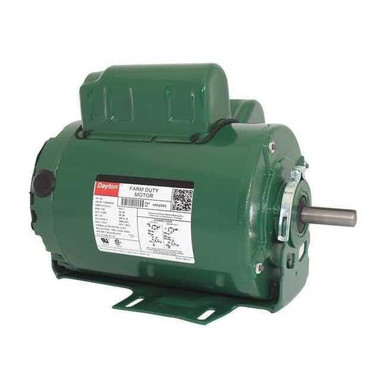

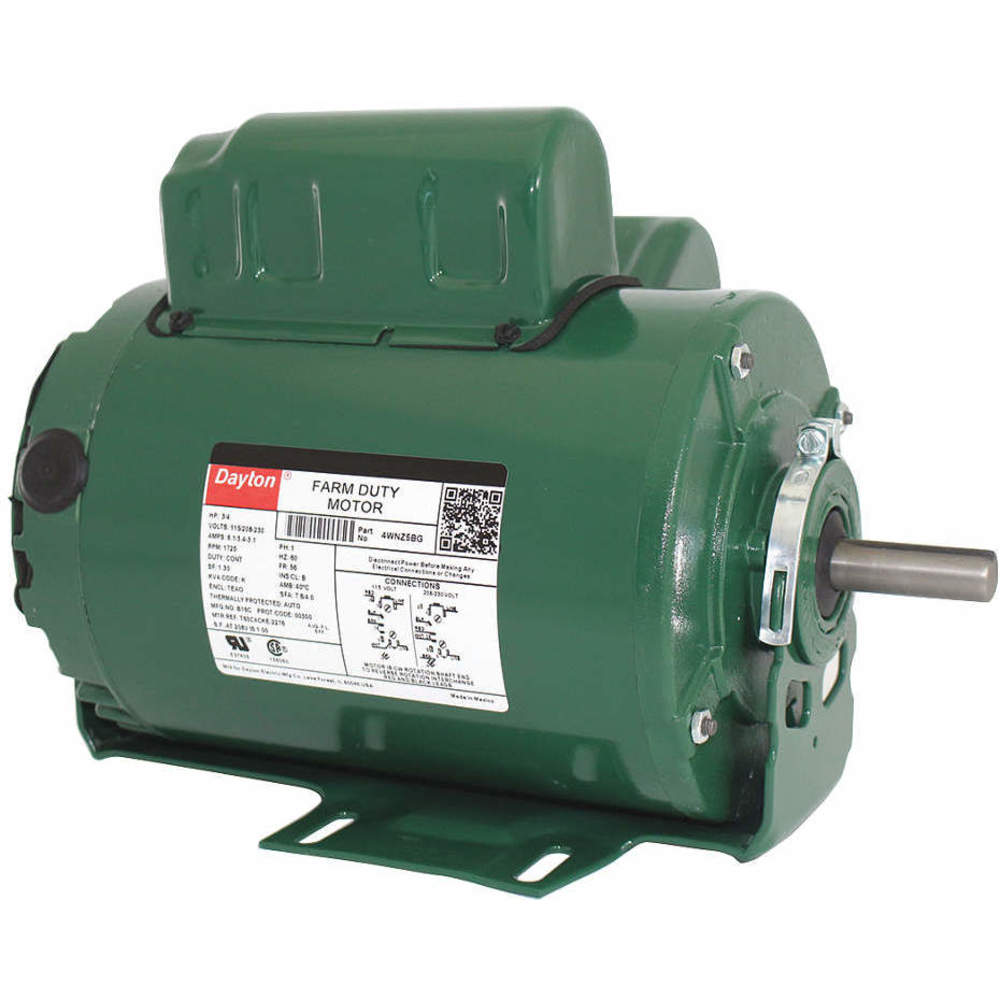

Agricultural Fan Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.1/3.4-3.1, 56 Frame, 60 Hz, Motor Service Factor 1.3, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel

For use in high-torque installations, such as conveyors, silo unloaders, barn cleaners, compressors, and manure pumps, this motor is designed to be durable and powerful. The high-torque design enables it to start under heavy load conditions. A capacitor cover, gasketed conduit box, and rubber boot over the manual protector reset button help seal the motor against weather and contaminants. Shaft slinger included. The totally enclosed, fan-cooled motor design also helps keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.<br /><br /> Item - Farm Duty Motors: Agricultural Fan Motor<br /> Motor Application: Farm Duty<br /> Motor Sub Application: Poultry/Livestock Belt Drive Fan<br /> Motor Design: Capacitor-Start/Run<br /> Motor Enclosure Design: Totally Enclosed Air-Over<br /> HP: 3/4<br /> Nameplate RPM: 1725<br /> Frame: 56<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 115/208-230<br /> Full Load Amps: 6.1/3.4-3.1<br /> Phase: 1<br /> Hz: 60<br /> Motor Mounting Type: Cradle Base<br /> Motor Mounting Position: Horizontal<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Finish: Baked Enamel<br /> Motor Thermal Protection: Auto<br /> Motor Service Factor: 1.30<br /> Max. Ambient Temperature: 40 Degrees C<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Motor Shaft Design: Keyed<br /> Length Less Shaft: 9-7/8"<br /> Overall Length: 11-13/16"<br /> Ins. Class: B<br /> RPM Range: 1701-1800<br /> Duty: Continuous<br /> Nominal Efficiency: 81.2%<br /> Includes: Gasketed Capacitor Cover, Conduit Box and Shaft Slinger<br /> Standards: UL Recognized (E37403), CSA Certified (258501)<br /> Item: Agricultural Fan Motor<br />
