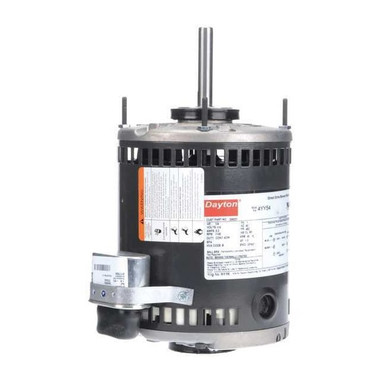

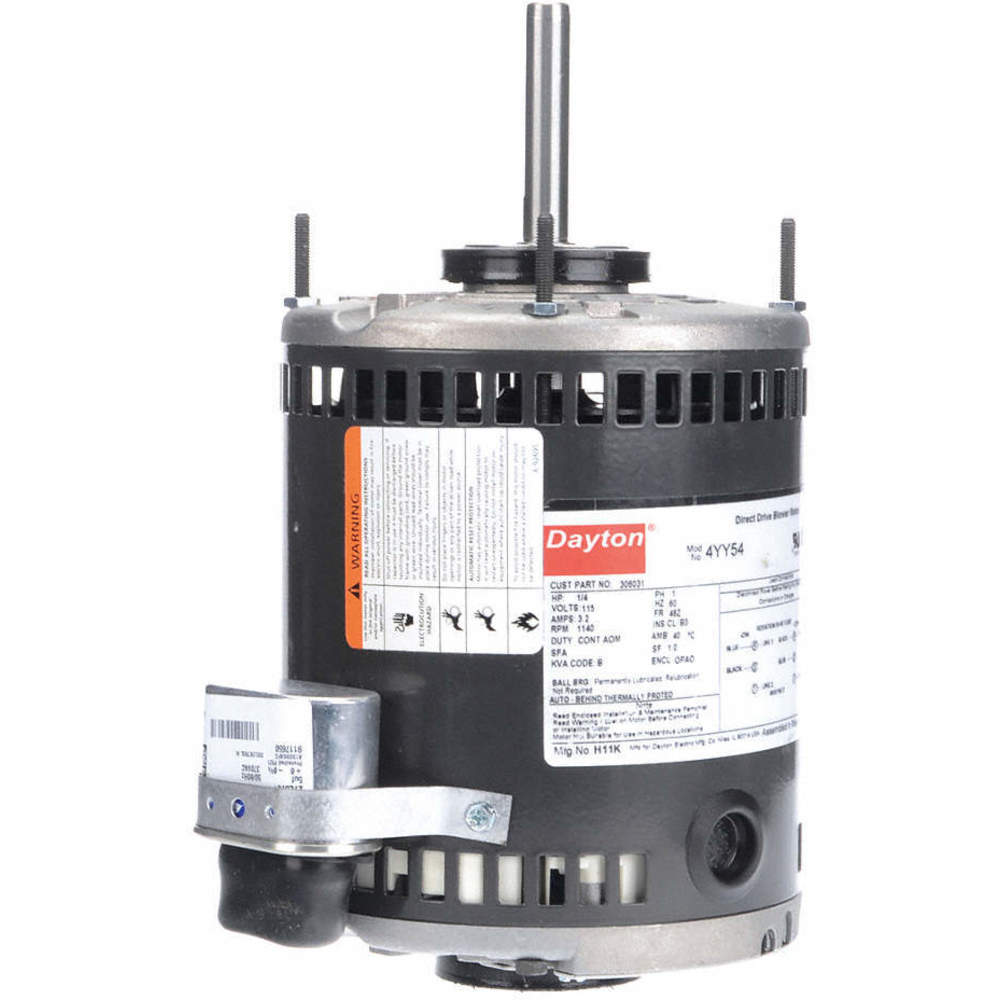

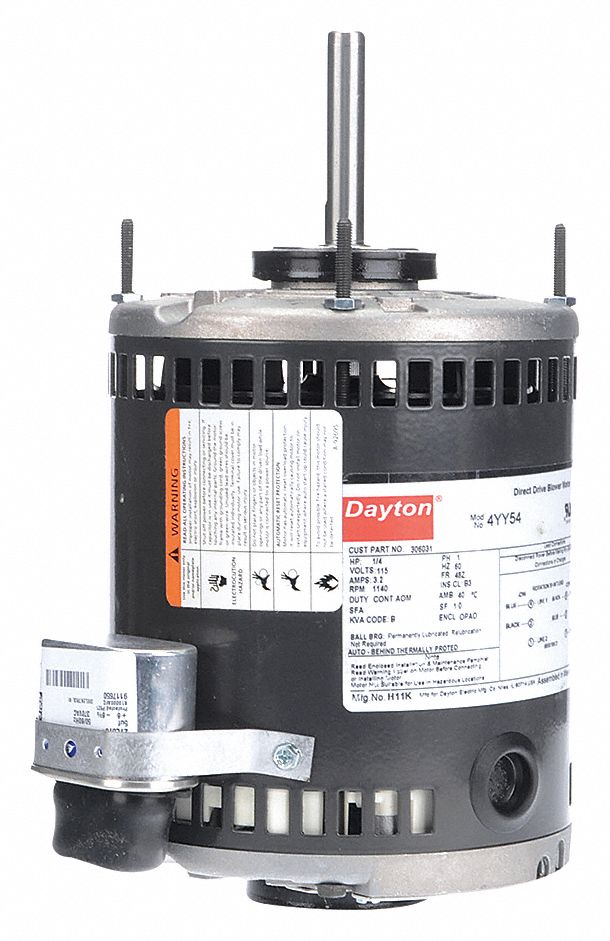

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115V AC, Full Load Amps 3.2, 48 Frame, Replacement For 4HZ49, 4HZ51, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud

Continuous Duty, Open Air Over, Class B Insulation. Replacement Motor for 4HZ49, 4HZ51 Dayton Ventilators.

Permanent split capacitor motors include capacitor; designed specifically as replacement motors for Dayton ventilators.<br /><br /> Item: Direct Drive Blower Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Direct Drive Fan/Blower<br /> Motor Design: Permanent Split Capacitor<br /> Motor Enclosure Design: Open Air-Over<br /> HP: 1/4<br /> Nameplate RPM: 1140<br /> Voltage: 115<br /> Full Load Amps: 3.2<br /> Hz: 60<br /> Phase: 1<br /> Frame: 48Y<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temp.: 40 Degrees C<br /> Ins. Class: B<br /> Duty: Continuous<br /> No. of Speeds: 1<br /> Motor Mounting Type: Stud<br /> Motor Mounting Position: All Angle<br /> Motor Bearings: Ball<br /> Motor Thermal Protection: Auto<br /> Motor Shaft Rotation: CW/CCW<br /> Replacement For: Mfr. No. 4HZ49, 4HZ51<br /> Body Dia.: 5-5/8"<br /> Length Less Shaft: 7"<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 2-1/2"<br /> Motor Shaft Design: Flat<br /> Capacitor Required: Included<br /> Resilient Ring Dia.: 2-1/4"<br /> Ring to Ring Center: 7-3/8"<br /> Mounting Stud Location: Shaft End<br /> Mounting Stud Pattern: 3-5/8" x 3-5/8"<br /> Stud Size: #10-32<br /> Bolt Circle Dia.: 5-1/8"<br /> RPM Range: 1101-1200<br /> Standards: CSA Certified Motor<br /> Application: Replacement Motor for Mfr. No. 4HZ49, 4HZ51<br /> Includes: 5MFD @ 370VAC Capacitor<br />
