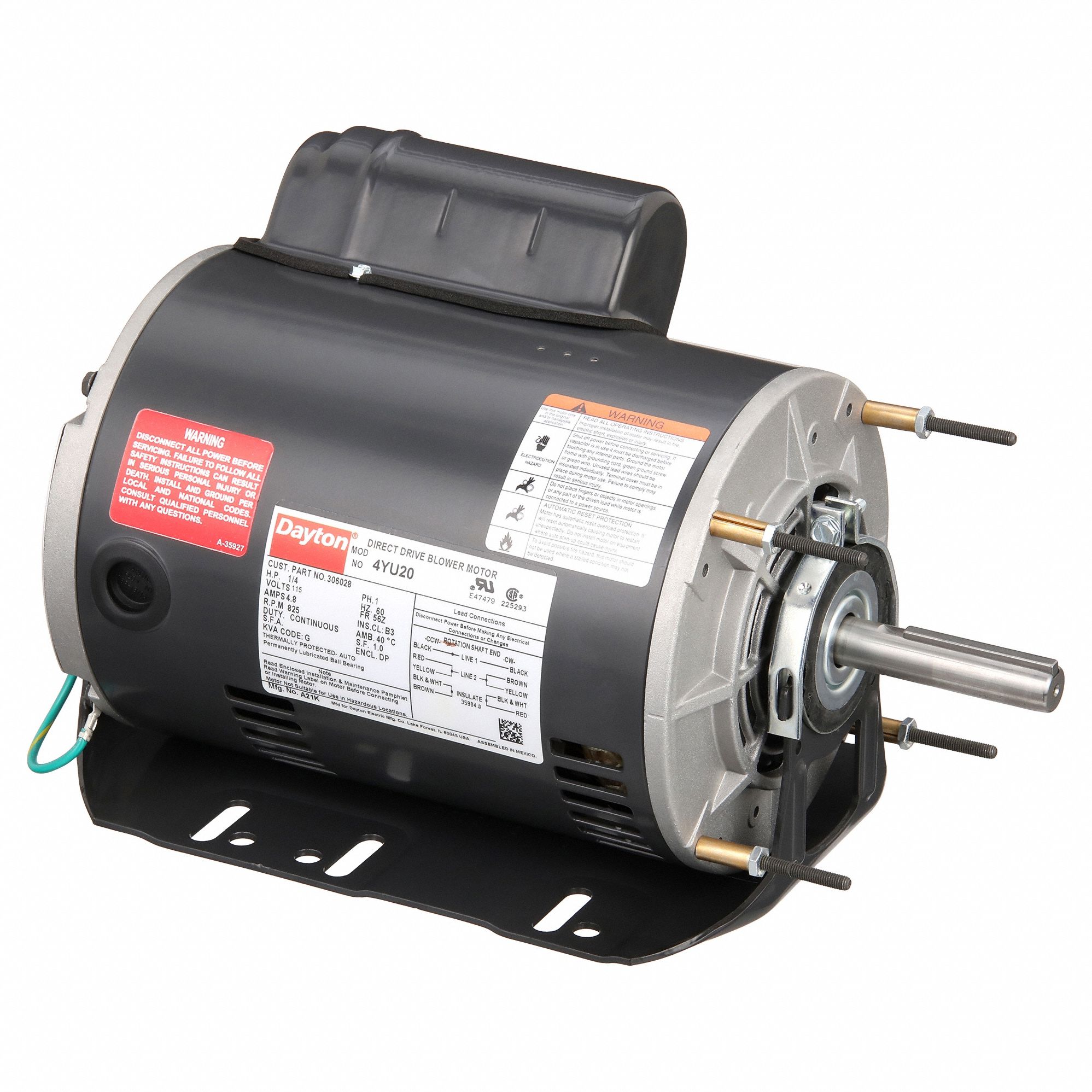

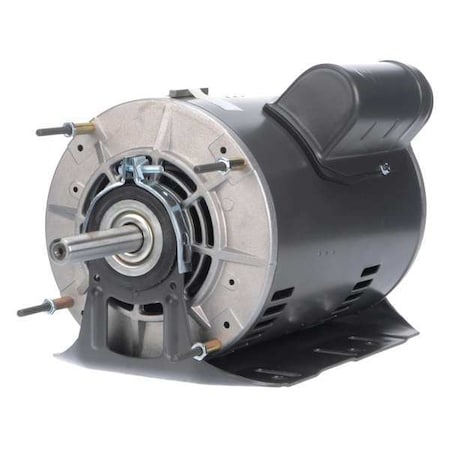

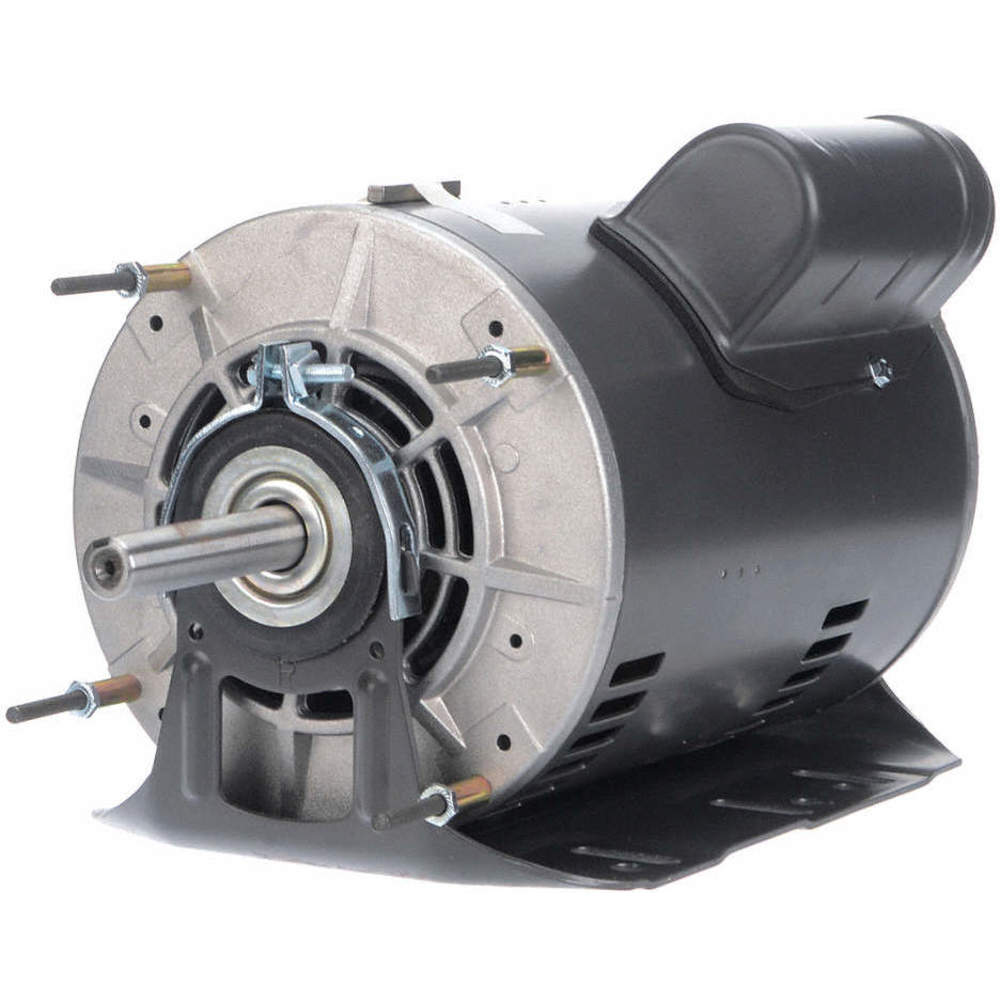

Continuous Duty, Open Drip Proof, Class B Insulation. Replacement Motor for 4HZ52, 4HZ54, 4YC73 Dayton Ventilators.

Permanent split capacitor motors include capacitor; designed specifically as replacement motors for Dayton ventilators.<br /><br /> Item: Direct Drive Blower Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Direct Drive Fan/Blower<br /> Motor Design: Permanent Split Capacitor<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 1/4<br /> Nameplate RPM: 860<br /> Voltage: 115<br /> Full Load Amps: 4.8<br /> Hz: 60<br /> Phase: 1<br /> Frame: 56Z<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temp.: 40 Degrees C<br /> Ins. Class: B<br /> Duty: Continuous<br /> No. of Speeds: 1<br /> Motor Mounting Type: Cradle Base<br /> Motor Mounting Position: All Angle<br /> Motor Bearings: Ball<br /> Motor Thermal Protection: Auto<br /> Motor Shaft Rotation: CW/CCW<br /> Replacement For: Mfr. No. 4HZ52, 4HZ54, 4YC73<br /> Body Dia.: 6-1/2"<br /> Length Less Shaft: 10-1/2"<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 2-3/4"<br /> Motor Shaft Design: Keyed<br /> Capacitor Required: Included<br /> Resilient Ring Dia.: 2-1/2"<br /> Ring to Ring Center: 10-1/8"<br /> Mounting Stud Location: Shaft End<br /> Mounting Stud Pattern: 4-1/4" x 4-1/4"<br /> Stud Size: #10-32<br /> Bolt Circle Dia.: 6-1/16"<br /> RPM Range: 0-1000<br /> Standards: CSA Certified Motor<br /> Application: Replacement Motor for Mfr. No. 4HZ52, 4HZ54, 4YC73
