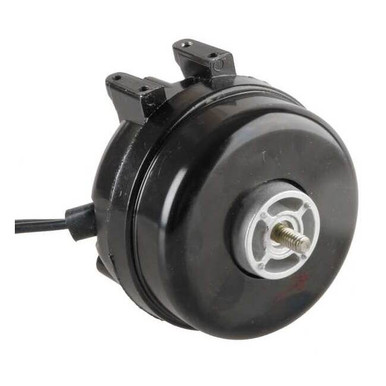

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/370 HP, Nameplate RPM 1,550, Voltage 115V AC, 0.25 Full Load Amps, Non-Standard Frame, Output Watts 2.3 W, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Impedance, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Aluminum, Motor Mounting Position Horizontal or Vertical Shaft Up

This unit bearing motor is for use with commercial and industrial HVAC and refrigeration equipment, and other applications with 6" to 12" fan blades. The oil circulation system helps extend the life of the motor and bearings, and allows for vertical application.<br /><br /> Item: Unit Bearing Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Refrigerator/Freezer<br /> Motor Design: Shaded Pole<br /> Motor Enclosure Design: Totally Enclosed Air-Over<br /> HP: 1/370<br /> Nameplate RPM: 1550<br /> Frame: Non-Standard<br /> Voltage: 115<br /> Hz: 60/50<br /> Phase: 1<br /> Full Load Amps: 0.25<br /> Output Watts: 2.3<br /> Motor Mounting Type: Rear/Foot<br /> Motor Thermal Protection: Impedance<br /> Ins. Class: A<br /> Motor Service Factor: 1.00<br /> Motor Bearings: Sleeve<br /> Motor Frame Material: Cast Aluminum<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CWLE<br /> Length Less Shaft: 3-3/8"<br /> Overall Length: 3-7/8"<br /> Motor Shaft Design: Threaded<br /> Shaft Dia.: 1/4"<br /> Shaft Length: 1/2"<br /> Body Dia.: 3-1/2"<br /> Motor Mounting Position: Horizontal or Vertical Shaft Up<br /> Bolt Circle Dia.: 2-13/16"<br /> RPM Range: 1501-1600
