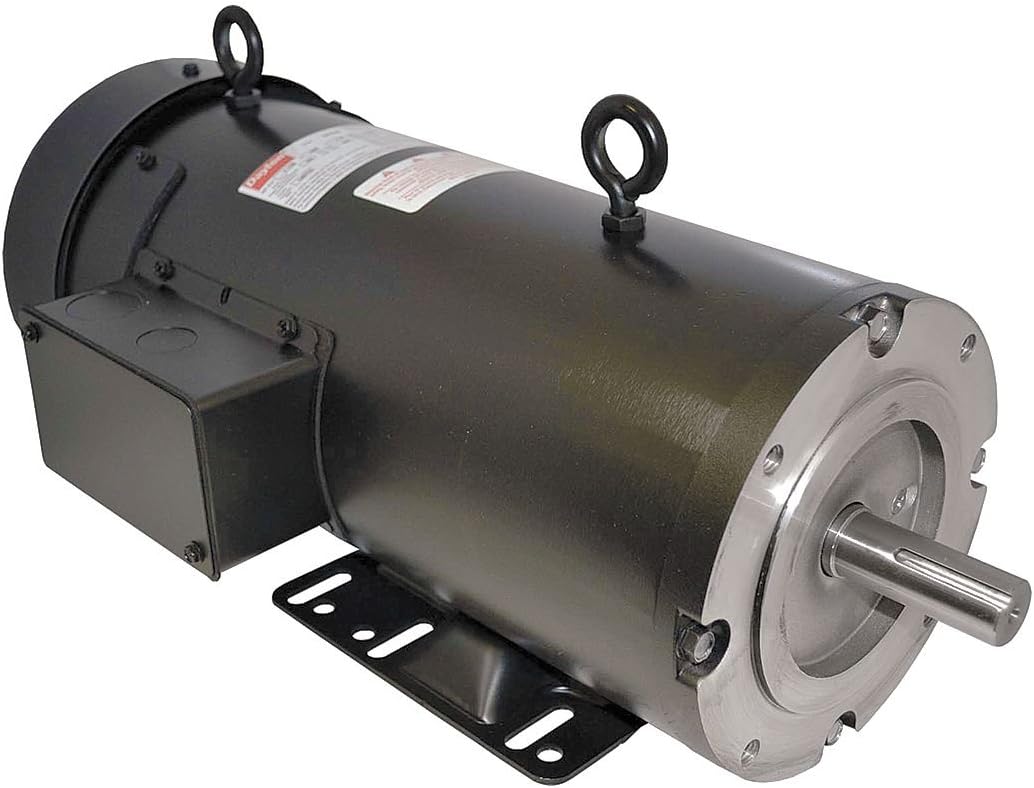

DC Motor, PM, TEFC, 1 HP, 1750 RPM, 180VDC

High voltage permanent magnet DC Motors are typically used with an SCR controller in applications requiring adjustable speed and constant torque throughout the speed range. They are also widely used in applications requiring dynamic braking or adjustable speed/reversing capabilities. Reversible rotation with simple 2-lead connection.

Permanent magnet motor is designed for use with speed controls or NEMA Type K DC power supplies on constant or diminishing torque applications<br /><br /> Item: DC Permanent Magnet Motor<br /> Motor Application: Variable Speed<br /> Motor Design: DC Permanent Magnet<br /> HP: 1<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> Nameplate RPM: 1750<br /> Voltage: 180VDC<br /> Full Load Amps: 5.0<br /> Frame: 56C<br /> Motor Mounting Type: Face/Base<br /> Motor Thermal Protection: None<br /> Ins. Class: F<br /> Bearings: Ball<br /> Max. Ambient Temp.: 40 Degrees C<br /> Rotation: CW/CCW<br /> Overall Length: 14-13/16"<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> RPM Range: 1701-1800<br /> Features: Removable Base<br /> Standards: UL Recognized (E47479)<br />
