DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1/18 HP, Nameplate RPM 1,800, Voltage 90V DC, 0.80 A Full Load Amps, Non-Standard Frame, Full Load Torque 1.9 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 1/2 in, Motor Frame Material Steel

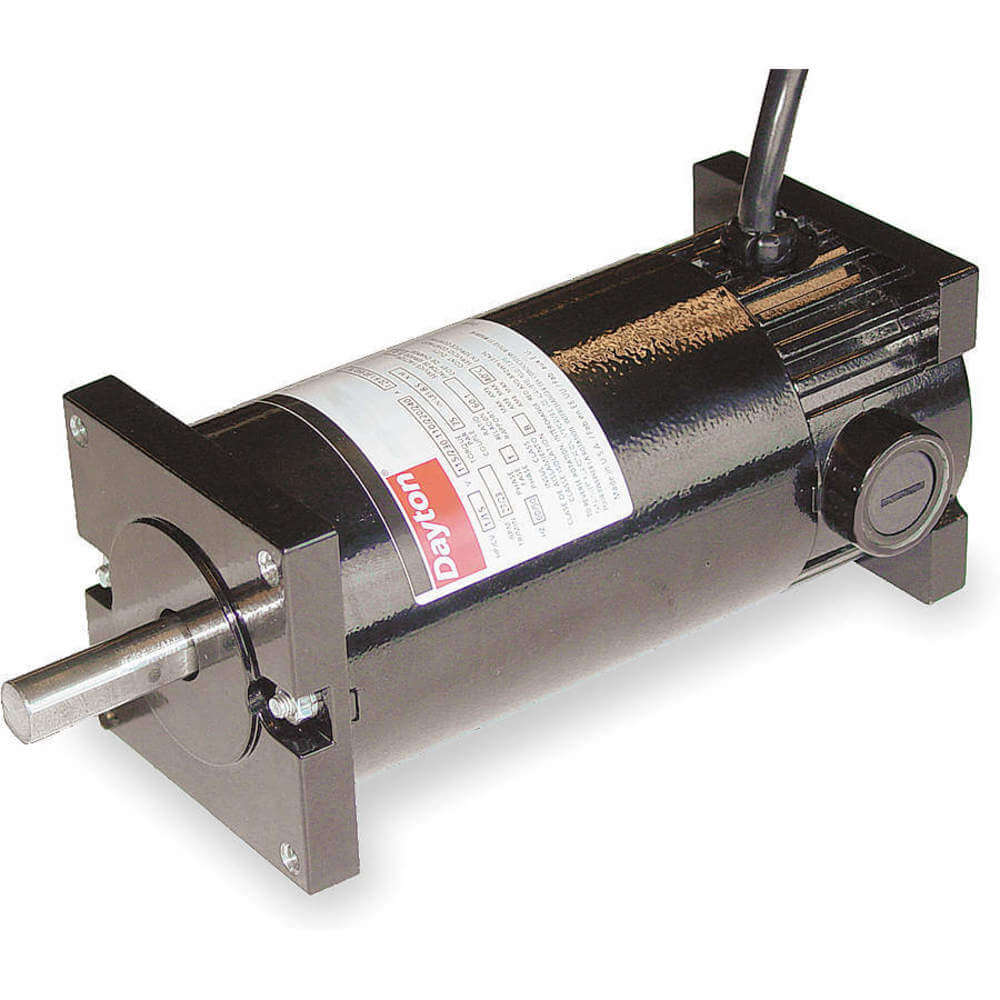

Dayton DC Motor

Use this permanent magnet motor with Type K DC rectified power sources matched to voltage (providing form factor does not exceed 1.3).<br /><br /> Item: DC Permanent Magnet Motor<br /> Motor Application: Variable Speed<br /> Motor Design: DC Permanent Magnet<br /> HP: 1/18<br /> Motor Enclosure Design: Totally Enclosed Nonventilated<br /> Nameplate RPM: 1800<br /> Voltage: 90VDC<br /> Full Load Amps: 0.8<br /> Full Load Torque: 1.95 in.-lb.<br /> Frame: Non-Standard<br /> Motor Mounting Type: Face/Base<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Bearings: Ball<br /> Max. Ambient Temp.: 40 Degrees C<br /> Rotation: CW/CCW<br /> Overall Length: 6-3/8"<br /> Length Less Shaft: 4-15/16"<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 1-1/2"<br /> Base Mounting O.C.: 4-7/16 x 2"<br /> Face Mounting O.C.: 2-5/8 x 2-5/8<br /> Brush Type: External<br /> RPM Range: 1701-1800<br /> Standards: UL Recognized (E61772)<br />
