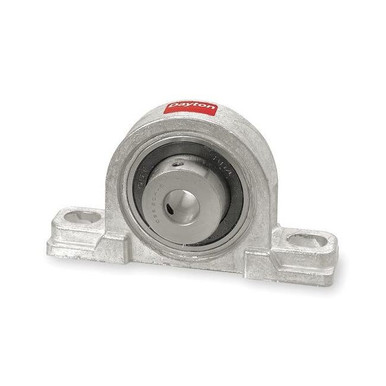

Pillow Block Bearing, Base Height 0.5 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1.25 in, Closure Double Sealed, Housing Material Zinc Die Cast, Lubricant Material NGLI #2 Equivalent, Maximum Speed 3,500 RPM, Maximum Temperature 200 Degrees F, Minimum Temperature -30 Degrees F, Mount Hole Center-to-Center Length 3 5/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.5 in

<p><b>Specification: </b><ul><li>Item: Pillow Block Bearing</li><li>Mounted Bearing Item: Pillow Block Bearing</li><li>Bearing Insert Type: Ball</li><li>Bore Dia.: 1"</li><li>Bolt Hole Center-to-Center: 3-5/8"</li><li>Mounting Surface to Shaft Center: 1-1/4"</li><li>Bearing Housing Material Type: Zinc Die Cast</li><li>Shaft Locking Type: Set Screw</li><li>Bearing Insert Material: 52100 Chrome Steel</li><li>Series: PBDC-BL</li><li>Number of Bolts: 2</li><li>Bolt Size: 3/8"</li><li>Overall Height: 2-1/2"</li><li>Overall Width: 1-3/8"</li><li>Overall Length: 4-5/8"</li><li>Dynamic Load Capacity: 3153 lb.</li><li>Static Load Capacity: 1768 lb.</li><li>Temp. Range: -30 Degrees to 200 Degrees F</li><li>Finish: None</li><li>Includes: (2) Set Screws</li></ul></p>

MOUNTED BALL BEARING
