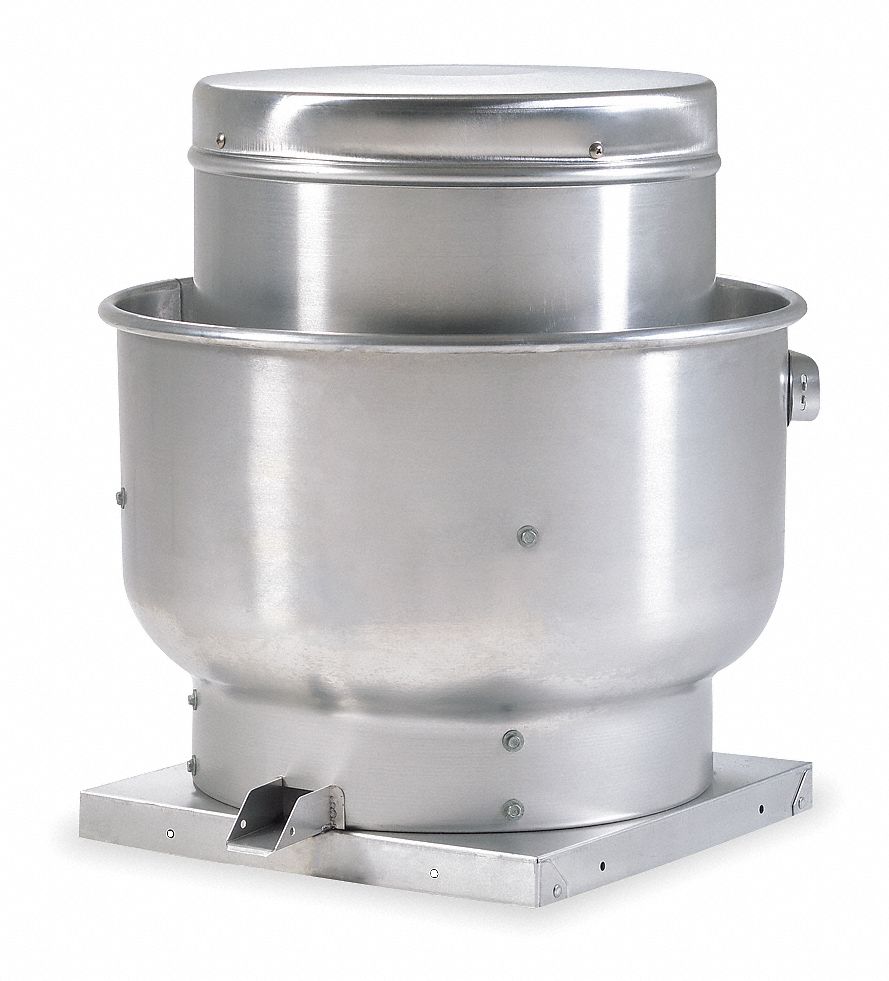

UPBLAST EXHAUST VENT, 14-3/4 IN.

DAYTON . 4YY16-22CC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDAYTON
DimensionUnitinch
Extra Product NameUPBLAST EXHAUST VENT, 14-3/4 IN.
UNSPSC40101502
Weight56.0
WeightUnitlbs
height26.375
height_AttribOverall Height
length, width28.9
length_AttribHousing Length
moq, multiple, tierMinQty1, Number of Speeds1
MPN4YY16-22CC
originalCurrency{'currency': 'CAD', 'tierPrice1': '1214.92'}
qtyInStock0
SKUWWG16D524
tierPrice1881.79622552
width_AttribHousing Width
ItemCentrifugal Upblast Roof Exhaust Fan
Drive TypeBelt
Base DiameterNot Applicable
Base Width, Base Length22 in
Maximum Static Pressure1 3/4 in wc
Minimum Airflow998 cfm
Minimum Motor Horsepower1/4 hp
Minimum Motor Speed1,105 RPM
Housing MaterialSpun Aluminum
For High-Static Pressure Applications, Includes Drive Package, Includes Motor, Speed ControllableNo
For Air TypeKitchen Air
StandardsAMCA Sound and Air, UL/cUL 762
Base Height1 3/4 in
Brake Horsepower13/50 hp, 17/50 hp, 13/25 hp, 79/100 hp, 1 hp
Compatible Curb Manufacturer Part Number24Y860, 2RB75-2RB77, 2RB79-2RB82, 2ZV82-2ZV85
Cutout Length17.5 in
Damper Size15 x 15 in
FeaturesAir Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design
Housing Material FabricationSpun
IncludesNEMA 1 Junction Box
Maximum Fan Speed, Maximum Motor Speed1,725 RPM
Motor LocationOut of Airstream
Overall Diameter24 7/8 in
Propeller Shaft Diameter3/4 in
Wheel TypeBackward Inclined Centrifugal
ApplicationIndustrial and Commercial Buildings, Restaurants, Schools
Wheel Diameter14 3/4 in
Base ShapeSquare
Maximum Airflow3,066 cfm
Maximum Motor Horsepower1 hp
AssemblyUnassembled
Wheel MaterialAluminum
Mounting LocationRoof
Maximum Inlet Air Temperature, Maximum Ambient Temperature300 Degrees F
Overall Height26 3/8 in
Bearing TypeSealed Pillow Block
Compatible Curb Grainger Part Number2RB76, 2ZV82, 4C670, 4HX55, 4HX61
Compatible Damper Grainger Part Number4HX65
Cutout Size17.5 in L x 17.5 in W
Electrical ConnectionPower Cord
Housing Length, Housing Width28.9 in
Maximum Noise Level @ 5 Feet14.2 sones
Mount TypeRoof Curb
Overall Depth28 1/8 in
Overall Width28 7/8 in
Safety FeaturesFully Rolled Windband

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caWWG16D524111 @ $881.80
