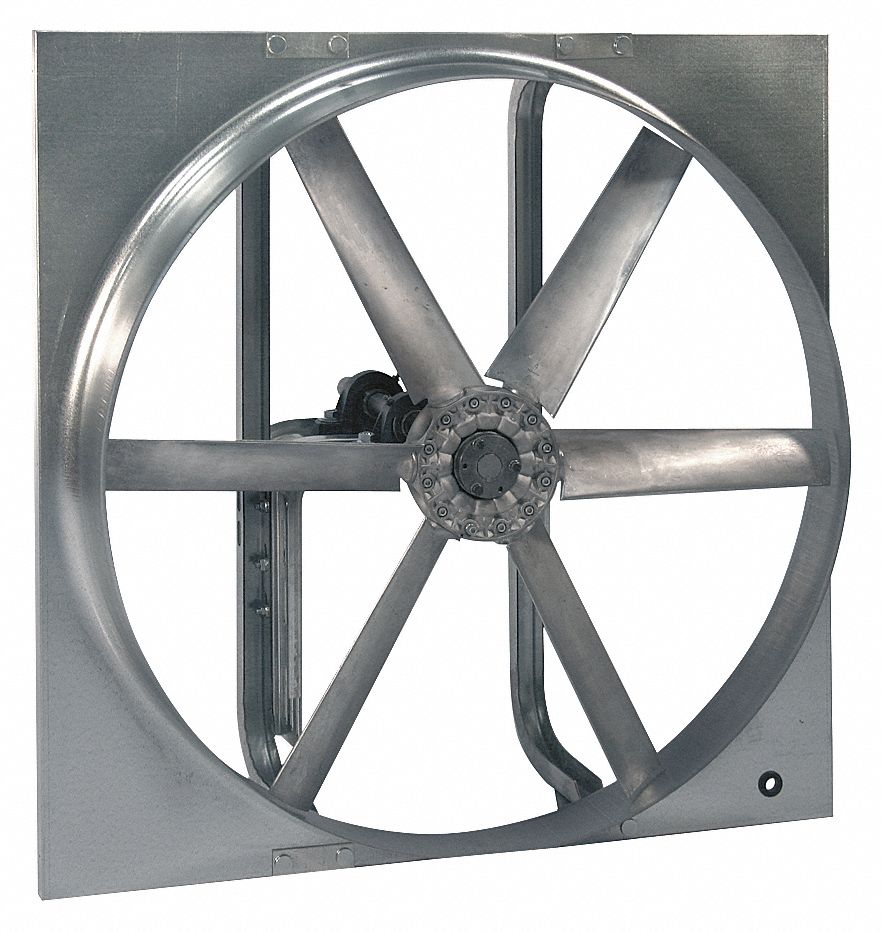

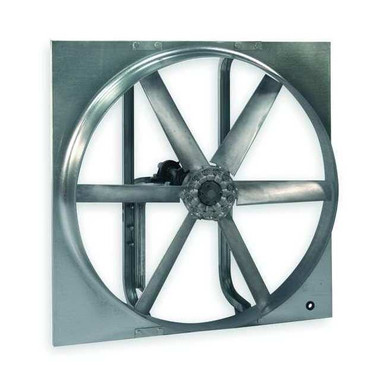

Exhaust/Supply Fan, Assembled Unassembled, Blade Diameter 30 in, Blade Material Aluminum, Frame Material Steel, For Maximum Motor Horsepower 3 hp, For Maximum Motor Speed 1,474 RPM, For Minimum Motor Horsepower 1/3 hp, For Minimum Motor Speed 714 RPM, Maximum Airflow 16,061 cfm, Maximum Static Pressure 0.75 in wg, Minimum Airflow 7,780 cfm, For -Out Height 32 1/2 in, For -Out Width 32 1/2 in, For -Out Diameter 32 1/2 in, Guard Type None, Method of Construction Cast, Number of Blades 6

Use to supply or exhaust air in commercial and industrial applications; reverse operation with the flip of a switch. Features rigid drive-frame rails. Air handling-quality bearings meet a min. L10-100,000 hr.<br /><br /> Item: Exhaust/Supply Fan<br /> Type: Belt Drive Reversible<br /> Blade Dia.: 30"<br /> Exhaust/Supply Fan Item: Reversible Exhaust/Supply Fan<br /> Max. Inlet Temp. (Deg. F): 104<br /> Drive Package With Motor Included: No<br /> Max. Ambient Temp. (F): 104<br /> Speed: 1<br /> Bearing Type: Regreaseable Cast Pillow Block<br /> Height (In.): 34<br /> Width (In.): 34<br /> Max. Depth (In.): 21-1/2<br /> Mounting Position: Vertical<br /> Propeller Material: Cast Aluminum<br /> Number of Blades: 6<br /> Shaft Dia. (In.): 1<br /> Recommended Intake Guards: 1WBU4<br />
