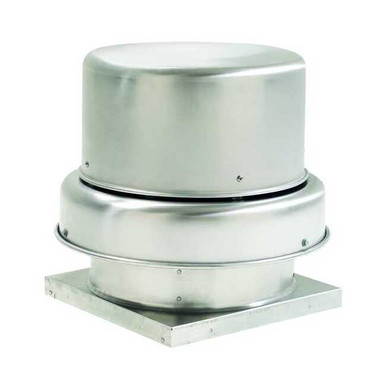

Centrifugal Downblast Roof Exhaust Fan, Drive Type Direct Drive, Assembly Assembled, Wheel Diameter 10 1/2 in, Base Diameter Not Applicable, Base Length 19 in, Base Width 19 in, Base Shape Square, Nameplate Voltage 115V AC, Phase 1, Motor Horsepower 1/8 hp, Exhaust Airflow @ 0.000 in SP 1,059 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, For Air Type Clean Air, Includes Drive Package Yes, Includes Motor Yes, Mounting Location Roof, Maximum Static Pressure 5/8 in wc

Dayton . 4YC67

Gallery

Attributes

Brand name, Manufacturer name, ManDayton
ManufacturerDayton CAI - DAYTON
CategoryId, CategoryIdL35111
CategoryIdL130
CategoryIdL24579
CategoryL1Heating & Cooling
CategoryL2Roof Ventilators
CategoryL3Direct Drive Centrifugal Exhaust Ventilators
DimensionUnitinch
GTIN, UPC, EAN, EANList, UPCList190735337684
GraingerSku, MPN, Part Number, Mpns, PartNumber, Part_number, StrippedMpns4YC67
UnitOfMeasureEA
Weight26 1.62 26.0 26.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height19.4
jsonUrlData924526ffbdad25e5923b
length, width23.9
moq, multiple, tierMinQty1, Phase, Case, Item_package_quantity, NumberOfItems, Number_of_boxes, Number_of_items, PackageQuantity1
qtyInStock72
qtyInStockOverride-2
SKUG0946897
tierPrice1578.99
urlhttps://www.zoro.com/dayton-downblast-vent-direct-drive-10-12-in-hz-60-4yc67/i/G0946897/
Product GroupBISS
Base Size - Roof Ventilators19 in x 19 in
Overall Dia, Dimension B, Overall Width, Overall Length, Overall Diameter21 3/4 in
Base Length, Base Width19"
Overall Height, Dimension C14 5/8 in
Wheel Dia, Wheel Diameter10 1/2 in
Dimension A19 in
Base Height1 3/4 in
Shaft Dia Wheel End, Propeller Shaft Diameter1/2 in
Dimension D4 in
Base Square Size - Roof Ventilators19" x 19"
Cutout Length14.5 in
Cutout Size14.5 in L x 14.5 in W
Base DiameterNot Applicable
Housing Length, Housing Width21.8 in
Base Dimension19 in Square
Damper Size12 x 12 in
Item - Roof VentilatorsDownblast Ventilator
Drive Package With Motor Included, Speed Controllable, Drive Package Included, Includes Motor, Includes Drive PackageYes
Duty Rating - Roof VentilatorsStandard
Drive Type - Roof VentilatorsDirect Drive
Mounting Location - Roof Ventilators, Mounting LocationRoof
Number of Speeds, Number_of_speeds3
Voltage - Roof Ventilators, Nameplate Voltage, Nominal Voltage115V AC
Motor HP - Roof Ventilators1/8 hp
CFM @ 0 000-In SP717/888/1059
CFM @ 0 500-In SP-/184/623
Speed Control, Compatible Speed Control48C172
Sones @ 0 250-In SP @ 5 Ft4.5/6.4/8.8
Sones @ 0 125-In SP @ 5 Ft4.5/6.7/9.3
Wheel Material, MaterialTypeAluminum
CFM @ 0 375-In SP-/493/745
RPM1050/1300/1550
Recommended 8 In Fixed Curb Item No4HX38
Motor HP1/8
Hz60
CFM @ 0 125-In SP570/780/969
Drive TypeDirect-Drive
Housing MaterialSpun Aluminum
IncludesNEMA 1 Junction Box
Adj 12 3/8"H Roof Curb Stock No2ZV82
CFM @ 0 750-In SP-/-/-
Assembled/Unassembled, AssemblyAssembled
Max BHP0.04/0.07/0.12
Agency ComplianceAMCA Sound & Air, CSA Certified Motor, UL/cUL 705
CFM @ 0 625-In SP-/-/474
Adj 6 3/8"H Roof Curb Stock No4c453
Wheel TypeBackward Inclined
Max Inlet Temp130 Degrees
Motor Voltage115
Max Operating Amps1.5/2/2.7
Recommended 12 In Fixed Curb Item No2RB75
ItemCentrifugal Downblast Roof Exhaust Fan
CFM @ 0 250-In SP389/640/863
MaterialAluminum Blade with Aluminum Housing Aluminum Plastic
ApplicationIndustrial and Commercial Applications
Maximum Inlet Air Temperature130 Degrees F
Mount TypeRoof Curb
Airflow @ 0 000 in SP - Range, Exhaust Airflow @ 0 500 in SP - Range, Exhaust Airflow @ 0 000 in SP - Range0 to 1,999 cfm
Housing Material FabricationSpun
Motor LocationOut of Airstream
For High-Static Pressure Applications, High-Efficiency MotorNo
Brake Horsepower1/25 hp
Exhaust Airflow @ 0 250 in SP863 cfm
Safety FeaturesBirdscreen, Windband
Electrical ConnectionPower Cord
Maximum Static Pressure5/8 in wc
For Air TypeClean Air
Exhaust Airflow @ 0 125 in SP969 cfm
Airflow @ 0 000 in SP1,059 cfm
Frequency60 Hz
Base ShapeSquare
Compatible Curb Manufacturer Part Number2RB75, 2ZV82, 4C453, 4C670, 4HX38, 4HX46
Exhaust Airflow @ 0 500 in SP623 cfm
Motor Speed1,550 RPM
Motor EnclosureOpen Air Over
ASIN, AsinB00CLUQAXI B07HM69P4N
Amount659.99 750.99 856.99
BindingMisc.
Brand, Label, Publisher, StudioCAI - DAYTON Dayton
Bullet_pointCountry of manufacture: United States HVAC and Refrigeration Manufacturer: Dayton
CatTools & Home Improvement
CatId228013
CatTree13397641 13398811 13399011 228013 468240 551240
ClassificationId16310161 7459504011
ColorSilver
Currency, CurrencyCodeUSD
DisplayNameCategories Safety Footwear
FeatureExhaust Centrifugal Downblast Ventilator
Height1014 19.4 2.0 2.00 24.0 24.00 500 75
Identifier0190735337684 0696333201087 190735337684 696333201087
IdentifierTypeEAN UPC
Included_componentsUnit^Instruction Guide
ItemClassificationBASE_PRODUCT
ItemName, Item_nameDayton 10-1/2", Assembled Downblast Ventilator, Direct-Drive Downblast Vent,Direct Drive,10-1/2 in
Item_package_weight, Item_weight26.0
Item_type_keywordindustrial-products protective-safety-boot-and-shoe-liners
Keyword4YC67 G0946897
Length2.0 2.00 20.0 20.00 23.9
Linkhttps://m.media-amazon.com/images/I/41HsyoxecsL._SL75_.jpg https://m.media-amazon.com/images/I/41HsyoxecsL.jpg https://m.media-amazon.com/images/I/41U3QkzCNfL._SL75_.jpg https://m.media-amazon.com/images/I/41U3QkzCNfL.jpg https://m.media-amazon.com/images/I/61P-LQqv5QL.jpg https://m.media-amazon.com/images/I/61aRqf+1eiL.jpg
List_price659.99 785.99
Marking_typeepa_registration_number
OldTitleDownblast Vent, Direct Drive, 10-1/2 In
Package_levelunit
Power_source_typeCorded Electric
ProductCategoryId7459504011 home_improvement_display_on_website
ProductGroup, WebsiteDisplayGroupNameBISS BISS Basic
ProductTypeELECTRIC_FAN ELECTRONIC_COMPONENT_FAN
ProductTypeNameELECTRIC_FAN ELECTRONIC_COMPONENT_FAN MECHANICAL_COMPONENTS SAFETY_SUPPLY
Product_descriptionVentilator performance can be fine-tuned with a 30% usable turndown at any selected speed. NEMA 1 junction box. UL-705 Listed for Power Ventilators.<br /><br /> Item: Downblast Ventilator<br /> Drive Type - Roof Ventilators: Direct Drive<br /> Duty Rating - Roof Ventilators: Standard<br /> Drive Package With Motor Included: Yes<br /> Voltage - Roof Ventilators: 115<br /> Motor HP - Roof Ventilators: 1/8<br /> Base Square Size - Roof Ventilators: 19" x 19"<br /> Number of Speeds: 3<br /> Mounting Location - Roof Ventilators: Roof<br /> Wheel Dia.: 10-1/2"<br /> Item - Roof Ventilators: Downblast Ventilator<br /> CFM @ 0.000-In. SP: 717/888/1059<br /> CFM @ 0.125-In. SP: 570/780/969<br /> CFM @ 0.250-In. SP: 389/640/863<br /> CFM @ 0.375-In. SP: -/493/745<br /> CFM @ 0.500-In. SP: -/184/623<br /> CFM @ 0.625-In. SP: -/-/474<br /> CFM @ 0.750-In. SP: -/-/-<br /> Sones @ 0.125-In. SP @ 5 Ft.: 4.5/6.7/9.3<br /> Sones @ 0.250-In. SP @ 5 Ft.: 4.5/6.4/8.8<br /> Phase: 1<br /> Hz: 60<br /> Max. Operating Amps: 1.5/2/2.7<br /> Max. BHP: 0.04/0.07/0.12<br /> RPM: 1050/1300/1550<br /> Base Height: 1-3/4"<br /> Overall Dia.: 21-3/4"<br /> Overall Height: 14-5/8"<br /> Shaft Dia. Wheel End: 1/2"<br /> Max. Inlet Temp.: 130 Degrees<br /> Housing Material: Spun Aluminum<br /> Wheel Material: Aluminum<br /> Wheel Type: Backward Inclined Centrifugal<br /> Speed Control: 48C172<br /> Speed Controllable: Yes<br /> Adj. 12 3/8"H Roof Curb Stock No.: 2ZV82<br /> Adj. 6 3/8"H Roof Curb Stock No.: 4C453<br /> Assembled/Unassembled: Assembled<br /> Recommended 12 In. Fixed Curb Item No.: 2RB75<br /> Recommended 8 In. Fixed Curb Item No.: 4HX38<br /> Agency Compliance: AMCA Sound & Air, UL/cUL 705, CSA Certified Motor<br /> Dimension A: 19"<br /> Dimension B: 21-3/4"<br /> Dimension C: 14-5/8"<br /> Dimension D: 4"<br />
Product_site_launch_date2012-05-22T19:25:03.860Z 2018-09-24T01:33:43.975Z
Rank3344396 5327
Registration_statusfifra_not_considered_pesticide not_capable_emitting_rf_energy
Specification_metCSA UL cUL
StyleModern
Supplier_declared_dg_hz_regulationnot_applicable
TitleDAYTON Downblast Vent Direct Drive 10-1/2 In Dayton 10-1/2", Assembled Downblast Ventilator, Direct-Drive Downblast Vent,Direct Drive,10-1/2 in
TitleSourcelistings feed
TypeCount ean upc
URLhttps://m.media-amazon.com/images/I/41HsyoxecsL._SL75_.jpg https://m.media-amazon.com/images/I/41U3QkzCNfL._SL75_.jpg
Unitinches pounds
Unit_count1.0
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website biss_display_on_website
Width2.0 2.00 23.9 24.0 24.00 485 73 984

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG094689717211 @ $578.99
Grainger4YC6711
Raptor SuppliesAE2LMV111 @ $1032.49
AmazonTPB00CLUQAXI111 @ $700.39
sustainablesupply.comC11385191-211 @ $766.27
simsupply.comZO-G094689719711 @ $744.42
grainger.caGFN4YC67111 @ $560.38
