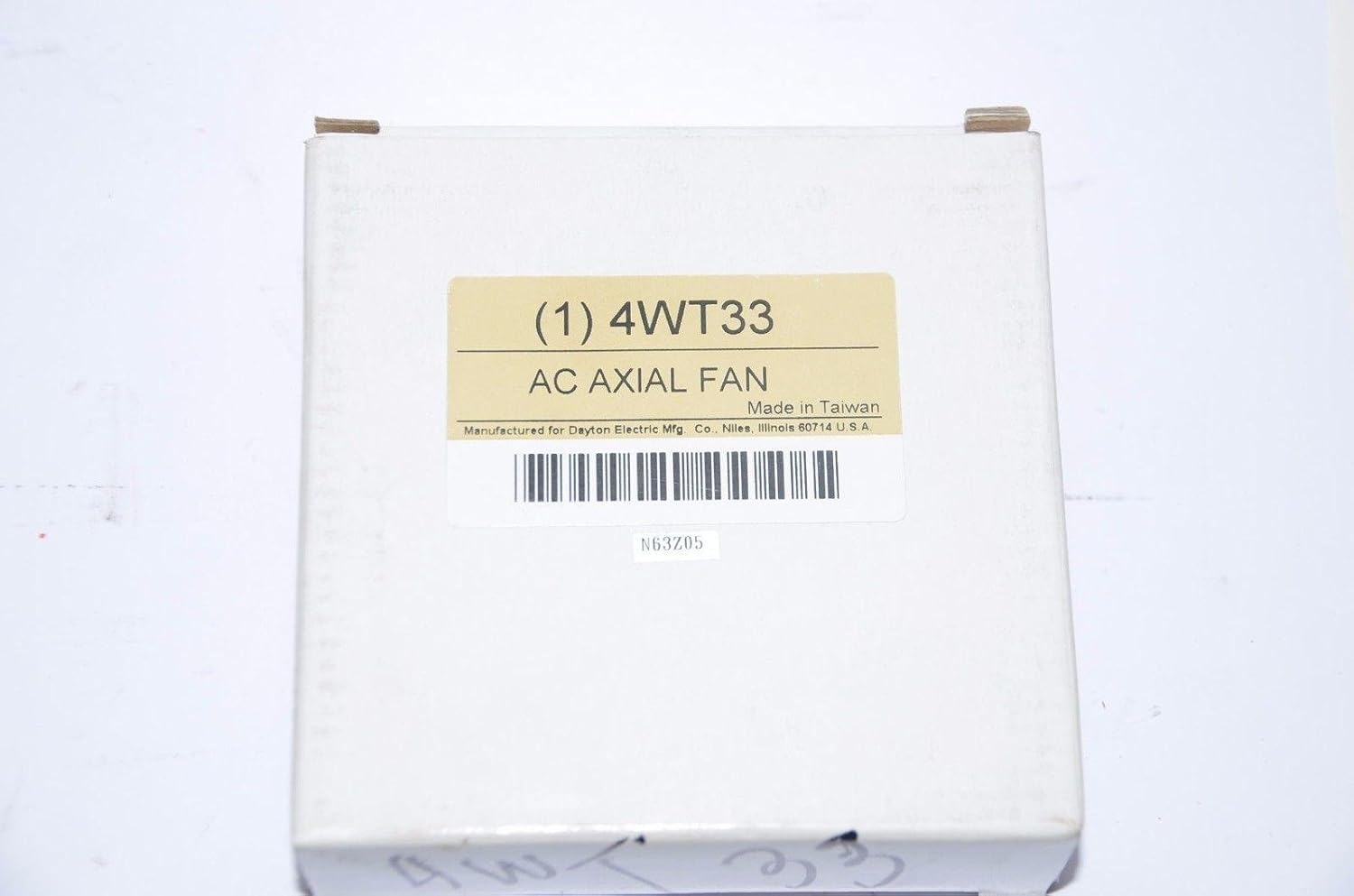

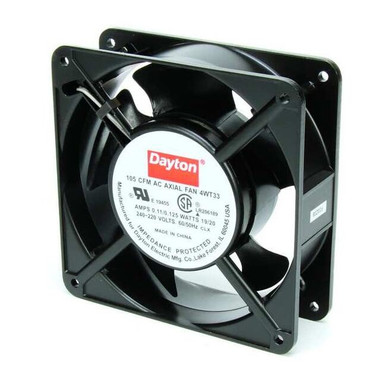

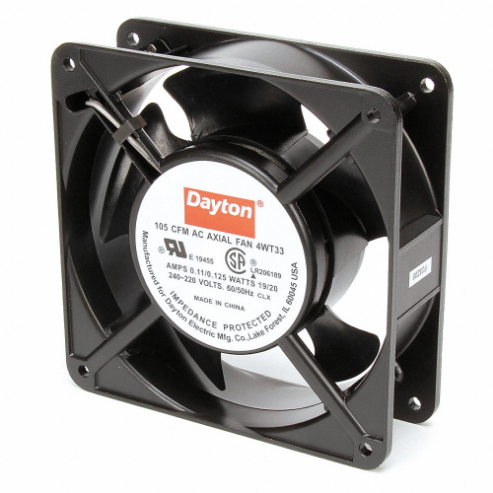

Dayton 4WT33 Fan, 105 CFM, 230 V

Single-speed fans (not speed-controllable) provide spot cooling where space is limited. All AC units are rated at 60/50 Hz (50 Hz operation will decrelease CMF by approximately 20%). Zerofriction fans eliminate friction between shaft and bearing for rotational stability, preventing wobble and vibration. Oblong fans are good for unique mounting requirements. Optional fan guards and cord sets available separately. UL and C-UL Recognized Component, CE Certified, and RoHS Compliant. Note: Sleeve-bearing fans must be mounted for horizontal airflow only. Ball-bearing and zero-friction fans may be mounted in any position. Cast-aluminum housing; driven with impedance-protected shaded pole or thermally protected PSC motor. Fan with Terminal Connection requires cord set not included.

The Dayton AC Axial Fan is a single speed unit used for spot cooling where space is limited. They are widely used in computers, copy machines, electronic instrumentation, cabinet cooling, machine tool products, and solar systems. They are field interchangeable with most other axial fans.<br /><br /> Item: Axial Fan<br /> Fan Shape: Square<br /> Mounting Eye O.C. - Fans: 4-1/8"<br /> Fan Height: 4-11/16"<br /> Fan Width: 4-11/16"<br /> Fan Depth: 1-1/2"<br /> CFM @ 0.000-In. SP: 105<br /> Fan Voltage: 230VAC<br /> Fan Watts: 19.0<br /> Electrical Connection - Fans: Terminals<br /> Fan dBA: 48<br /> Fan Item: Axial Fan<br /> Bearings: Sleeve<br /> Hz: 60/50<br /> Phase: 1<br /> Amps: 0.11<br /> Fan RPM: 2900<br /> Depth: 1-1/2"<br /> Mounting Position: Vertical<br /> Motor Type: Shaded Pole<br /> Motor Insulation: Class A<br /> Thermal Protection: Impedance<br /> Max. Ambient Temp.: 158 Degrees F<br /> Blade Material: Polybutylene Terephthalate<br /> Housing Material: Cast Aluminum<br /> Housing Finish: Black Painted<br /> Requires: Cord Set (Not Included)<br /> Standards: RU E19455 AND CSA LR206189
