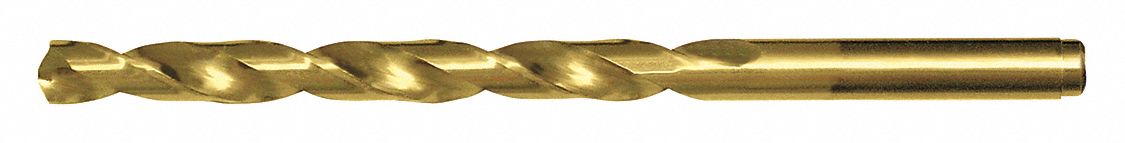

JOBBER DRILL,5.20MM,COBALT

CHICAGO-LATROBE . 550ASP-TN-47972

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCHICAGO-LATROBE
DimensionUnitmm
Extra Product NameJOBBER DRILL,5.20MM,COBALT
UNSPSC20111614
Weight0.292
WeightUnitlbs
diameter, height, width5.2
height_Attrib, width_AttribShank Dia.
length86.0
length_AttribOverall Length
moq, multiple, tierMinQty11
MPN550ASP-TN-47972
originalCurrency{'currency': 'CAD', 'tierPrice1': '10.73'}
qtyInStock, Number of Coolant Holes0
SKUGNF550ASPTN47972
tierPrice17.78789838
ItemJobber Length Drill Bit
Decimal Equivalent0.2047
Material - MachiningCobalt
Drill Bit Point Angle135 Degrees
Coolant FedNon-Coolant Through
Flute TypeSpiral
Flute Length52.00 mm
Helix Angle28 Degrees
Spiral Direction, Cutting DirectionRight Hand
Shank Dia5.2 mm
Overall Length86.00 mm
Drill Length ClassJobber Length
Drill Bit GroupingIndividual
StandardsDIN 338
Double MarginNo
Web ConstructionTapered
Material Grade - MachiningM35
Primary Material Application ISO CodeM, P, S
Drill Bit Size5.20 mm
Measurement SystemMetric
Finish - MachiningTiN
Drill Bit Point TypeSplit Point
Number of Flutes2
Maximum Drilling Depth13/16 in
Shank Type - MachiningStraight
Shank Length34 mm
Depth:Dia Ratio4xD
Drill Point Length0.0424mm
Series550ASP-TN
Aircraft DrillYes
Drill Diameter Tolerance+0.0000 in /-0.0007 in
Web ThinningWeb-Thinned
Primary Material ApplicationStainless Steel, Steel, Titanium
