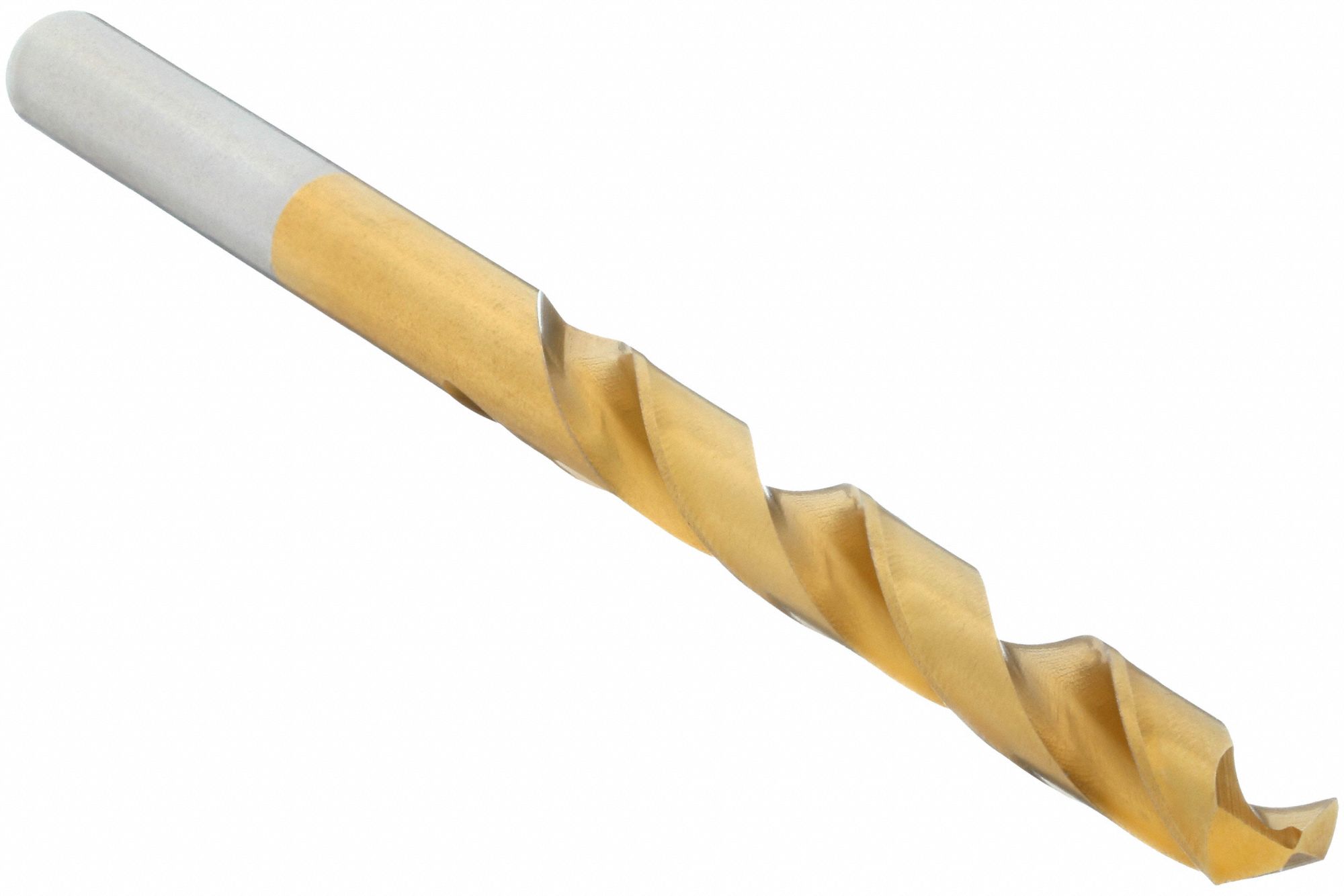

JOBBER DRILL,4.90MM,COBALT

CHICAGO-LATROBE . 550ASP-TN-47969

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCHICAGO-LATROBE
DimensionUnitmm
Extra Product NameJOBBER DRILL,4.90MM,COBALT
UNSPSC20111614
Weight0.265
WeightUnitlbs
diameter, height, width4.9
height_Attrib, width_AttribShank Dia.
length86.0
length_AttribOverall Length
moq, multiple, tierMinQty11
MPN550ASP-TN-47969
originalCurrency{'currency': 'CAD', 'tierPrice1': '10.31'}
qtyInStock, Number of Coolant Holes0
SKUGNF550ASPTN47969
tierPrice17.48305986
ItemJobber Length Drill Bit
Decimal Equivalent0.1929 in
Material - MachiningCobalt
Drill Bit Point Angle135 Degrees
Coolant FedNon-Coolant Through
Flute TypeSpiral
Flute Length52.00 mm
Helix Angle28 Degrees
Spiral Direction, Cutting DirectionRight Hand
Shank Dia4.9 mm
Overall Length86.00 mm
Drill Length ClassJobber Length
Drill Bit GroupingIndividual
StandardsDIN 338
Double Margin, Sheeter DrillNo
Web ThinningWeb-Thinned
Primary Material ApplicationStainless Steel, Steel, Titanium
List Number, Series550ASP-TN
Drill Bit Size4.90 mm
Measurement SystemMetric
Finish - MachiningTiN
Drill Bit Point TypeSplit Point
Number of Flutes2
Maximum Drilling Depth49/64 in
Shank Type - MachiningStraight
Shank Length34 mm
Depth:Dia Ratio4xD
Drill Point Length0.04 mm
Aircraft DrillYes
Drill Diameter Tolerance+0.0000 in/-0.0007 in
Web ConstructionTapered
Material Grade - MachiningM35
Primary Material Application ISO CodeM, P, S
