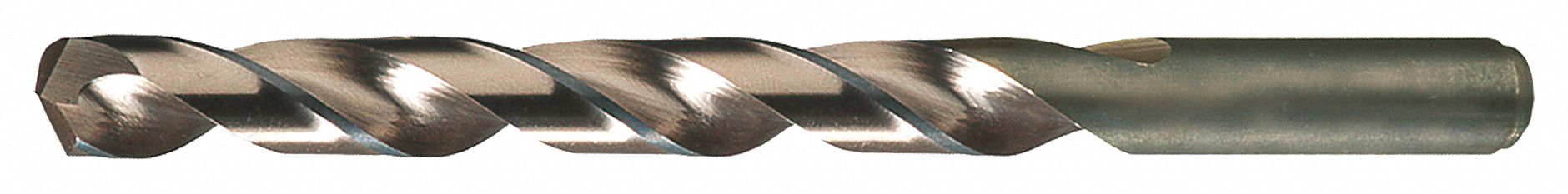

DRILL JBR HVY DTY NS 907 TP 3.7MM

CHICAGO-LATROBE . 550-46463

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCHICAGO-LATROBE
DimensionUnitmm
Extra Product NameDRILL JBR HVY DTY NS 907 TP 3.7MM
UNSPSC20111614
Weight1.0
WeightUnitlbs
diameter, height, width3.7
height_Attrib, width_AttribShank Dia.
length70.0
length_AttribOverall Length
moq, multiple, tierMinQty11
MPN550-46463
originalCurrency{'currency': 'CAD', 'tierPrice1': '4.05'}
qtyInStock0
SKUGNF550-46463
tierPrice12.9395142999999995
ItemJobber Length Drill Bit
Decimal Equivalent0.1457
Material - MachiningCobalt
Drill Bit Point Angle135 Degrees
Coolant FedNon-Coolant Through
Number of Flutes2
Maximum Drilling Depth37/64 in
Cutting Direction, Spiral DirectionRight Hand
Shank Type - MachiningStraight
Shank Length31 mm
Depth:Dia Ratio4xD
Drill Point Length0.0302mm
Series550
Aircraft DrillYes
Material Grade - MachiningM42
Primary Material Application ISO CodeM, P, S
Drill Bit Size3.70 mm
Measurement SystemMetric
Finish - MachiningStraw/Bronze
Drill Bit Point TypeSplit Point
Flute TypeSpiral
Flute Length39.00 mm
Helix Angle28 Degrees
Shank Dia3.7 mm
Overall Length70.00 mm
Drill Length ClassJobber Length
Drill Bit GroupingIndividual
StandardsDIN 338, NAS 907 Type J
Drill Diameter Tolerance+0.0000 in /-0.0007 in
Primary Material ApplicationStainless Steel, Steel, Titanium, Tool and Die Steel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caGNF550-46463111 @ $2.94
