| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 439K12 | 1 | 1 | ||
 Zoro | G2993258 | 1 | 98 | 1 | 1 @ $18.10 |
| 51821 | 1 | 1 | 1 @ $12.53 | ||
 Global Industrial | WBB2543349 | 1 | -2 | 1 | 1 @ $79.50 |
 simsupply.com | ZO-G2993258 | 1 | 26 | 1 | 1 @ $27.86 |
| 51821 | 8 | -2 | 6 | 1 @ $12.53 | |
 usmegastore.com | 51821 | 1 | -2 | 1 | 1 @ $14.04 |
 MRO Supply | 6130940 | 1 | 1 | 1 @ $12.32 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

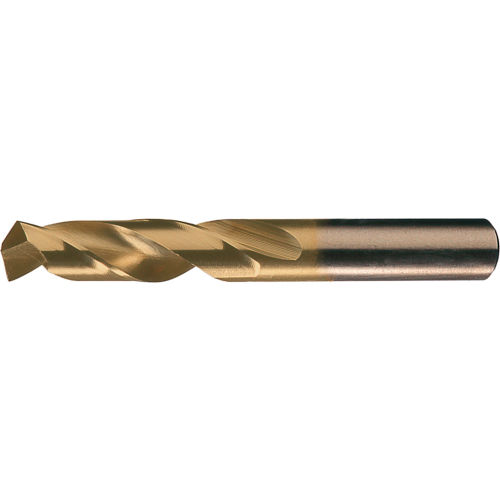

Chicago Latrobe 559 Series Cobalt Steel Short Length Drill Bit, TiN Coated, Round Shank, 135 Degree Split Point, 3/8 Size, 6-Pack
Brand: Chicago Latrobe
Details
- Manufactured from premium 8% cobalt M42 high-speed steel increasing red hardness and extending drill wear life
- 135 degree split point is self-centering for reduced thrust and easier penetration
- Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
- TiN finishes standard from stock and alternate coatings are available as stock modifications
- Made in the USA
3/8
Brand: Chicago Latrobe
'Screw Machine Drill Bit, Fractional Inch, Drill Bit Size 3/8 In., Decimal Equivalent 0.3750, Drill Bit Point Angle 135 Degrees , Drill Bit Material Cobalt Steel, Drill Bit Finish TiN, Shank Type Straight'
Details
- <b>Price For:</b> Each <b>Overall Length</b>: 3-1/8" <b>Standards</b>: ANSI <b>Decimal Equivalent</b>: 0.3750 <b>Number of Pieces</b>: 0 <b>List Number</b>: 559-TN <b>Grade</b>: Heavy Duty <b>Bit Dia.</b>: 3/8" <b>Drilling Length</b>: 1-13/16" <b>Drill Bit Size</b>: 3/8" <b>Drill Bit Finish</b>: TiN <b>Drill Bit Point Angle</b>: 135 Degrees <b>Shank Shape</b>: Straight <b>Coolant Through</b>: No <b>Drill Bit Material</b>: Cobalt <b>Sizes Included</b>: 3/8"
- <b>Shank Dia.</b>: 3/8" <b>Drill Bit Grouping</b>: Drill Bit <b>Item</b>: Screw Machine Drill Bit <b>Flute Type</b>: Spiral <b>Drill Bit Dimension Type</b>: Fractional Inch <b>Shank Type</b>: Straight <b>Number of Flutes</b>: 2 <b>Cutting Direction</b>: Right Hand <b>Point Type</b>: Split <b>Application</b>: For Drilling Carbon Steel, Cast Iron, Tool Steel <b>Flute Length</b>: 1-13/16" <b>Shank Size</b>: 3/8" <b>Depth x Dia. Ratio</b>: 4xD <b>Coolant Fed</b>: Non-Coolant Through
- <b>Depth:Dia. Ratio</b>: 4xD <b>Series</b>: 559-TN <b>Finish - Machining</b>: TiN <b>Material Grade - Machining</b>: M42 <b>Shank Length</b>: 1-5/16" <b>Primary Material Application ISO Code</b>: K, P <b>Spiral Direction</b>: Right Hand <b>Drill Point Length</b>: 0.0777" <b>Drill Length Class</b>: Screw Machine Length <b>Drill Diameter Tolerance</b>: +0.0000"/-0.0010" <b>Material - Machining</b>: Cobalt
- <b>Primary Material Application</b>: Alloy Steel, Carbon Steel, Cast Iron, Hardened Steel, Steel, Tool Steel <b>Maximum Drilling Depth</b>: 1-13/16" <b>Shank Type - Machining</b>: Straight <b>Drill Bit Point Type</b>: Split Point <b>Helix Angle</b>: 28 Degrees <b>Measurement System</b>: Fractional Inch <b>Country of Origin (subject to change)</b>: United States
Listing
| Product group | BISS Basic |
|---|---|
| Product type | DRILL_BITS |
| Part number | 51821 |
| Items per pack | 1 |
| Label | CHICAGO-LATROBE |
| Manufacturer | CHICAGO-LATROBE |
Chicago-Latrobe 51821 559-TN/2559 Heavy Duty Screw Machine Drill, 3/8 in Drill - Fraction, 0.375 in Drill - Decimal Inch, M42 HSS-Co 8, TiN Coated (6 Each)
Brand: Chicago Latrobe
Chicago-Latrobe Screw Machine Drill, Heavy Duty, Series: 559-TN/2559, Imperial, 3/8 in Drill - Fraction, 0.375 in Drill - Decimal Inch, 3-1/8 in Overall Length, 1-13/16 in Cutting Depth, 2 Flutes, Right Spiral Flute, 1-13/16 in Flute Length, 3/8 in Dia x 1-5/16 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, TiN Coated, Applicable Materials: Carbon Steel, Cast Iron and Tool Steel
