| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 439K06 | 1 | 1 | ||
 Zoro | G2993212 | 1 | 33 | 1 | 1 @ $8.65 |
| 51815 | 1 | 1 | 1 @ $7.61 | ||
| WBB2543208 | 1 | -2 | 1 | 1 @ $96.00 | |
| sustainablesupply.com | C2764528 | 1 | -2 | 1 | 1 @ $9.09 |
| 51815 | 14 | -2 | 12 | 1 @ $7.61 | |
 MRO Supply | 6130934 | 1 | 1 | 1 @ $7.52 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

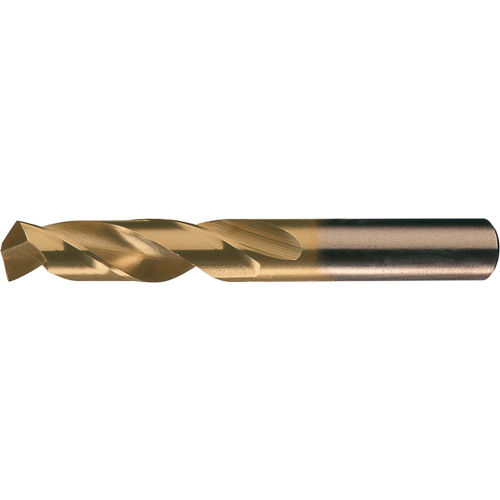

Chicago Latrobe 559 Series Cobalt Steel Short Length Drill Bit, TiN Coated, Round Shank, 135 Degree Split Point, 9/32 Size, (Pack of 12)
Brand: Chicago Latrobe
Details
- Manufactured from premium 8% cobalt M42 high-speed steel increasing red hardness and extending drill wear life
- 135 degree split point is self-centering for reduced thrust and easier penetration
- Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
- TiN finishes standard from stock and alternate coatings are available as stock modifications
- Made in the USA
Chicago Latrobe 559 Series Cobalt Steel Short Length Drill Bit, TiN Coated, Round Shank, 135 Degree Split Point, 9/32 Size, (Pack of 1)
Brand: Chicago Latrobe
Details
- Manufactured from premium 8% cobalt M42 high-speed steel increasing red hardness and extending drill wear life^135 degree split point is self-centering for reduced thrust and easier penetration^Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates^TiN finishes standard from stock and alternate coatings are available as stock modifications
Cobalt TiN 135 Deg. Jobber Length Drill Bit (2 Pieces)
Brand: Chicago Latrobe
'Screw Machine Drill Bit, Fractional Inch, Drill Bit Size 9/32 In., Decimal Equivalent 0.2812, Drill Bit Point Angle 135 Degrees , Drill Bit Material Cobalt Steel, Drill Bit Finish TiN, Shank Type Straight'
Details
- <b>Price For:</b> Pack of 2 <b>Grade</b>: Heavy Duty <b>Point Type</b>: Split <b>Item</b>: Screw Machine Drill Bit <b>Overall Length</b>: 2-11/16" <b>Cutting Direction</b>: Right Hand <b>Flute Type</b>: Spiral <b>Bit Dia.</b>: 9/32" <b>Sizes Included</b>: 9/32" <b>Shank Size</b>: 9/32" <b>Drill Bit Size</b>: 9/32" <b>Shank Shape</b>: Straight <b>Drill Bit Grouping</b>: Drill Bit <b>Coolant Through</b>: No <b>Number of Pieces</b>: 0
- <b>Drill Bit Point Angle</b>: 135 Degrees <b>Flute Length</b>: 1-1/2" <b>Drilling Length</b>: 1-1/2" <b>Application</b>: For Drilling Carbon Steel, Cast Iron, Tool Steel <b>Shank Type</b>: Straight <b>List Number</b>: 559-TN <b>Decimal Equivalent</b>: 0.2812 <b>Shank Dia.</b>: 9/32" <b>Drill Bit Dimension Type</b>: Fractional Inch <b>Drill Bit Finish</b>: TiN <b>Drill Bit Material</b>: Cobalt <b>Number of Flutes</b>: 2 <b>Standards</b>: ANSI <b>Depth x Dia. Ratio</b>: 4xD
- <b>Depth:Dia. Ratio</b>: 4xD <b>Coolant Fed</b>: Non-Coolant Through <b>Series</b>: 559-TN <b>Drill Bit Point Type</b>: Split Point <b>Drill Length Class</b>: Screw Machine Length <b>Shank Length</b>: 1-3/16" <b>Material Grade - Machining</b>: M42 <b>Spiral Direction</b>: Right Hand <b>Maximum Drilling Depth</b>: 1-1/2" <b>Shank Type - Machining</b>: Straight <b>Helix Angle</b>: 28 Degrees <b>Primary Material Application ISO Code</b>: K, P <b>Drill Point Length</b>: 0.0582"
- <b>Finish - Machining</b>: TiN <b>Measurement System</b>: Fractional Inch <b>Drill Diameter Tolerance</b>: +0.0000"/-0.0010" <b>Material - Machining</b>: Cobalt <b>Primary Material Application</b>: Alloy Steel, Carbon Steel, Cast Iron, Hardened Steel, Steel, Tool Steel <b>Country of Origin (subject to change)</b>: United States
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Part number | 51815 |
| Items per pack | 2 |
| Label | CHICAGO-LATROBE |
| Manufacturer | CHICAGO-LATROBE |
Greenfield 51815 559-TN CO HD SCR MACH 9/32 (51815) (12/Each)
Brand: Chicago Latrobe
GREENFIELD 51815 559-TN CO HD SCR MACH 9/32 (51815) (12/each)
