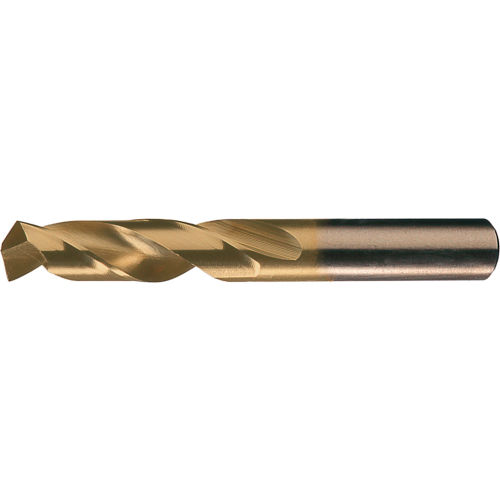

CHICAGO-LATROBE, 13/32 in Drill Bit Size, 1 15/16 in Flute Lg, Screw Machine Drill Bit - 439K14|51823 - Grainger

CHICAGO-LATROBE . 51823

Gallery

Attributes

Brand name, Manufacturer name, Label, Publisher, StudioCHICAGO-LATROBE
ManufacturerCHICAGO-LATROBE Greenfield
DimensionUnitinch
Hazmat, AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
Extra Product NameCHICAGO-LATROBE, 13/32 in Drill Bit Size, 1 15/16 in Flute Lg, Screw Machine Drill Bit - 439K14|51823 - Grainger
countryOfOrigin, Country of OriginUSA
diameter, height, width0.40625
height_Attrib, width_AttribShank Dia.
length3.3125
length_AttribOverall Length
moq, multiple, tierMinQty11
MPN, Mfr Model?, Mpns, PartNumber, Part_number, StrippedMpns51823
qtyInStock0
SKU, Item?439K14
tierPrice125.57
Catalog PageN/A
Drill Bit Size, Shank Dia, Size13/32 in
Decimal Equivalent0.4062
Measurement SystemFractional Inch
Material - MachiningCobalt
Finish - MachiningTiN
Drill Bit Point Angle135 ?
Drill Bit Point TypeSplit Point
Flute TypeSpiral
Number of Flutes2
Flute Length, Maximum Drilling Depth1-15/16 in
Helix Angle28 ?
Cutting Direction, Spiral DirectionRight Hand
Shank Type - MachiningStraight
Shank Length1-3/8 in
Overall Length3-5/16 in
Depth:Dia Ratio4xD
Drill Length ClassScrew Machine Length
Drill Point Length0.0841 in
Coolant FedNon-Coolant Through
StandardsANSI
Drill Diameter Tolerance+0.0000 in /-0.0010 in
Material Grade - MachiningM42
Primary Material ApplicationCast Iron; Steel; Tool and Die Steel
Primary Material Application ISO CodeK; P
UNSPSC27112801
ASINB08GZXG7XP
AsinB00462RHTU B08GZXG7XP B09TJPJP4H
BrandChicago Latrobe
Bullet_point135 degree split point is self-centering for reduced thrust and easier penetration <b>Coolant Fed</b>: Non-Coolant Through <b>Depth:Dia. Ratio</b>: 4xD <b>Series</b>: 559-TN <b>Primary Material Application</b>: Alloy Steel, Carbon Steel, Cast Iron, Hardened Steel, Steel, Tool Steel <b>Shank Type - Machining</b>: Straight <b>Drill Diameter Tolerance</b>: +0.0000"/-0.0010" <b>Material - Machining</b>: Cobalt <b>Measurement System</b>: Fractional Inch <b>Helix Angle</b>: 28 Degrees <b>Drill Length Class</b>: Screw Machine Length <b>Drill Bit Point Type</b>: Split Point <b>Decimal Equivalent</b>: 0.4062 <b>Drill Bit Size</b>: 13/32" <b>Drilling Length</b>: 1-15/16" <b>Shank Shape</b>: Straight <b>List Number</b>: 559-TN <b>Coolant Through</b>: No <b>Bit Dia.</b>: 13/32" <b>Drill Bit Finish</b>: TiN <b>Grade</b>: Heavy Duty <b>Point Type</b>: Split <b>Drill Bit Point Angle</b>: 135 Degrees <b>Number of Flutes</b>: 2 <b>Number of Pieces</b>: 0 <b>Cutting Direction</b>: Right Hand <b>Shank Size</b>: 13/32" <b>Depth x Dia. Ratio</b>: 4xD <b>Material Grade - Machining</b>: M42 <b>Finish - Machining</b>: TiN <b>Shank Length</b>: 1-3/8" <b>Spiral Direction</b>: Right Hand <b>Drill Point Length</b>: 0.0841" <b>Maximum Drilling Depth</b>: 1-15/16" <b>Primary Material Application ISO Code</b>: K, P <b>Country of Origin (subject to change)</b>: United States <b>Price For:</b> Pack of 6 <b>Item</b>: Screw Machine Drill Bit <b>Sizes Included</b>: 13/32" <b>Shank Dia.</b>: 13/32" <b>Drill Bit Material</b>: Cobalt <b>Flute Length</b>: 1-15/16" <b>Application</b>: For Drilling Carbon Steel, Cast Iron, Tool Steel <b>Drill Bit Grouping</b>: Drill Bit <b>Flute Type</b>: Spiral <b>Standards</b>: ANSI <b>Shank Type</b>: Straight <b>Drill Bit Dimension Type</b>: Fractional Inch <b>Overall Length</b>: 3-5/16" Made in the USA Manufactured from premium 8% cobalt M42 high-speed steel increasing red hardness and extending drill wear life Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates TiN finishes standard from stock and alternate coatings are available as stock modifications
ClassificationId256275011 552400 6001488011
CurrencyUSD
Cutting_angle_string135.0
DisplayNameCombination Drill & Taps Hex-Shank Drill Bits Jobber Drill Bits
Finish_typeTitanium Nitride
Height0.39 1000 1182 120 13 1500 193 2560 40 450 500 6 75 89
Identifier0662355518236 662355518236
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_name13/32 (6 Pieces) Chicago Latrobe 559 Series Cobalt Steel Short Length Drill Bit, TiN Coated, Round Shank, 135 Degree Split Point, 13/32 Size, 6-Pack Chicago-Latrobe 51823 559-TN/2559 Heavy Duty Screw Machine Drill, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, M42 HSS-Co 8, TiN Coated (6 Each)
Item_package_quantity, Number_of_items, PackageQuantity1 6
Item_package_weight0.06
Item_type_keywordcombination-drill-and-taps hex-shank-drill-bits jobber-drill-bits
Keyword33UW64 51823
Length0.39
Linkhttps://m.media-amazon.com/images/I/21IyuW-QQKL._SL75_.jpg https://m.media-amazon.com/images/I/21IyuW-QQKL.jpg https://m.media-amazon.com/images/I/21RbW12cjfL._SL75_.jpg https://m.media-amazon.com/images/I/21RbW12cjfL.jpg https://m.media-amazon.com/images/I/313QKlmm9vL.jpg https://m.media-amazon.com/images/I/31H4wEXIXEL._SL75_.jpg https://m.media-amazon.com/images/I/31H4wEXIXEL.jpg https://m.media-amazon.com/images/I/31S8DS099SL._SL75_.jpg https://m.media-amazon.com/images/I/31S8DS099SL.jpg https://m.media-amazon.com/images/I/31xzkjKRl2L._SL75_.jpg https://m.media-amazon.com/images/I/31xzkjKRl2L.jpg https://m.media-amazon.com/images/I/41tbSwD62qL.jpg https://m.media-amazon.com/images/I/51WRrVSQODL.jpg https://m.media-amazon.com/images/I/51XbloNrlNL.jpg https://m.media-amazon.com/images/I/51nQ4doI6dL._SL75_.jpg https://m.media-amazon.com/images/I/51nQ4doI6dL.jpg https://m.media-amazon.com/images/I/51vqQZhARvL._SL75_.jpg https://m.media-amazon.com/images/I/51vqQZhARvL.jpg https://m.media-amazon.com/images/I/812rriy-jKL.jpg https://m.media-amazon.com/images/I/91fKjGmsmRL.jpg
List_price149.76
MaterialAlloy Steel Carbon Steel Cobalt Cobalt Steel High Speed Steel
MaterialTypeAlloy Steel Carbon Steel Cobalt
Mfg_series_number559
NumberOfItems6
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductTypeDRILL_BITS
ProductTypeNameDRILL_BITS ELECTRONIC_COMPONENT
Product_description'Screw Machine Drill Bit, Drill Bit Size 13/32 In., Drill Bit Point Angle 135 Degrees , Split Point, Cobalt, TiN, Non-Coolant Through, Cutting Direction Right Hand, Decimal Equivalent 0.4062' Chicago-Latrobe Screw Machine Drill, Heavy Duty, Series: 559-TN/2559, Imperial, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 3-5/16 in Overall Length, 1-15/16 in Cutting Depth, 2 Flutes, Right Spiral Flute, 1-15/16 in Flute Length, 13/32 in Dia x 1-3/8 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, TiN Coated, Applicable Materials: Carbon Steel, Cast Iron and Tool Steel
Product_site_launch_date2010-10-06T00:00:01-07:00 2018-02-27T16:11:27.558Z 2022-03-27T01:03:35.211Z
String_value0.4062 1-15/16 13/32 3-5/16
Styleshort length
Surface_recommendationAlloy Steel
Title13/32 (6 Pieces)
TypeRound Spiral Straight drill bit ean upc
URLhttps://m.media-amazon.com/images/I/31xzkjKRl2L._SL75_.jpg
Unitdegrees inches kilograms pounds
Unit_count6.0
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04
WebsiteDisplayGroupbiss_basic_display_on_website
Weight0.1322773572
Width0.39 1000 1083 1179 1429 1500 1708 334 450 476 499 50 500 71 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Grainger439K14111 @ $25.57
ZoroG2993282661 @ $20.98
Megadepot51823111 @ $15.30
Global IndustrialWBB25433511-211 @ $97.50
heavydutydepot.com51823761 @ $15.30
usmegastore.com518231Contact Us11 @ $18.23
MRO Supply6130942111 @ $15.15

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Chicago Latrobe 559 Series Cobalt Steel Short Length Drill Bit, TiN Coated, Round Shank, 135 Degree Split Point, 13/32 Size, 6-Pack
Brand: Chicago Latrobe
Details
  • Manufactured from premium 8% cobalt M42 high-speed steel increasing red hardness and extending drill wear life
  • 135 degree split point is self-centering for reduced thrust and easier penetration
  • Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
  • TiN finishes standard from stock and alternate coatings are available as stock modifications
  • Made in the USA
View on Amazon (paid link)
13/32 (6 Pieces)
Brand: Chicago Latrobe
'Screw Machine Drill Bit, Drill Bit Size 13/32 In., Drill Bit Point Angle 135 Degrees , Split Point, Cobalt, TiN, Non-Coolant Through, Cutting Direction Right Hand, Decimal Equivalent 0.4062'
Details
  • <b>Price For:</b> Pack of 6 <b>Item</b>: Screw Machine Drill Bit <b>Sizes Included</b>: 13/32" <b>Shank Dia.</b>: 13/32" <b>Drill Bit Material</b>: Cobalt <b>Flute Length</b>: 1-15/16" <b>Application</b>: For Drilling Carbon Steel, Cast Iron, Tool Steel <b>Drill Bit Grouping</b>: Drill Bit <b>Flute Type</b>: Spiral <b>Standards</b>: ANSI <b>Shank Type</b>: Straight <b>Drill Bit Dimension Type</b>: Fractional Inch <b>Overall Length</b>: 3-5/16"
  • <b>Decimal Equivalent</b>: 0.4062 <b>Drill Bit Size</b>: 13/32" <b>Drilling Length</b>: 1-15/16" <b>Shank Shape</b>: Straight <b>List Number</b>: 559-TN <b>Coolant Through</b>: No <b>Bit Dia.</b>: 13/32" <b>Drill Bit Finish</b>: TiN <b>Grade</b>: Heavy Duty <b>Point Type</b>: Split <b>Drill Bit Point Angle</b>: 135 Degrees <b>Number of Flutes</b>: 2 <b>Number of Pieces</b>: 0 <b>Cutting Direction</b>: Right Hand <b>Shank Size</b>: 13/32" <b>Depth x Dia. Ratio</b>: 4xD
  • <b>Coolant Fed</b>: Non-Coolant Through <b>Depth:Dia. Ratio</b>: 4xD <b>Series</b>: 559-TN <b>Primary Material Application</b>: Alloy Steel, Carbon Steel, Cast Iron, Hardened Steel, Steel, Tool Steel <b>Shank Type - Machining</b>: Straight <b>Drill Diameter Tolerance</b>: +0.0000"/-0.0010" <b>Material - Machining</b>: Cobalt <b>Measurement System</b>: Fractional Inch <b>Helix Angle</b>: 28 Degrees <b>Drill Length Class</b>: Screw Machine Length <b>Drill Bit Point Type</b>: Split Point
  • <b>Material Grade - Machining</b>: M42 <b>Finish - Machining</b>: TiN <b>Shank Length</b>: 1-3/8" <b>Spiral Direction</b>: Right Hand <b>Drill Point Length</b>: 0.0841" <b>Maximum Drilling Depth</b>: 1-15/16" <b>Primary Material Application ISO Code</b>: K, P <b>Country of Origin (subject to change)</b>: United States
Listing
Product groupBISS Basic
Product typeELECTRONIC_COMPONENT
Part number51823
Items per pack6
LabelCHICAGO-LATROBE
ManufacturerCHICAGO-LATROBE
View on Amazon (paid link)
Chicago-Latrobe 51823 559-TN/2559 Heavy Duty Screw Machine Drill, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, M42 HSS-Co 8, TiN Coated (6 Each)
Brand: Chicago Latrobe
Chicago-Latrobe Screw Machine Drill, Heavy Duty, Series: 559-TN/2559, Imperial, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 3-5/16 in Overall Length, 1-15/16 in Cutting Depth, 2 Flutes, Right Spiral Flute, 1-15/16 in Flute Length, 13/32 in Dia x 1-3/8 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, TiN Coated, Applicable Materials: Carbon Steel, Cast Iron and Tool Steel
