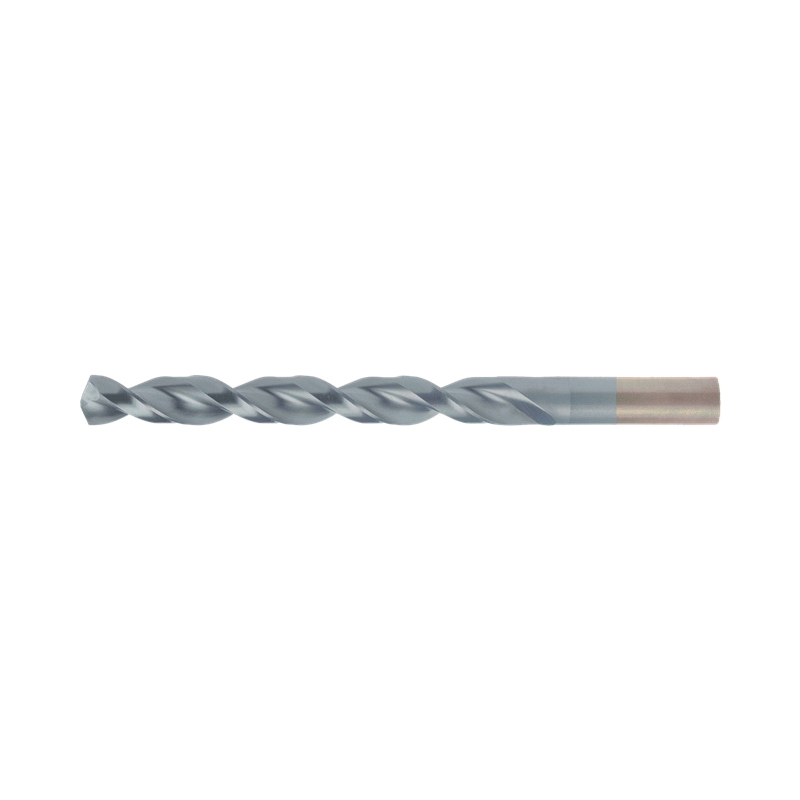

CHICAGO-LATROBE, P Drill Bit Size, 3 5/16 in Flute Lg, Jobber Length Drill Bit - 434A98|42186 - Grainger

CHICAGO-LATROBE . 42186

Gallery

Attributes

Brand name, Manufacturer nameCHICAGO-LATROBE
ManufacturerCHICAGO-LATROBE Greenfield Greenfield Industries
CategoryL2Drilling & Holemaking
DimensionUnitinch
Hazmat, AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
Extra Product NameCHICAGO-LATROBE, P Drill Bit Size, 3 5/16 in Flute Lg, Jobber Length Drill Bit - 434A98|42186 - Grainger
countryOfOrigin, Country of OriginUSA
length4.625
length_AttribOverall Length
moq, multiple, tierMinQty11
MPN, Mfr Model?, Keyword, ModelNumber, Model_number, Mpns, PartNumber, Part_number, StrippedMpns42186
qtyInStock0
SKU, Item?434A98
tierPrice127.87
Catalog PageN/A
Drill Bit Size, Primary Material Application ISO Code, SizeP
Decimal Equivalent0.323
Measurement SystemLetter
Material - MachiningHigh Speed Steel
Finish - MachiningTiCN
Drill Bit Point Angle135 ?
Drill Bit Point TypeSplit Point
Coolant FedNon-Coolant Through
Flute TypeSpiral
Number of Flutes2
Flute Length3-5/16 in
Helix Angle40?
Cutting Direction, Spiral DirectionRight Hand
Shank Type - MachiningStraight
Shank Length1-5/16 in
Overall Length4-5/8 in
Depth:Dia Ratio8xD
Drill Length ClassJobber Length
Drill Point Length0.0000 in
StandardsANSI
Drill Diameter Tolerance+0.0000 in /-0.0010 in
Material Grade - MachiningHigh Performance
Primary Material ApplicationSteel; Tool and Die Steel
Series150WLP-TC
Maximum Drilling Depth2-37/64 in
UNSPSC27112801
AsinB004MYGXG0 B09TJQMWKV
BrandChicago Latrobe
Bullet_pointHigh-speed steel (HSS) provides hardness for wear resistance Made in the USA Parabolic jobber length drill bit has a long reach for deep drilling applications Self-centering 135-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge Titanium carbon nitride (TiCN) coating is harder than TiN for better wear resistance and is recommended when drilling ferrous and nonferrous materials Wide parabolic flutes increase coolant flow and chip evacuation, and are stronger and more rigid than standard parabolic flutes for deep drilling in difficult-to-machine materials
ClassificationId256275011 6001488011
CurrencyUSD
Cutting_angle_string135.0
DisplayNameCombination Drill & Taps Jobber Drill Bits
Finish_typeTitanium Carbon Nitride
Height0.399999999592 1.016 1267 13 1484 289 372 379 43 494 500 600 74 75 85 86
Identifier00662355421864 0662355421864 662355421864
IdentifierTypeEAN GTIN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameChicago Latrobe 150WLPN High-Speed Steel Jobber Length Drill Bit, TiCN Coated, Round Shank, Wide Parabolic Flute, 135 Degree Notched Point, Letter Size P (Pack of 6) Chicago-Latrobe 42186 150WLP-TC Jobber Length Drill Bit, P Drill - Letter, 0.323 in Drill - Decimal Inch, 135 deg Point, HSS, TiCN Coated (Each)
Item_package_quantity, Number_of_items, PackageQuantity1 6
Item_package_weight, Weight0.5
Item_type_keywordcombination-drill-and-taps jobber-drill-bits
Length15.24 5.99999999388
Linkhttps://m.media-amazon.com/images/I/315pF-Ls6RL._SL75_.jpg https://m.media-amazon.com/images/I/315pF-Ls6RL.jpg https://m.media-amazon.com/images/I/31SERxDTw6L._SL75_.jpg https://m.media-amazon.com/images/I/31SERxDTw6L.jpg https://m.media-amazon.com/images/I/31nn+e0MvZL._SL75_.jpg https://m.media-amazon.com/images/I/31nn+e0MvZL.jpg https://m.media-amazon.com/images/I/31tCxCRslbL._SL75_.jpg https://m.media-amazon.com/images/I/31tCxCRslbL.jpg https://m.media-amazon.com/images/I/4193zdzArXL._SL75_.jpg https://m.media-amazon.com/images/I/4193zdzArXL.jpg https://m.media-amazon.com/images/I/41u4Lo8tO+L._SL75_.jpg https://m.media-amazon.com/images/I/41u4Lo8tO+L.jpg https://m.media-amazon.com/images/I/61SyK3MEHjL.jpg https://m.media-amazon.com/images/I/71OcNbwDu6L.jpg https://m.media-amazon.com/images/I/71YNSycAzdL.jpg https://m.media-amazon.com/images/I/71tsJo6pTLL.jpg https://www.amazon.com/gp/bestsellers/hi https://www.amazon.com/gp/bestsellers/hi/256275011
List_price153.96
MaterialAlloy Steel Carbon Steel High Speed Steel
Mfg_series_number150WLPN
ParentAsinsB006O2RWJU
ProductTypeDRILL_BITS
Product_descriptionChicago-Latrobe Jobber Length Drill Bit, Series: 150WLP-TC, Imperial, P Drill - Letter, 0.323 in Drill - Decimal Inch, 4-5/8 in Overall Length, 7XD Cutting Depth, 2 Flutes, Wide Land Parabolic Flute, 3-5/16 in Flute Length, 0.323 in Dia x 1.3125 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiCN Coated, Applicable Materials: Alloy Steel, Carbon Steel, Free Machining Steel and Tool Steel
Product_site_launch_date2011-02-09T08:00:01.000Z 2023-11-02T05:03:24.632Z
Rank2259951 7967
String_value3-5/16
Surface_recommendationAlloy Steel
TitleJobber Drill Bits Tools & Home Improvement
TypeCount Parabolic Round Straight VARIATION ean gtin upc
Unitcentimeters degrees inches pounds
Unit_count1.0 6.0
VariantMAIN PT01 PT02 PT03 PT04
WebsiteDisplayGroupbiss_basic_display_on_website home_improvement_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width10.16 1220 1501 2165 2218 3.99999999592 481 500 600 72 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Grainger434A98111 @ $27.87
ZoroG28201391811 @ $19.49
Megadepot4218611
sustainablesupply.comC27649581-211 @ $24.79
Guardian837185511-211 @ $34.64
heavydutydepot.com42186711 @ $14.83
steinerelectric.com194337111 @ $28.79
usmegastore.com421861Contact Us11 @ $14.83
National Supply Network837185516-261 @ $27.48
MRO Supply6127806111 @ $14.27

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Chicago Latrobe 150WLPN High-Speed Steel Jobber Length Drill Bit, TiCN Coated, Round Shank, Wide Parabolic Flute, 135 Degree Notched Point, Letter Size P (Pack of 6)
Brand: Chicago Latrobe
Details
  • Parabolic jobber length drill bit has a long reach for deep drilling applications
  • High-speed steel (HSS) provides hardness for wear resistance
  • Titanium carbon nitride (TiCN) coating is harder than TiN for better wear resistance and is recommended when drilling ferrous and nonferrous materials
  • Self-centering 135-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge
  • Wide parabolic flutes increase coolant flow and chip evacuation, and are stronger and more rigid than standard parabolic flutes for deep drilling in difficult-to-machine materials
  • Made in the USA
View on Amazon (paid link)
Chicago-Latrobe 42186 150WLP-TC Jobber Length Drill Bit, P Drill - Letter, 0.323 in Drill - Decimal Inch, 135 deg Point, HSS, TiCN Coated (Each)
Brand: Chicago Latrobe
Chicago-Latrobe Jobber Length Drill Bit, Series: 150WLP-TC, Imperial, P Drill - Letter, 0.323 in Drill - Decimal Inch, 4-5/8 in Overall Length, 7XD Cutting Depth, 2 Flutes, Wide Land Parabolic Flute, 3-5/16 in Flute Length, 0.323 in Dia x 1.3125 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiCN Coated, Applicable Materials: Alloy Steel, Carbon Steel, Free Machining Steel and Tool Steel
